Fuel Tank 01/02 ((GEN)>(2WD)) 02/02 ((GEN)>(4WD))(G.C.C.)

Fuel Tank |

Mazda parts catalog

Parts > Mazda 323 > 1987-04 > Chassis Piping & Fuel Tank > Fuel Tank

Search by part number:

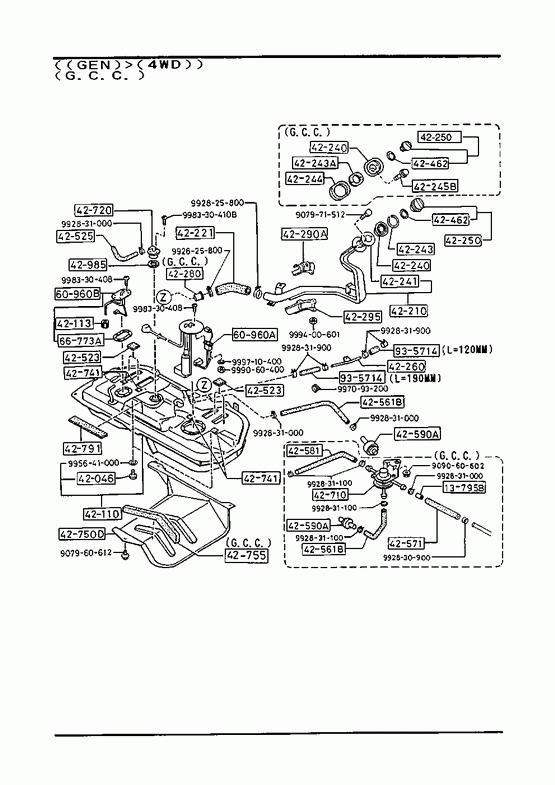

Fuel Tank(gasoline)(egi)

01/02 ((GEN)>(2WD))
02/02 ((GEN)>(4WD))(G.C.C.)

INSERT

Part Number	Qty.	Specifications	Price
111413795	1	G.C.C.

» 42046

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
BC8842045	2	(GEN>4WD) G.C.C.	€ 2,25

» 42110

TANK,FUEL

Part Number	Qty.	Specifications	Price
B21242110B	1	A (B212-42-110C) (GEN>4WD) W/WARN. LAMP.EXC.ALCOHOL - 870701 *BF102 -101299**
B21242110C	1	AN (B212-42-110D) (GEN>4WD) W/WARN. LAMP.EXC.ALCOHOL 870701 - *BF102101299-**
BM2842110	1	A (BM28-42-110B) (GEN>2WD) - 870601 *BF102 -100711**
BM2842110B	1	AN (BM28-42-110C) (GEN>2WD) 870601 - *BF102100711-**
BM7942110B	1	AN (BM79-42-110C) G.C.C. - 870821 *BF102 -102083**
BM7942110C	1	AN (BM79-42-110D) G.C.C. 870821 - *BF102102083-**
BN0342110B	1	AN (BN03-42-110C) W/WARN. LAMP.FOR ALCOHOL (GEN>4WD) 870728 - 870821 *BF102101745-102083**
BN0342110C	1	W/WARN. LAMP.FOR ALCOHOL (GEN>4WD) 870821 - *BF102102083-**	€ 284,81

» 42113

FILTER,FUEL TANK

Part Number	Qty.	Specifications	Price
B21042113A	1	(GEN>4WD) G.C.C.

» 42210

PIPE,FILLER

Part Number	Qty.	Specifications	Price
B09242210B	1	(GEN>2WD)	€ 77,13
B21042210A	1	(GEN>4WD)
BM7942210A	1	G.C.C.

» 42221

HOSE,FILLER

Part Number	Qty.	Specifications	Price
B09242241	1	AN (B092-42-241A) (GEN>2WD)	€ 32,00
B21042241	1	AN (B210-42-241A) (GEN>4WD)
BM7942240	1	G.C.C.

» 42240

COVER,DUST

Part Number	Qty.	Specifications	Price
B09242242	1	GEN	€ 8,24
BN0342242	1	AN (BN03-42-242A) G.C.C.

» 42241

GASKET,FILLER PIPE

Part Number	Qty.	Specifications	Price
086642366B	1	GEN	€ 2,91
BN0342366	1	G.C.C.

» 42243

RING,'O'-DUST COVER

Part Number	Qty.	Specifications	Price
B09242243	1	GEN	€ 1,20

» 42243A

GASKET'A',DUST COVER

Part Number	Qty.	Specifications	Price
BN0342243	1	G.C.C.

» 42244

GASKET'B',DUST COVER

Part Number	Qty.	Specifications	Price
BF7142244	1	G.C.C.	€ 13,75

» 42245B

BOLT,DUST COVER

Part Number	Qty.	Specifications	Price
BF7142245	4	G.C.C.

» 42250

CAP,FILLER

Part Number	Qty.	Specifications	Price
887142250B	1	(GEN>2WD)	€ 18,84
F04442250	1	A (F044-42-250A) (GEN>4WD) G.C.C.	€ 21,03

» 42260

PIPE,BREATHER

Part Number	Qty.	Specifications	Price
B21042270A	1	(GEN>4WD) G.C.C.	€ 18,58

» 42280

VALVE,NON RETURN

Part Number	Qty.	Specifications	Price
GB5342270	1	G.C.C.	€ 7,92

» 42290A

PROTECTOR'A',FILLER PIPE

Part Number	Qty.	Specifications	Price
B21042290A	1	(GEN>4WD) G.C.C.	€ 18,85

» 42295

PROTECTOR'B',FILLER PIPE

Part Number	Qty.	Specifications	Price
B21042295	1	(GEN>4WD) G.C.C.	€ 14,81

» 42462

GASKET,CAP

Part Number	Qty.	Specifications	Price
887142365	1	(GEN>2WD)	€ 3,46
BF6742252	1	(GEN>4WD) G.C.C.	€ 3,01

» 42523

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
853142762A	4	(GEN>4WD) G.C.C.	€ 1,36

» 42525

HOSE,VAPOR VALVE-TANK

Part Number	Qty.	Specifications	Price
B21042525	1	(GEN>4WD) G.C.C.	€ 4,88

» 42561B

HOSE,EVAPORATION

Part Number	Qty.	Specifications	Price
BL0942580	1	A (G217-42-580A) (GEN>4WD) - 880801 *BF102 -114053**
BM7942572A	1	G.C.C.
G21742580A	1	(GEN>4WD) 880801 - *BF102114053-**

» 42571

HOSE,VENT

Part Number	Qty.	Specifications	Price
BM7942561A	1	G.C.C.

» 42581

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
B18042580A	1	(GEN>2WD)	€ 22,23
BM7942571A	1	(G.C.C.>4WD)	€ 6,06

» 42590A

CHAMBER,EVAPO.-TANK BRKT

Part Number	Qty.	Specifications	Price
BL0942590	1	A (BL09-42-590A) (GEN>4WD) G.C.C.	€ 7,96

» 42710

VALVE,CHECK

Part Number	Qty.	Specifications	Price
BM7942910	1	A (BM79-42-910A) G.C.C. - 880601 *BF102 -106840**
BM7942910A	1	A (BM79-42-910B) G.C.C. 880601 - *BF102106840-**

» 42720

VALVE,FUEL VAPOR.

Part Number	Qty.	Specifications	Price
FB0142980	1	(GEN>4WD) G.C.C.	€ 23,88

» 42741

PROTECTOR,FUEL TANK

Part Number	Qty.	Specifications	Price
B21042741	4	(GEN>4WD) G.C.C.

» 42750D

INSULATOR,FUEL TANK

Part Number	Qty.	Specifications	Price
B21042750	1	(GEN>4WD) G.C.C.

» 42755

PAD,INSULATOR-FUEL TANK

Part Number	Qty.	Specifications	Price
BM7942755	1	G.C.C.

» 42791

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
G03042763	1		€ 3,17

» 42985

GASKET,VAPOR VALVE

Part Number	Qty.	Specifications	Price
FB0142985	1	(GEN>4WD) G.C.C.	€ 3,06

» 60960A

GAUGE,FUEL TANK

Part Number	Qty.	Specifications	Price
B21260960C	1	W/WARN. LAMP.EXC.ALCOHOL (GEN>4WD) G.C.C. 870728 - *BF102101745-**	€ 78,43
BL7860960A	1	W/WARN. LAMP.FOR ALCOHOL (GEN>2WD)	€ 81,06
BM2960960A	1	W/WARN. LAMP.EXC.ALCOHOL (GEN>2WD)
BM3960960	1	W/WARN. LAMP.FOR ALCOHOL (GEN>4WD) 870728 - *BF102101745-**	€ 79,03

» 60960B

GAUGE(R),FUEL TANK

Part Number	Qty.	Specifications	Price
B21060970D	1	(GEN>4WD) G.C.C.	€ 150,81

» 66773A

GASKET

Part Number	Qty.	Specifications	Price
B21060962	1	(GEN>4WD) G.C.C.	€ 7,03

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330408	1		€ 0,55

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330410B	1		€ 0,38

» 90780

BOLT

Part Number	Qty.	Specifications	Price
907960612	1		€ 2,61

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907971512	1		€ 0,70

» 90901

NUT

Part Number	Qty.	Specifications	Price
999060400	1		€ 0,40

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909060602	1		€ 0,48

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 935714

HOSE

Part Number	Qty.	Specifications	Price
9935714999	1	L=1M CUT IT TO USE	€ 34,85

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992825800	1		€ 2,49

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992830900	1		€ 1,48

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831100	1		€ 0,80

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831900	1		€ 1,88

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641000	1		€ 2,00

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710400	1		€ 0,39

Fuel Tank(gasoline)(egi)
