Mazda 323 BF 1987-04 Mazda Rear Differentials 01/02 (NORMAL DIFF.) 02/02 (OPTIONAL L.S.D.)

Mazda parts catalog

Parts > Mazda 323 > 1987-04 > Chassis Axle Suspension,brake & Steering > Rear Differentials(4wd)

Search by part number:

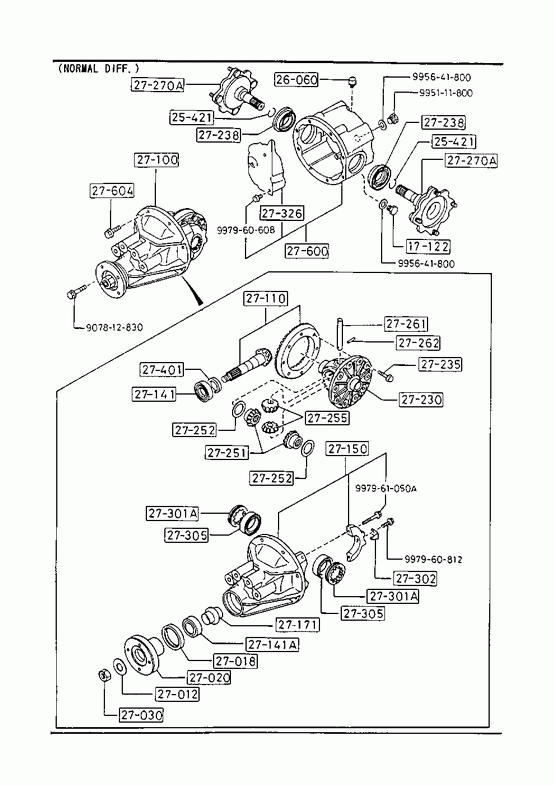

Rear Differentials(4wd)

01/02 (NORMAL DIFF.)
02/02 (OPTIONAL L.S.D.)

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 25421

CLIP

Part Number	Qty.	Specifications	Price
F00125421A	2		€ 1,45

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
391927012	1		€ 3,34

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
T00527165A	1		€ 12,72

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
T00527120D	1	AN (T005-27-120E)	€ 36,60

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
391927130	1		€ 2,06

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
T00627100A	1	A (T006-27-100B) NORMAL DIFF.	€ 791,09

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
395327110A	1	R=3.909	€ 436,28

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
075527210	1		€ 42,29

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
391927220	1	NTN MAKE	€ 34,63

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T00527150	1	A (T005-27-150A)

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
032427171	1	870501 - *BF102100311-**	€ 7,91
T00527171	1	AN (0324-27-171) - 870501 *BF102 -100311**

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
T00527231	1	NORMAL DIFF.	€ 156,68
T0Y127230	1	OPTIONAL L.S.D. 870701 - *BF102101299-**

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
391927235	8	D=10.2MM
391927236	8	D=10.0MM

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
T00527238A	2		€ 12,96

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
066227251A	2	AN (F035-27-251) NORMAL DIFF.	€ 28,90
T0Y127251	2	OPTIONAL L.S.D. 870701 - *BF102101299-**

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F00127252	2	T=2.0MM NORMAL DIFF.	€ 2,14
F00127253	2	T=2.1MM NORMAL DIFF.	€ 2,12
F00127254	2	T=2.2MM NORMAL DIFF.	€ 2,16

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
F00127255	2	A (F001-27-255A) NORMAL DIFF. - 880501 *BF102 -106489**	€ 23,10
F00127255A	2	AN (T020-27-255) NORMAL DIFF. 880501 - *BF102106489-**	€ 23,10
T0Y127255	4	OPTIONAL L.S.D. 870701 - *BF102101299-**

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
F00127261A	1	NORMAL DIFF.	€ 7,47
T0Y127261	1	OPTIONAL L.S.D. 870701 - *BF102101299-**

» 27262

Part Number	Qty.	Specifications	Price
011427262	1	NORMAL DIFF.	€ 1,96

» 27270A

SHAFT,OUTPUT

Part Number	Qty.	Specifications	Price
T00527270B	2		€ 84,23

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
018027301A	2	AN (0180-27-301B)	€ 3,50

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
029027302	2		€ 1,83

» 27305

BEARING

Part Number	Qty.	Specifications	Price
024927350	2		€ 45,62

» 27326

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
T00527690	1	A (T005-27-690A)	€ 4,15

» 27401

SPACER

Part Number	Qty.	Specifications	Price
025927401	1	T=3.08MM	€ 3,10
025927402	1	T=3.11MM	€ 3,37
025927403	1	T=3.14MM	€ 3,41
025927404	1	T=3.17MM	€ 3,10
025927405	1	T=3.2MM
025927406	1	T=3.23MM	€ 3,41
025927407	1	T=3.26MM	€ 2,49
025927408	1	T=3.29MM
025927409	1	T=3.32MM	€ 3,24
025927411	1	T=3.35MM	€ 2,98
025927412	1	T=3.38MM	€ 2,98
025927413	1	T=3.41MM	€ 2,98
025927414	1	T=3.44MM
025927415	1	T=3.47MM	€ 5,60

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
T00527600B	1	A (T005-27-600C) - 870801 *BF102 -101793**
T00527600C	1	AN (T005-27-600D) 870801 - *BF102101793-**

» 27604

BOLT

Part Number	Qty.	Specifications	Price
G0A027604A	2		€ 1,22

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830	1		€ 2,06

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960608	1		€ 0,40

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812	1		€ 1,47

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050A	1		€ 2,57

Rear Differentials(4wd)
