Mazda 323 BF 1987-04 Mazda Transmission Gears 01/02 (-9B01) 02/02 (9B01-)

Mazda parts catalog

Parts > Mazda 323 > 1987-04 > Gasoline-engine 4-cylinder Transmission > Transmission Gears(manual)(5-speed)(w/o Turbo)

Search by part number:

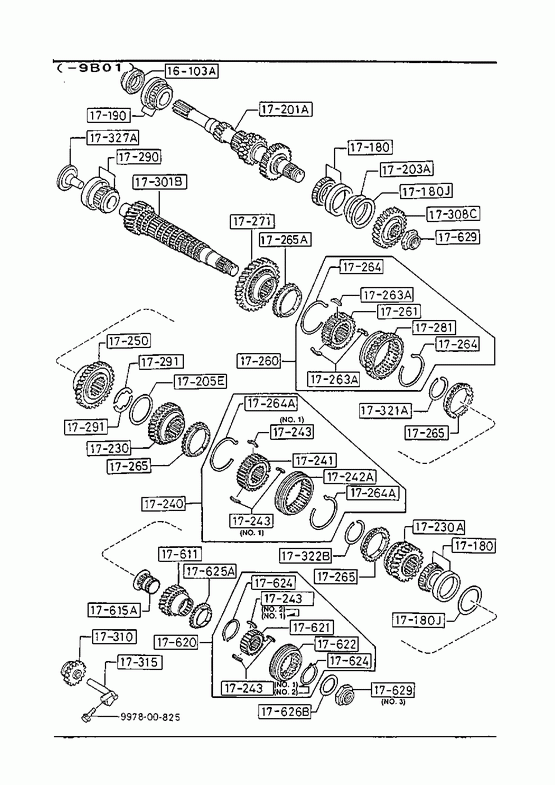

Transmission Gears(manual)(5-speed)(w/o Turbo)

01/02 (-9B01)
02/02 (9B01-)

SEAL,OIL

Part Number	Qty.	Specifications	Price
061316103	1		€ 7,63

» 17180

BEARING

Part Number	Qty.	Specifications	Price
F40117180	2	- 891101	€ 31,44
F52017181	1	KOYO OR NSK 891101 -	€ 46,60

» 17180J

SHIM

Part Number	Qty.	Specifications	Price
999635120	2	T=0.2MM - 891101	€ 2,22
999635125	2	T=0.25MM - 891101	€ 2,18
999635130	2	T=0.3MM - 891101	€ 2,22
999635135	2	T=0.35MM - 891101	€ 2,22
999635140	2	T=0.4MM - 891101	€ 2,07
999635145	2	T=0.45MM - 891101	€ 2,22
999635150	2	T=0.5MM - 891101	€ 2,07
999635155	2	T=0.55MM - 891101	€ 2,22

» 17190

BEARING,TAPER

Part Number	Qty.	Specifications	Price
F40117190	1	- 891101	€ 25,01

» 17201A

GEAR,PRIMARY SHAFT

Part Number	Qty.	Specifications	Price
F51217201A	1	- 891101	€ 208,43
F52117201B	1	891101 - 930817	€ 219,01
F52117201C	1	930817 - 931101	€ 210,51
F52117201D	1	A (F521-17-201E) 931101 - 970201	€ 210,51
F52117201E	1	A (F521-17-201F) 970201 -	€ 210,51

» 17203A

SPRING,DIAGHRAM

Part Number	Qty.	Specifications	Price
F40117203B	1	- 891101	€ 4,12

» 17205E

RING,RETAINING

Part Number	Qty.	Specifications	Price
F40117205	1	- 891101	€ 1,18

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
F40117231A	1	- 891101	€ 68,65
F52017231	1	A (F520-17-231A) 891101 - 950701	€ 69,34
F52017231A	1	AN (F520-17-231B) 950701 -	€ 69,34

» 17230A

GEAR,4TH

Part Number	Qty.	Specifications	Price
F40217211	1	- 891101	€ 77,43
F52217211A	1	AN (F522-17-211B) 891101 - 911201	€ 77,43
F52217211B	1	911201 - 930817	€ 77,43
F52217211C	1	A (F522-17-211D) 930817 -	€ 77,43

» 17240

HUB SET,CLUTCH-3RD & 4TH

Part Number	Qty.	Specifications	Price
F40117240B	1	- 891101	€ 83,14
F52017240	1	A (F520-17-240A) 891101 -	€ 79,39

» 17241

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F40117241	1	A (F401-17-241A)	€ 26,10

» 17242A

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F40117242A	1	- 891101	€ 43,46
F52017242	1	891101 -	€ 42,14

» 17243

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117243A	6	AN (F401-17-243C) ILLUST. NO.1 930817 - 960930	€ 3,12
F40117243B	6	AN (F401-17-243C) ILLUST. NO.1 960930 - 961001	€ 3,12
F40117243C	6	ILLUST. NO.1 961001 -	€ 3,24
F50117243	3	ILLUST. NO.2 - 930817	€ 3,18

» 17250

GEAR,2ND

Part Number	Qty.	Specifications	Price
F40317251	1	- 891101	€ 84,60
F52117251A	1	A (F521-17-251B) 891101 - 950801	€ 82,94
F52117251B	1	950801 -	€ 86,29

» 17260

HUB SET,CLUTCH-1ST & 2ND

Part Number	Qty.	Specifications	Price
F40117260H	1	A (F401-17-260J) - 891101	€ 107,26
F52117260A	1	A (F521-17-260B) 891101 - 910301	€ 108,55
F52117260B	1	AN (F521-17-260C) 910301 - 940201	€ 108,55
F52117260C	1	A (F521-17-260D) 940201 - 940323	€ 108,55
F52117260D	1	AN (F521-17-260E) 940323 - 940720	€ 108,55
F52117260E	1	A (F521-17-260F) 940720 - 950601	€ 108,55
F52117260F	1	C (F521-17-260G) 950601 -	€ 108,55

» 17261

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F40117261A	1	- 891101
F52117261	1	891101 -	€ 28,93

» 17263A

KEY,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117263A	3	- 960930	€ 2,92
F40117263B	3	AN (F401-17-263C) 960930 - 961001	€ 2,92
F40117263C	3	961001 -	€ 3,04

» 17264

SPRING,SYNCHRO. KEY

Part Number	Qty.	Specifications	Price
F40217264	2		€ 2,62

» 17264A

SPRING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117264A	2	A (F402-17-264)	€ 2,70

» 17265

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40117265A	3	- 891101	€ 20,30

» 17265A

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F40217265D	1	- 891101	€ 19,06

» 17271

GEAR,1ST

Part Number	Qty.	Specifications	Price
F40117271B	1	- 891101	€ 80,19
F52117271B	1	891101 -	€ 84,26

» 17281

GEAR,REVERSE

Part Number	Qty.	Specifications	Price
F40117281F	1	A (F401-17-281G) - 891101
F52017281A	1	A (F520-17-281B) 891101 - 910301
F52017281B	1	AN (F520-17-281C) 910301 - 940201	€ 67,10
F52017281C	1	A (F520-17-281D) 940201 - 940323	€ 67,10
F52017281D	1	AN (F520-17-281E) 940323 - 940720	€ 67,10
F52017281E	1	A (F520-17-281F) 940720 - 950601	€ 67,10
F52017281F	1	950601 -	€ 69,81

» 17290

BEARING,TAPER

Part Number	Qty.	Specifications	Price
F40117290	1	KOYO MAKE ILLUST. NO.1 - 950201	€ 36,01
F52017290	1	KOYO ILLUST. NO.2 891101 -	€ 39,20
F5D217290	1	NTN ILLUST. NO.1 950201 -	€ 39,20

» 17291

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F40117276	2	- 891101	€ 8,12

» 17301B

GEAR,SECOND.SHAFT

Part Number	Qty.	Specifications	Price
F50217301A	1	G.C.C.	€ 167,71
F50317301A	1	(GEN>LOW F.G.R.)
F50917301	1	COLOMBIA - 891101
F51317301	1	(GEN>STD F.G.R.)	€ 167,71
F52517301	1	COLOMBIA ECUADOR 891101 - 940101	€ 169,37
F5D417301	1	ECUADOR COLOMBIA 940101 -	€ 176,22

» 17308C

GEAR,PRIMARY 5TH

Part Number	Qty.	Specifications	Price
F50117308A	1	GASOLINE - 891101	€ 89,80
F50217308A	1	DIESEL	€ 88,04
F52117308	1	AN (F521-17-308A) GASOLINE 891101 - 921101	€ 86,31
F52117308A	1	GASOLINE 921101 - 930817	€ 86,31
F5D217308	1	A (F5D2-17-308A) GASOLINE 930817 - 950101	€ 86,31
F5D217308A	1	GASOLINE 950101 -	€ 89,80

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
F40117310A	1	- 891101	€ 60,39
F52017310B	1	A (F520-17-310C) 891101 - 910201	€ 58,05
F52017310C	1	A (F520-17-310D) 910201 - 950501	€ 58,05
F52017310D	1	950501 -	€ 60,39

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
F40117315B	1	- 890801
F40117315C	1	890801 - 891101
F52017315	1	A (F520-17-315A) 891101 - 940501
F52017315A	1	A (F520-17-315B) 940501 - 940618	€ 18,35
F52017315B	1	940618 -	€ 19,09

» 17321A

RING,RETAINING

Part Number	Qty.	Specifications	Price
F40117321	1	A (G401-17-322) ILLUST. NO.1	€ 4,37
G40117321	2	ILLUST. NO.2 891101 -	€ 4,32

» 17322B

RING,RETAINING

Part Number	Qty.	Specifications	Price
F40117322	1	- 891101	€ 3,94

» 17327A

FUNNEL

Part Number	Qty.	Specifications	Price
F40117327	1	AN (F5E0-17-327)	€ 3,46

» 17611

GEAR,OVER TOP

Part Number	Qty.	Specifications	Price
F50117611B	1	GASOLINE - 891101	€ 99,64
F50217611B	1	DIESEL	€ 97,69
F52117611	1	AN (F521-17-611A) GASOLINE 891101 - 921101	€ 95,77
F52117611A	1	GASOLINE 921101 - 930817	€ 99,64
F5D217611	1	A (F5D2-17-611A) GASOLINE 930817 - 940301	€ 95,77
F5D217611A	1	GASOLINE 940301 -	€ 99,64

» 17615A

SLEEVE,GEAR

Part Number	Qty.	Specifications	Price
F50117615A	1	- 930817	€ 32,57
F5D217615	1	930817 -	€ 32,57

» 17620

HUB,CLUTCH-5TH & REV.

Part Number	Qty.	Specifications	Price
F50117620C	1	AN (F501-17-620D) - 930817	€ 66,44
F5D217620	1	A (F5D2-17-620A) 930817 - 930901
F5D217620A	1	C (F5D3-17-620) 930901 - 931012
F5D317620	1	A (F5D3-17-620A) 931012 - 931222
F5D317620A	1	AN (F5D3-17-620B) 931222 - 940301	€ 67,10
F5D317620B	1	A (F5D3-17-620C) 940301 - 940323	€ 67,10
F5D317620C	1	A (F5D3-17-620D) 940323 -	€ 67,10

» 17621

HUB,CLUTCH

Part Number	Qty.	Specifications	Price
F50117621	1	- 930817	€ 18,40
F5D217621	1	A (F5D2-17-621A) 930817 - 931222	€ 18,40
F5D217621A	1	A (F5D2-17-621B) 931222 - 940323	€ 18,40
F5D217621B	1	A (F5D2-17-621C) 940323 -	€ 18,40

» 17622

SLEEVE,CLUTCH HUB

Part Number	Qty.	Specifications	Price
F50117622A	1	AN (F501-17-622D) - 940301	€ 36,57
F50117622D	1	AN (F501-17-622E) 940301 -	€ 36,57

» 17624

SPRING,SYNC.KEY

Part Number	Qty.	Specifications	Price
F50117624A	2		€ 2,56

» 17625A

RING,SYNCHRONIZER

Part Number	Qty.	Specifications	Price
F50117625	1		€ 19,25

» 17626B

PLATE,STOPPER

Part Number	Qty.	Specifications	Price
F50117626	1	A (F501-17-626A) - 930801	€ 2,01
F50117626A	1	930801 - 930817	€ 2,09

» 17629

NUT,LOCK-CLUTCH HUB

Part Number	Qty.	Specifications	Price
F50117628A	2	ILLUST. NO.1 - 890207 *BF102 -127584**	€ 14,85
F52017628	2	ILLUST. NO.1 890207 - 891101 *BF102127584-**	€ 13,29
F52117628	1	ILLUST. NO.2 891101 - 910901	€ 9,83
F52117628A	1	ILLUST. NO.2 910901 -	€ 10,23
F52Y17628	1	ILLUST. NO.3 930401 - 930817	€ 17,39
F5DY17629	1	A (F5DY-17-629A) ILLUST. NO.3 930817 - 940323	€ 9,26
F5DY17629A	1	ILLUST. NO.3 940323 -	€ 9,73

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800825	1		€ 1,55

Transmission Gears(manual)(5-speed)(w/o Turbo)
