Transmission Gears |
- Parts > Mazda 323 > 1987-04 > Gasoline-engine 4-cylinder Transmission > Transmission Gears
- Search by part number:
-

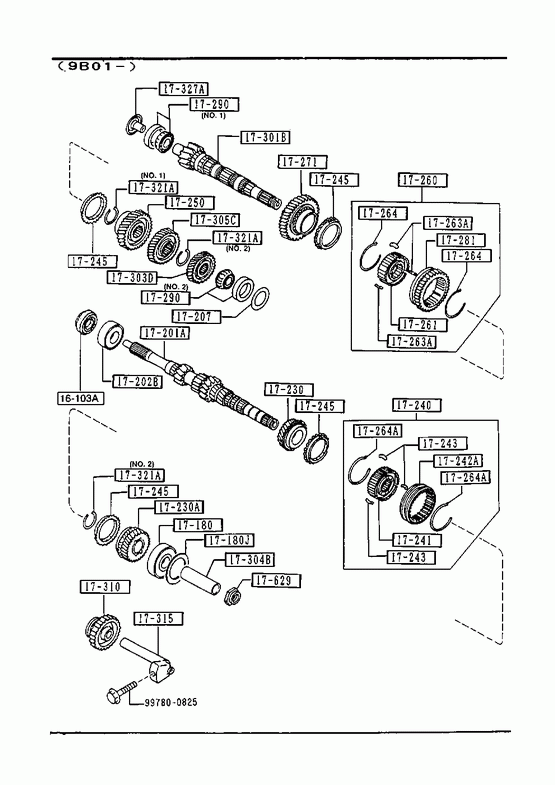

Transmission Gears(manual)(4-speed)
-
» 16103A SEAL,OIL Part Number Qty. Specifications Price 061316103 1 € 7,63 » 17180 BEARING Part Number Qty. Specifications Price F40117180 2 - 891101 € 31,44 F52017181 1 KOYO OR NSK
891101 -€ 46,60 » 17180J SHIM Part Number Qty. Specifications Price 999635120 2 T=0.2MM
- 891101€ 2,22 999635125 2 T=0.25MM
- 891101€ 2,18 999635130 2 T=0.3MM
- 891101€ 2,22 999635135 2 T=0.35MM
- 891101€ 2,22 999635140 2 T=0.4MM
- 891101€ 2,07 999635145 2 T=0.45MM
- 891101€ 2,22 999635150 2 T=0.5MM
- 891101€ 2,07 999635155 2 T=0.55MM
- 891101€ 2,22 » 17201A GEAR,PRIMARY SHAFT Part Number Qty. Specifications Price F40517201A 1 - 891101 € 208,43 F52117201B 1 891101 - 930817 € 219,01 F52117201C 1 930817 - 931101 € 210,51 F52117201D 1 A (F521-17-201E)
931101 -€ 210,51 » 17202B BEARING,BALL Part Number Qty. Specifications Price F52017171A 1 891101 - 931101 € 27,44 F52017171B 1 A (F520-17-171C)
931101 - 941101€ 26,37 M50217297A 1 KOYO
941101 -€ 29,35 » 17207 SHIM,ADJUST Part Number Qty. Specifications Price 999634315 1 T=0.15MM
891101 -€ 3,65 999634320 1 T=0.2MM
891101 -€ 2,03 999634325 1 T=0.25MM
891101 -€ 2,02 999634330 1 T=0.3MM
891101 -€ 2,56 999634335 1 T=0.35MM
891101 -€ 2,02 999634340 1 T=0.4MM
891101 -€ 2,15 999634345 1 T=0.45MM
891101 -€ 2,15 999634350 1 T=0.5MM
891101 -€ 2,15 999634355 1 T=0.55MM
920701 -€ 2,17 999634360 1 T=0.6MM
920701 -€ 2,17 999634365 1 T=0.65MM
920701 -€ 2,17 999634370 1 T=0.7MM
920701 -€ 2,17 » 17230 GEAR,3RD Part Number Qty. Specifications Price F40117231A 1 - 891101 € 68,65 F52017231 1 A (F520-17-231A)
891101 - 950701€ 69,34 F52017231A 1 AN (F520-17-231B)
950701 -€ 69,34 » 17230A GEAR,4TH Part Number Qty. Specifications Price F40217211 1 - 891101 € 77,43 F52217211A 1 AN (F522-17-211B)
891101 - 911201€ 77,43 F52217211B 1 911201 - 930817 € 77,43 F52217211C 1 A (F522-17-211D)
930817 -€ 77,43 » 17240 HUB SET,CLUTCH-3RD & 4TH Part Number Qty. Specifications Price F40117240B 1 - 891101 € 83,14 F52017240 1 A (F520-17-240A)
891101 -€ 79,39 » 17241 HUB,CLUTCH Part Number Qty. Specifications Price F40117241 1 A (F401-17-241A) € 26,10 » 17242A SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price F40117242A 1 - 891101 € 43,46 F52017242 1 891101 - € 42,14 » 17243 KEY,SYNCHRONIZER Part Number Qty. Specifications Price F40117243A 3 AN (F401-17-243C) € 3,12 » 17245 RING,SYNCHRONIZER Part Number Qty. Specifications Price F52017245 4 A (F520-17-245A)
891101 - 910218€ 22,36 F52017245A 4 910218 - € 22,36 » 17250 GEAR,2ND Part Number Qty. Specifications Price F40317251 1 - 891101 € 84,60 F52117251A 1 A (F521-17-251B)
891101 - 950801€ 82,94 F52117251B 1 950801 - € 86,29 » 17260 HUB SET,CLUTCH-1ST & 2ND Part Number Qty. Specifications Price F40117260H 1 A (F401-17-260J)
- 891101€ 107,26 F52117260A 1 A (F521-17-260B)
891101 - 910301€ 108,55 F52117260B 1 AN (F521-17-260C)
910301 - 940201€ 108,55 F52117260C 1 A (F521-17-260D)
940201 - 940323€ 108,55 F52117260D 1 AN (F521-17-260E)
940323 - 940720€ 108,55 F52117260E 1 A (F521-17-260F)
940720 - 950601€ 108,55 F52117260F 1 C (F521-17-260G)
950601 -€ 108,55 » 17261 HUB,CLUTCH Part Number Qty. Specifications Price F40117261A 1 - 891101 F52117261 1 891101 - € 28,93 » 17263A KEY,SYNCHRONIZER Part Number Qty. Specifications Price F40117263A 3 € 2,92 » 17264 SPRING,SYNCHRO. KEY Part Number Qty. Specifications Price F40217264 2 € 2,62 » 17264A SPRING,SYNCHRONIZER Part Number Qty. Specifications Price F40117264A 2 A (F402-17-264) € 2,70 » 17281 GEAR,REVERSE Part Number Qty. Specifications Price F40117281F 1 A (F401-17-281G)
- 891101F52017281A 1 A (F520-17-281B)
891101 - 910301F52017281B 1 AN (F520-17-281C)
910301 - 940201€ 67,10 F52017281C 1 A (F520-17-281D)
940201 - 940323€ 67,10 F52017281D 1 AN (F520-17-281E)
940323 - 940720€ 67,10 F52017281E 1 A (F520-17-281F)
940720 - 950601€ 67,10 F52017281F 1 950601 - € 69,81 » 17290 BEARING,TAPER Part Number Qty. Specifications Price F40117290 1 KOYO MAKE
ILLUST. NO.1
- 950201€ 36,01 F52017290 1 KOYO
ILLUST. NO.2
891101 -€ 39,20 F5D217290 1 NTN
ILLUST. NO.1
950201 -€ 39,20 » 17301B GEAR,SECOND.SHAFT Part Number Qty. Specifications Price F40117301A 1 G.C.C. F40317301A 1 (GEN>STD F.G.R.) F40817301 1 (GEN>LOW F.G.R.)
COLOMBIA
- 891101F52517301 1 COLOMBIA
ECUADOR
891101 - 940101€ 169,37 F5D417301 1 ECUADOR
COLOMBIA
940101 -€ 176,22 » 17303D GEAR,SECD.4TH Part Number Qty. Specifications Price F52217303 1 891101 - 930817 € 98,51 F52217303A 1 930817 - € 102,49 » 17304B SPACER Part Number Qty. Specifications Price F42017307 1 ECUADOR
COLOMBIA
891101 -» 17305C GEAR,SECD.3RD Part Number Qty. Specifications Price F52017305 1 891101 - € 106,61 » 17310 GEAR,REVERSE IDLE Part Number Qty. Specifications Price F40117310A 1 - 891101 € 60,39 F52017310B 1 A (F520-17-310C)
891101 - 910201€ 58,05 F52017310C 1 A (F520-17-310D)
910201 - 950501€ 58,05 F52017310D 1 950501 - € 60,39 » 17315 SHAFT,REV. IDLE GEAR Part Number Qty. Specifications Price F40117315B 1 - 890801 F40117315C 1 890801 - 891101 F52017315 1 A (F520-17-315A)
891101 - 940501F52017315A 1 A (F520-17-315B)
940501 - 940618€ 18,35 F52017315B 1 940618 - € 19,09 » 17321A RING,RETAINING Part Number Qty. Specifications Price F40117321 1 A (G401-17-322)
ILLUST. NO.1€ 4,37 G40117321 2 ILLUST. NO.2
891101 -€ 4,32 » 17327A FUNNEL Part Number Qty. Specifications Price F40117327 1 AN (F5E0-17-327) € 3,46 » 17629 NUT,LOCK-CLUTCH HUB Part Number Qty. Specifications Price F52017628 1 891101 - 930401 € 13,29 F52Y17628 1 930401 - 930817 € 17,39 F5DY17629 1 A (F5DY-17-629A)
930817 - 940323€ 9,26 F5DY17629A 1 940323 - € 9,73 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997800825 1 € 1,55
