Mazda 323 BJ 2000-10 Mazda Vacuum Pump 01/02 02/02

Mazda parts catalog

Parts > Mazda 323 > 2000-10 > Diesel-engine Supplement > Vacuum Pump(diesel)

Search by part number:

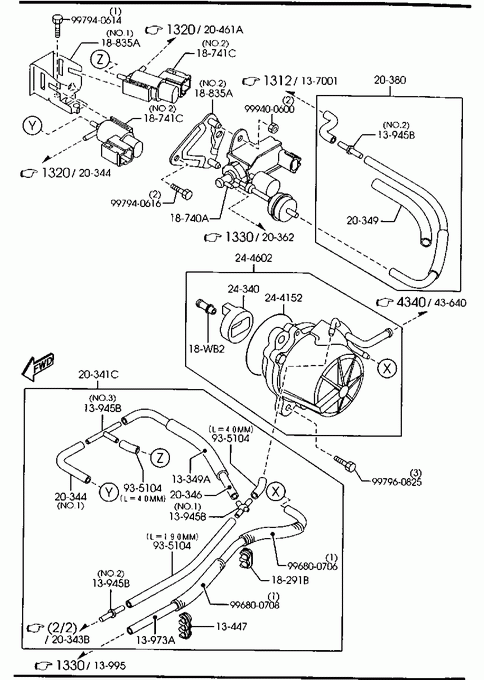

Vacuum Pump(diesel)

01/02
02/02

PROTECTOR

Part Number	Qty.	Specifications	Price
RFB720349	1

» 13447

CLIP

Part Number	Qty.	Specifications	Price
FE0113447	1		€ 1,12

» 13945B

CONNECTOR

Part Number	Qty.	Specifications	Price
170013945A	1	ILLUST. NO.3	€ 2,13
F80713945	2	ILLUST. NO.2	€ 3,79
FEH213945	1	ILLUST. NO.1	€ 1,79

» 13973A

HOSE,EVAPORATION

Part Number	Qty.	Specifications	Price
B6VL13973	1

» 18291B

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
HE2118291	4		€ 2,02

» 18740A

VALVE,SOLENOID

Part Number	Qty.	Specifications	Price
RF4F18740	1	010404 - BJ1427886-*	€ 110,79
RF4F18741A	1	AN (RF4F-18-741B) - 010404 BJ1* -427886**	€ 106,49

» 18741C

VALVE,SOLENOID

Part Number	Qty.	Specifications	Price
KJ0318741A	1	ILLUST. NO.1	€ 69,80
KL0118741	2	ILLUST. NO.2	€ 69,67

» 18835A

BRACKET

Part Number	Qty.	Specifications	Price
RF2C18835A	1	ILLUST. NO.1
RF4F18835A	1	A (RF4F-18-835B) ILLUST. NO.2 - 020115 BJ1* -471889**
RF4F18835B	1	ILLUST. NO.2 020115 - BJ1471889-*	€ 7,66

» 18WB2

CONNECTOR SET,NO.2-ALT.

Part Number	Qty.	Specifications	Price
RF2A18WB2	1		€ 23,94

» 20341C

TUBE,VACUUM

Part Number	Qty.	Specifications	Price
RF4P20340B	1		€ 28,09

» 20344

TUBE,VACUUM

Part Number	Qty.	Specifications	Price
RF4F20344	1	ILLUST. NO.1	€ 3,01
RF4P20344B	1	ILLUST. NO.2	€ 5,00

» 20346

TUBE,VACUUM

Part Number	Qty.	Specifications	Price
RF4F20346	1		€ 3,25

» 20349

PROTECTOR,VACUUM PIPE

Part Number	Qty.	Specifications	Price
RF4P20349	1	010201 - BJ1420246-*
RFB720349	1	- 010201 BJ1* -420246**

» 20380

TUBE,VACUUM

Part Number	Qty.	Specifications	Price
RF4P20380	1		€ 34,94

» 24340

COUPLING SET

Part Number	Qty.	Specifications	Price
RF2A18V50	1		€ 54,53

» 244152

RING,'O'

Part Number	Qty.	Specifications	Price
RF2A18WC2	1		€ 22,36

» 244602

PUMP,VACUUM

Part Number	Qty.	Specifications	Price
RF4F18G00	1		€ 395,29

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996800708	1

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 935104

HOSE

Part Number	Qty.	Specifications	Price
9935104999	1	L=1M CUT IT TO USE	€ 11,63

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940614	1		€ 1,13

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960825	1		€ 1,57

Vacuum Pump(diesel)
