Dashboard Wiring Harnesses 01/03 02/03 03/03

Dashboard Wiring Harnesses |

Mazda parts catalog

Parts > Mazda 323 > 1998-05 > Body Electronics > Dashboard Wiring Harnesses

Search by part number:

Dashboard Wiring Harnesses

01/03
02/03
03/03

FUSE (30A)

Part Number	Qty.	Specifications	Price
GD7A67S99	1	30A (W/O RUNNING LAMP>W/O AIR BAG) - 000711 BJ1* -300761**	€ 2,03

BLOCK,FUSE

Part Number	Qty.	Specifications	Price
BJ1V66730	1	AN (BJ1V-66-730A) (W/O RUNNING LAMP>W/O AIR BAG) - 000711 BJ1* -300761**	€ 115,35

PULLER,FUSE

Part Number	Qty.	Specifications	Price
T00166739	1	(W/O RUNNING LAMP>W/O AIR BAG) - 000711 BJ1* -300761**	€ 2,16

HARNESS,DASHBOARD

Part Number	Qty.	Specifications	Price

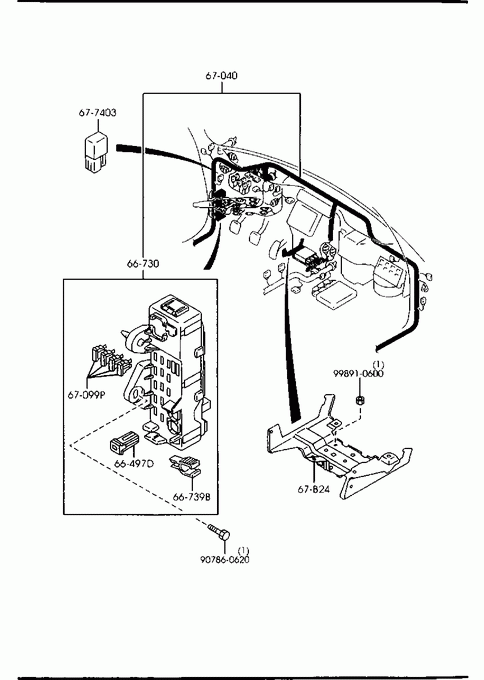

BJ1V67040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 990728 BJ1* -229827**
BJ1V67040F	1	AN (BJ1V-67-040G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*
BJ1W67040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 990728 BJ1* -229827**
BJ1W67040F	1	AN (BJ1W-67-040G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*
BJ2A67040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 990728 BJ1* -229827**
BJ2A67040F	1	AN (BJ2A-67-040G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*
BJ2B67040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 990728 BJ1* -229827**	€ 1383,39
BJ2B67040F	1	AN (BJ2B-67-040G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*	€ 1383,39
BJ2C67040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 990728 BJ1* -229827**
BJ2C67040F	1	AN (BJ2C-67-040G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*
BJ2D67040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 990728 BJ1* -229827**
BJ2D67040F	1	AN (BJ2D-67-040G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*
BJ2E67040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 990728 BJ1* -229827**
BJ2E67040F	1	AN (BJ2E-67-040G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*
BJ2F67040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 990728 BJ1* -229827**	€ 1156,41
BJ2F67040F	1	AN (BJ2F-67-040G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*	€ 1156,41
BK5W67040	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990301 - 990728 BJ1197993-229827*
BK5W67040B	1	AN (BK5W-67-040C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 990728 - BJ1229827-*

FUSE

Part Number	Qty.	Specifications	Price
997051210	5	10A (W/O RUNNING LAMP>W/O AIR BAG) - 000711 BJ1* -300761**	€ 1,13
997051215	3	15A (W/O RUNNING LAMP>W/O AIR BAG) - 000711 BJ1* -300761**	€ 1,13
997051220	2	20A (W/O RUNNING LAMP>W/O AIR BAG) - 000711 BJ1* -300761**	€ 1,13
997051230	1	30A (W/O RUNNING LAMP>W/O AIR BAG) - 000711 BJ1* -300761**	€ 1,13

RELAY,N.O.

Part Number	Qty.	Specifications	Price
B11067730	1		€ 26,37

BRACKET

Part Number	Qty.	Specifications	Price
GE4T67B12D	1		€ 14,85

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860620	1		€ 2,75

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79
