Mazda 323 BJ 1998-05 Mazda Manual Transmission Case

Mazda parts catalog

Parts > Mazda 323 > 1998-05 > Diesel-engine & Transmission > Manual Transmission Case(diesel)(w/o Turbo)

Search by part number:

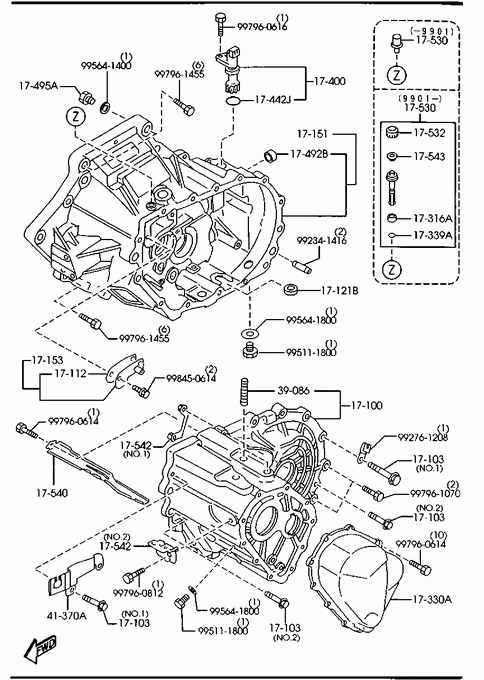

Manual Transmission Case(diesel)(w/o Turbo)
» 17100 CASE,T/MISSION

Part Number Qty. Specifications Price
F5E017100 1 A (F5E0-17-100A)
- 980901
BJ1*** -135725 € 252,03
F5E017100A 1 AN (F5E0-17-10X)
980901 -
BJ1***135725- € 252,03

» 17103 BOLT

Part Number Qty. Specifications Price
F52017103 11 ILLUST. NO.1
€ 1,87
F52117103 2 ILLUST. NO.2
€ 1,87

» 17112 GASKET

Part Number Qty. Specifications Price
G50117112B 1 NON ASBESTOS
€ 2,73

» 17121B MAGNET

Part Number Qty. Specifications Price
B50117121 1
€ 5,33

» 17151 HOUSING,CLUTCH

Part Number Qty. Specifications Price
F5D317150D 1 A (F5D3-17-150E)
- 990901
BJ1*** -237960
F5D317150F 1 AN (F5D3-17-15X)
990901 -
BJ1***237960-

» 17153 PLATE,BAFFLE

Part Number Qty. Specifications Price
G5011716XB 1 NON ASBESTOS
€ 8,45

» 17316A SPACER

Part Number Qty. Specifications Price
F5E017316 1 990901 -
BJ1***237960- € 1,15

» 17330A COVER,T/MISSION-REAR

Part Number Qty. Specifications Price
F5D217330B 1
€ 22,03

» 17339A RING,'O'

Part Number Qty. Specifications Price
F5E017339 1 990901 -
BJ1***237960- € 1,43

» 17400 GEAR SET,DRIVEN-SPEED

Part Number Qty. Specifications Price
F53217400A 1
€ 150,05

» 17442J RING,'O'

Part Number Qty. Specifications Price
101117443 1
€ 3,00

» 17492B BUSH,SHIFT ROD-DIFF. LOCK

Part Number Qty. Specifications Price
G5A017492 1
€ 4,02

» 17495A PLUG

Part Number Qty. Specifications Price
G40217495 1
€ 2,43

» 17530 BREATHER,AIR

Part Number Qty. Specifications Price
F5E017530A 1 990901 -
BJ1***237960- € 5,96
ME0117530A 1 - 990901
BJ1*** -237960 € 8,32

» 17532 BOOT,DUST-BREATHER

Part Number Qty. Specifications Price
F5E017532 1 990901 -
BJ1***237960-

» 17540 PASS,OIL

Part Number Qty. Specifications Price
F52017541C 1
€ 4,60

» 17542 BRACKET

Part Number Qty. Specifications Price
F52017542C 1 ILLUST. NO.2
€ 2,54
F5D21754X 1 ILLUST. NO.1
€ 9,28

» 17543 RUBBER,SEAL

Part Number Qty. Specifications Price
F5E017543 1 990901 -
BJ1***237960-

» 39086 BOLT,STUD

Part Number Qty. Specifications Price
B59639086 3
€ 2,88

» 41370A HOLDER

Part Number Qty. Specifications Price
B25F41370 1
€ 10,27

» 90720 SCREW

Part Number Qty. Specifications Price
998450614 1
€ 1,71

» 99201 WASHER

Part Number Qty. Specifications Price
995641800 1
€ 1,18

» 99234 PIN,TUBULAR

Part Number Qty. Specifications Price
992341416 1
€ 1,39

» 99274 CLIP

Part Number Qty. Specifications Price
992761208 1
€ 2,47

» 99305 PLUG

Part Number Qty. Specifications Price
995111800 1
€ 2,42

» 99560 GASKET

Part Number Qty. Specifications Price
995641400 1
€ 1,19

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960614 1
€ 0,48

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960812 1
€ 1,47

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997961070 1
€ 2,86

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997961455 1
€ 3,53

Part Number	Qty.	Specifications	Price
F5E017100	1	A (F5E0-17-100A) - 980901 BJ1* -135725**	€ 252,03
F5E017100A	1	AN (F5E0-17-10X) 980901 - BJ1135725-*	€ 252,03

Part Number	Qty.	Specifications	Price
F52017103	11	ILLUST. NO.1	€ 1,87
F52117103	2	ILLUST. NO.2	€ 1,87

Part Number	Qty.	Specifications	Price
F5D317150D	1	A (F5D3-17-150E) - 990901 BJ1* -237960**
F5D317150F	1	AN (F5D3-17-15X) 990901 - BJ1237960-*

Part Number	Qty.	Specifications	Price
F5E017530A	1	990901 - BJ1237960-*	€ 5,96
ME0117530A	1	- 990901 BJ1* -237960**	€ 8,32

Part Number	Qty.	Specifications	Price
F52017542C	1	ILLUST. NO.2	€ 2,54
F5D21754X	1	ILLUST. NO.1	€ 9,28

Manual Transmission Case(diesel)(w/o Turbo)
