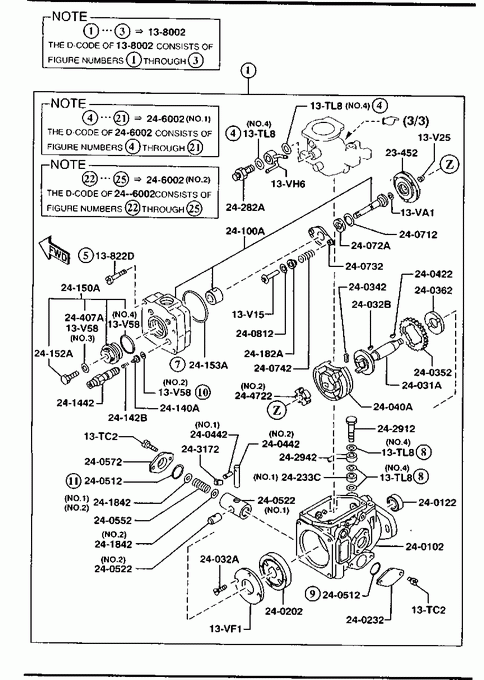

Injection Pump(diesel)
-
» 138002 PUMP,INJECTION Part Number Qty. Specifications Price Y70713800 1 € 2308,25 » 13822D BOLT Part Number Qty. Specifications Price Y70113V51 3 € 2,41 » 13TC2 BOLT Part Number Qty. Specifications Price Y70113TD5 4 € 2,32 » 13TL8 GASKET Part Number Qty. Specifications Price Y70113TL8 1 ILLUST. NO.1 € 0,97 Y70113TM8 1 ILLUST. NO.2 € 1,14 Y70113TM9 1 ILLUST. NO.3 € 2,29 Y70713VJ1 5 ILLUST. NO.4 € 2,52 » 13V15 PIN,GUIDE Part Number Qty. Specifications Price Y70113V15 2 » 13V25 SPRING,COUPLING Part Number Qty. Specifications Price Y70113V25 1 € 3,19 » 13V58 GASKET Part Number Qty. Specifications Price Y70113V58 4 ILLUST. NO.2 € 1,81 Y70113V59 1 ILLUST. NO.3 € 0,88 Y70113V61 1 ILLUST. NO.4 € 3,00 Y70213VX3 1 ILLUST. NO.1 € 1,48 » 13VA1 SHIM Part Number Qty. Specifications Price Y70113V82 1 T=1.74MM Y70113V83 1 T=1.76MM Y70113V84 1 T=1.78MM Y70113V85 1 T=1.8MM Y70113V86 1 T=1.82MM Y70113V87 1 T=1.84MM Y70113V88 1 T=1.86MM Y70113V89 1 T=1.88MM Y70113VA1 1 T=2.7MM Y70113VA2 1 T=2.72MM Y70113VA3 1 T=2.74MM Y70113VA4 1 T=2.76MM Y70113VA5 1 T=2.78MM Y70113VA6 1 T=2.8MM Y70113VA7 1 T=2.82MM Y70113VA8 1 T=2.84MM Y70113VA9 1 T=2.86MM Y70213V82 1 T=1.9MM Y70213V83 1 T=1.92MM Y70213V84 1 T=1.94MM Y70213V85 1 T=1.96MM Y70213V86 1 T=1.98MM Y70213V87 1 T=2.0MM Y70213V88 1 T=2.02MM Y70213V89 1 T=2.04MM Y70213VA1 1 T=2.88MM Y70213VA2 1 T=2.9MM Y70313V82 1 T=2.06MM Y70313V83 1 T=2.08MM Y70313V84 1 T=2.1MM Y70313V85 1 T=2.12MM Y70313V86 1 T=2.14MM Y70313V87 1 T=2.16MM Y70313V88 1 T=2.18MM Y70313V89 1 T=2.2MM Y70413V82 1 T=2.22MM Y70413V83 1 T=2.24MM Y70413V84 1 T=2.26MM Y70413V85 1 T=2.28MM Y70413V86 1 T=2.3MM Y70413V87 1 T=2.32MM Y70413V88 1 T=2.34MM Y70413V89 1 T=2.36MM Y70513V82 1 T=2.38MM Y70513V83 1 T=2.4MM Y70513V84 1 T=2.48MM Y70513V85 1 T=2.44MM Y70513V86 1 T=2.46MM Y70513V87 1 T=2.48MM Y70513V88 1 T=2.5MM Y70513V89 1 T=2.52MM Y70613V82 1 T=2.54MM Y70613V83 1 T=2.56MM Y70613V84 1 T=2.58MM Y70613V85 1 T=2.6MM Y70613V86 1 T=2.62MM Y70613V87 1 T=2.64MM Y70613V88 1 T=2.66MM Y70613V89 1 T=2.68MM » 13VF1 COVER Part Number Qty. Specifications Price Y70113VF1 1 € 25,34 » 13VH6 EYE,INJECTION PUMP Part Number Qty. Specifications Price Y70113VH6 1 » 23452 CAM Part Number Qty. Specifications Price Y70113V12 1 » 240102 HOUSING Part Number Qty. Specifications Price Y70113V01 1 » 240122 SEAL,OIL Part Number Qty. Specifications Price Y70113V02 1 € 6,06 » 240202 PUMP,FEED Part Number Qty. Specifications Price Y70113VF0 1 € 182,07 » 240232 COVER Part Number Qty. Specifications Price Y70113TA5 1 € 3,70 » 24031A SHAFT,DRIVE Part Number Qty. Specifications Price Y70113V05 1 » 24032A BOLT Part Number Qty. Specifications Price Y70113VG7 2 € 2,11 » 24032B KEY Part Number Qty. Specifications Price Y70113V28 1 € 7,12 » 240342 DAMPER Part Number Qty. Specifications Price Y70113V06 2 » 240352 GEAR Part Number Qty. Specifications Price Y70113V07 1 € 17,17 » 240362 WASHER Part Number Qty. Specifications Price Y70113V81 1 » 24040A ROLLER Part Number Qty. Specifications Price Y70113V10 1 » 240422 KEY,WOODRUFF Part Number Qty. Specifications Price Y70113V29 1 » 240442 PIN Part Number Qty. Specifications Price Y70113TC6 1 ILLUST. NO.1 Y70113TC7 1 ILLUST. NO.2 € 17,24 » 240512 RING,'O' Part Number Qty. Specifications Price Y70113TC8 3 » 240522 PISTON Part Number Qty. Specifications Price Y70713TA1 1 ILLUST. NO.1 € 61,49 Y70713TA2 1 ILLUST. NO.2 » 240552 SPRING,TIMER Part Number Qty. Specifications Price Y70713TA6 1 L=35.4(7.2ROLL) € 4,62 Y70713TA7 1 L=35.5 € 4,62 Y70713TA8 1 L=35.4(8.0ROLL) € 4,62 » 240572 COVER Part Number Qty. Specifications Price Y70113TA4 1 € 12,45 » 240712 SHIM Part Number Qty. Specifications Price Y70113V79 1 » 24072A WASHER Part Number Qty. Specifications Price Y70113V14 1 » 240732 SHEET,SPRING Part Number Qty. Specifications Price Y70113V13 1 € 12,51 » 240742 SPRING,PLUNGER Part Number Qty. Specifications Price Y70113V16 1 » 240812 SHIM Part Number Qty. Specifications Price Y70113V91 1 T=0.5MM € 4,34 Y70113V92 1 T=0.8MM € 4,34 Y70113V93 1 T=1.0MM € 4,34 Y70113V94 1 T=1.2MM € 4,34 Y70113V95 1 T=1.5MM € 4,34 Y70113V96 1 T=1.8MM € 4,34 Y70113V97 1 T=2.0MM € 4,34 Y70113V98 1 T=0.9MM € 4,34 Y70113V99 1 T=1.1MM € 4,34 Y70313V91 1 T=1.3MM € 4,34 Y70313V92 1 T=1.4MM € 4,34 Y70313V93 1 T=1.6MM € 4,34 Y70313V94 1 T=1.7MM € 4,34 » 24100A HEAD,DISTRIBUTOR Part Number Qty. Specifications Price Y70713V20 1 » 24140A VALVE,DELIVERY Part Number Qty. Specifications Price Y70113V21 4 € 72,70 » 24142B SPRING,D.V. Part Number Qty. Specifications Price Y70113V22 4 € 5,65 » 241442 HOLDER,D.V. Part Number Qty. Specifications Price Y70113V23 4 € 49,16 » 24150A PLUG Part Number Qty. Specifications Price Y70113V2X 1 € 18,86 » 24152A BOLT Part Number Qty. Specifications Price Y70113V52 1 € 3,20 » 24153A RING,'O' Part Number Qty. Specifications Price Y70113V72 1 € 5,50 » 24182A SEAT,SPRING Part Number Qty. Specifications Price Y70113V17 2 € 2,55 » 241842 SHIM Part Number Qty. Specifications Price Y70113TE1 1 T=2.4MM
ILLUST. NO.1€ 2,60 Y70113TE2 2 T=0.6MM
ILLUST. NO.2€ 2,68 Y70113TE3 1 T=0.7MM
ILLUST. NO.1€ 2,60 Y70113TE4 1 T=0.9MM
ILLUST. NO.1€ 2,60 Y70113TE5 1 T=1.0MM
ILLUST. NO.1€ 2,60 Y70113TE6 1 T=1.2MM
ILLUST. NO.1€ 2,60 » 24233C SPACER Part Number Qty. Specifications Price Y70113VC7 1 ILLUST. NO.1 € 3,46 Y70113VK2 1 ILLUST. NO.2 € 5,97 » 24282A EYE Part Number Qty. Specifications Price Y70713VH2 1 » 242912 BOLT,EYE Part Number Qty. Specifications Price Y70113VH1 1 » 242942 EYE Part Number Qty. Specifications Price Y70713VH5 1 » 243172 CLIP Part Number Qty. Specifications Price Y70113TC4 1 € 1,55 » 24407A GASKET Part Number Qty. Specifications Price Y70213VX1 2 € 0,88 » 244722 CAP Part Number Qty. Specifications Price Y70113V11 1 ILLUST. NO.2 € 41,46 Y70113VW6 1 L=16.5MM
ILLUST. NO.1» 246002 REPAIR KIT,F.I.P. Part Number Qty. Specifications Price Y70113TJ0 1 ILLUST. NO.1 € 78,23 Y70213TJ0 1 ILLUST. NO.2 € 5,50
