Mazda 323 BG 1991-03 Mazda Injection Pump

Mazda parts catalog

Parts > Mazda 323 > 1991-03 > Diesel-engine Supplement > Injection Pump(diesel)

Search by part number:

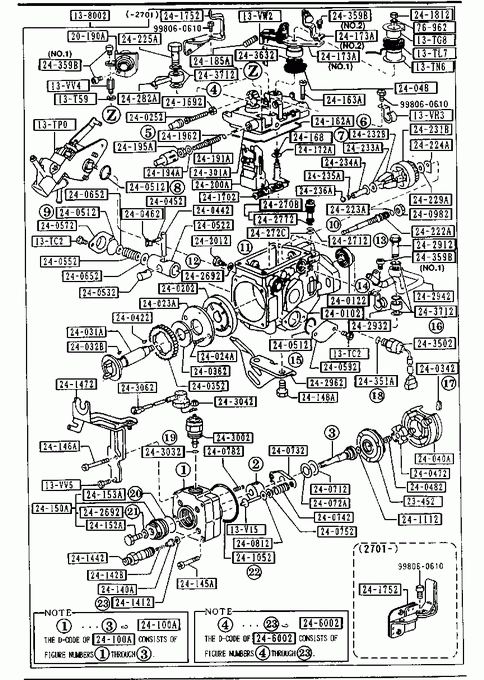

Injection Pump(diesel)

PUMP,INJECTION

Part Number	Qty.	Specifications	Price
PN6213800A	1	A (PN62-13-800B) - 920311 BG -637206
PN6213800B	1	920311 - 920701 BG637206-673570
PN6213800C	1	A (PN62-13-800D) 920701 - 941201 BG673570-847359
PN6213800D	1	941201 - BG847359-

» 13T59

WASHER,PUMP-INJECTION

Part Number	Qty.	Specifications	Price
PN6213T59	1	- 920701 BG -673570

» 13TC2

BOLT

Part Number	Qty.	Specifications	Price
SE0113TC2	4

» 13TG8

SEAT,SPRING

Part Number	Qty.	Specifications	Price
PN6413TG8	1	920701 - BG673570-

» 13TL7

SPRING

Part Number	Qty.	Specifications	Price
PN6413TL7	1	920701 - BG673570-

» 13TN6

BUSH

Part Number	Qty.	Specifications	Price
PN6413TN6	1	920701 - BG673570-

» 13TP0

LEVER,C.S.D.-F.I.PUMP

Part Number	Qty.	Specifications	Price
PN4013TP0A	1		€ 399,90

» 13V15

PIN,GUIDE

Part Number	Qty.	Specifications	Price
PN4013V15	2

» 13VH3

CLIP,EYE-F.I.PUMP

Part Number	Qty.	Specifications	Price
PN1113VH3	1

» 13VV4

BOLT

Part Number	Qty.	Specifications	Price
PN5813VV4	1	- 920701 BG -673570

» 13VV5

BOLT

Part Number	Qty.	Specifications	Price
RF7113VV5	1

» 13VW2

BUSH

Part Number	Qty.	Specifications	Price
SLA113VW2	1

» 20190A

DASH POT

Part Number	Qty.	Specifications	Price
PN5820190A	1	- 920701 BG -673570
PN6420190	1	920701 - BG673570-

» 23452

CAM

Part Number	Qty.	Specifications	Price
PN4013V12	1	- 920311 BG -637206	€ 146,35
PN6413V12	1	920311 - BG637206-

» 240102

HOUSING

Part Number	Qty.	Specifications	Price
PN4013V01	1		€ 450,08

» 240122

SEAL,OIL

Part Number	Qty.	Specifications	Price
RF0124012	1		€ 7,94

» 240202

PUMP,FEED

Part Number	Qty.	Specifications	Price
RF0124020	1		€ 219,38

» 24023A

COVER

Part Number	Qty.	Specifications	Price
093324023	1		€ 55,00

» 24024A

SCREW

Part Number	Qty.	Specifications	Price
093324024	2

» 240252

BOLT

Part Number	Qty.	Specifications	Price
093313VV2	1		€ 3,70

» 24031A

SHAFT,DRIVE

Part Number	Qty.	Specifications	Price
RF0124031	1		€ 151,43

» 24032B

KEY

Part Number	Qty.	Specifications	Price
093324032	1

» 240342

DAMPER

Part Number	Qty.	Specifications	Price
PN6413V06	2	920701 - BG673570-

» 240352

GEAR

Part Number	Qty.	Specifications	Price
093324035	1

» 240362

WASHER

Part Number	Qty.	Specifications	Price
093324036	1

» 24040A

ROLLER

Part Number	Qty.	Specifications	Price
RF7113V10	1	- 920311 BG -637206
RFD313V10	1	920311 - BG637206-

» 240422

KEY,WOODRUFF

Part Number	Qty.	Specifications	Price
R23013V29	1	AN (RF11-24-042)

» 240442

Part Number	Qty.	Specifications	Price
V10113TC6	1

» 240452

Part Number	Qty.	Specifications	Price
093324045	1		€ 2,50

» 240462

CLIP

Part Number	Qty.	Specifications	Price
093324046	1		€ 1,94

» 240472

DISC

Part Number	Qty.	Specifications	Price
093324047	1		€ 63,86

» 24048

SPRING

Part Number	Qty.	Specifications	Price
PN5813T44	1	- 920701 BG -673570
PN6413TM2	1	920701 - BG673570-

» 240482

SPRING

Part Number	Qty.	Specifications	Price
093324048	1

» 240512

RING,'O'

Part Number	Qty.	Specifications	Price
093324051	3	920701 - BG673570-	€ 8,67

» 240522

PISTON

Part Number	Qty.	Specifications	Price
PN4013TA1A	1

» 240532

SLIDER

Part Number	Qty.	Specifications	Price
SLA113TA2	1

» 240552

SPRING,TIMER

Part Number	Qty.	Specifications	Price
PN4013TA3	1	K=2.05MM
PN4013TA6	1	K=2.25MM
PN4013TA7	1	K=1.90MM

» 240572

COVER

Part Number	Qty.	Specifications	Price
PN1113TA4	1

» 240592

COVER

Part Number	Qty.	Specifications	Price
093324059	1

» 240652

SHIM

Part Number	Qty.	Specifications	Price
093324065	2	T=0.6MM	€ 1,22
093324066	1	T=0.7MM
093324067	1	T=0.9MM	€ 1,22
093324068	1	T=1.0MM	€ 1,22
093324069	1	T=1.2MM
PN6413TD7	1	T=2.4MM 920701 - BG673570-

» 240712

SHIM

Part Number	Qty.	Specifications	Price
093324071	1		€ 5,46

» 24072A

WASHER

Part Number	Qty.	Specifications	Price
093324072	1		€ 12,17

» 240732

SHEET,SPRING

Part Number	Qty.	Specifications	Price
093324073	1

» 240742

SPRING,PLUNGER

Part Number	Qty.	Specifications	Price
PN4013V16	1

» 240752

SHEET,SPRING

Part Number	Qty.	Specifications	Price
093324075	2

» 240782

SPRING

Part Number	Qty.	Specifications	Price
PN1113V24	2

» 240812

SHIM

Part Number	Qty.	Specifications	Price
093324081	1	T=0.5MM - 920701 BG -673570
093324082	1	T=0.8MM
093324083	1	L=1.0MM
093324084	1	T=1.2MM
093324085	1	T=1.5MM
093324086	1	T=1.8MM - 920701 BG -673570
093324087	1	T=2.0MM - 920701 BG -673570
PN6413V81	1	T=0.9MM 920701 - BG673570-	€ 5,11
PN6413V82	1	T=1.1MM 920701 - BG673570-	€ 5,11
PN6413V83	1	T=1.3MM 920701 - BG673570-	€ 5,11
PN6413V84	1	T=1.4MM 920701 - BG673570-	€ 5,11
PN6413V85	1	T=1.6MM 920701 - BG673570-	€ 5,11
PN6413V86	1	T=1.7MM 920701 - BG673570-	€ 6,75

» 240982

NUT

Part Number	Qty.	Specifications	Price
R28613VX9	1

» 24100A

HEAD,DISTRIBUTOR

Part Number	Qty.	Specifications	Price
PN4013V20	1

» 241052

RING,'O'

Part Number	Qty.	Specifications	Price
093324105	1	920701 - BG673570-	€ 6,82

» 241112

SHIM

Part Number	Qty.	Specifications	Price
093324111	1	T=1.92MM - 920701 BG -673570
093324112	1	T=2.0MM - 920701 BG -673570
093324113	1	T=2.08MM - 920701 BG -673570
093324114	1	T=2.16MM - 920701 BG -673570
093324115	1	T=2.24MM
093324116	1	T=2.32MM - 920701 BG -673570
093324117	1	T=2.4MM - 920701 BG -673570
093324118	1	T=2.48MM - 920701 BG -673570
093324119	1	T=2.56MM - 920701 BG -673570
093324121	1	T=2.64MM
093324122	1	T=2.72MM - 920701 BG -673570
093324123	1	T=2.8MM - 920701 BG -673570
093324124	1	T=2.88MM - 920701 BG -673570
PN6413V91	1	T=1.94MM 920701 - BG673570-	€ 6,75
PN6413V92	1	T=2.04MM 920701 - BG673570-	€ 6,75
PN6413V93	1	T=2.14MM 920701 - BG673570-	€ 6,75
PN6413V94	1	T=2.34MM 920701 - BG673570-	€ 6,75
PN6413V95	1	T=2.44MM 920701 - BG673570-	€ 6,75
PN6413V96	1	T=2.54MM 920701 - BG673570-	€ 6,75
PN6413V97	1	T=1.84MM 920701 - BG673570-	€ 6,75

» 24140A

VALVE,DELIVERY

Part Number	Qty.	Specifications	Price
PN4013V21	4

» 241412

GASKET

Part Number	Qty.	Specifications	Price
093324141	4	920701 - BG673570-	€ 1,90

» 24142B

SPRING,D.V.

Part Number	Qty.	Specifications	Price
093324142	4		€ 5,17

» 241442

HOLDER,D.V.

Part Number	Qty.	Specifications	Price
091124144	4		€ 23,45

» 24145A

SCREW

Part Number	Qty.	Specifications	Price
093324145	3

» 24146A

BOLT,SOCKET HEAD

Part Number	Qty.	Specifications	Price
145624146	1		€ 2,45

» 241472

BRACKET

Part Number	Qty.	Specifications	Price
PN5813VV8	1

» 24148A

BOLT

Part Number	Qty.	Specifications	Price
SE0124148	2		€ 2,66

» 24150A

PLUG

Part Number	Qty.	Specifications	Price
093324150	1		€ 29,73

» 24152A

BOLT

Part Number	Qty.	Specifications	Price
093324152	1		€ 6,29

» 24153A

RING,'O'

Part Number	Qty.	Specifications	Price
093324153	1	920701 - BG673570-	€ 4,25

» 24162A

RING SEAL

Part Number	Qty.	Specifications	Price
093324162	1	920701 - BG673570-	€ 5,83

» 24163A

SCREW

Part Number	Qty.	Specifications	Price
093324163	4		€ 3,24

» 24168

WASHER

Part Number	Qty.	Specifications	Price
482524168	1	920701 - BG673570-	€ 4,39

» 241692

NUT

Part Number	Qty.	Specifications	Price
R23424169	1		€ 3,23

» 241702

SHAFT,CONTROL

Part Number	Qty.	Specifications	Price
PN4013VL2	1		€ 186,92

» 24172A

WASHER

Part Number	Qty.	Specifications	Price
093324172	1		€ 1,64

» 24173A

LEVER

Part Number	Qty.	Specifications	Price
PN5813VR1	1	SELECTIVE USE ILLUST. NO.1 - 920701 BG -673570
PN5813VR2	1	SELECTIVE USE ILLUST. NO.1 - 920701 BG -673570
PN6413VR1	1	SELECTIVE USE ILLUST. NO.1 920701 - BG673570-
PN6413VR2	1	SELECTIVE USE ILLUST. NO.1 920701 - BG673570-
PN6413VR3	1	ILLUST. NO.2 920701 - BG673570-

» 241752

BRACKET

Part Number	Qty.	Specifications	Price
PN4013VV7	1	920701 - BG673570-
PN6213VV7	1	- 920701 BG -673570

» 241812

NUT

Part Number	Qty.	Specifications	Price
V11624181	1

» 24185A

SCREW

Part Number	Qty.	Specifications	Price
482524185	1	- 920701 BG -673570	€ 8,57

» 24191A

SCREW,LOAD

Part Number	Qty.	Specifications	Price
093324191A	1	L=53MM	€ 13,04
093324192A	1	L=55MM
093324193A	1	L=57MM

» 24194A

WASHER

Part Number	Qty.	Specifications	Price
093324194	1		€ 1,84

» 24195A

NUT

Part Number	Qty.	Specifications	Price
093324195A	1

» 241962

RING,'O'

Part Number	Qty.	Specifications	Price
093324196	1	920701 - BG673570-	€ 1,89

» 24200A

LEVER,GOVERNOR

Part Number	Qty.	Specifications	Price
PN4013VM0	1

» 242012

BOLT,PIVOT

Part Number	Qty.	Specifications	Price
RFB313VM5	2

» 24222A

SHAFT,GOVERNOR

Part Number	Qty.	Specifications	Price
S21024222	1		€ 85,21

» 24223A

RING,'O'

Part Number	Qty.	Specifications	Price
093324223	1	920701 - BG673570-	€ 1,84

» 24224A

SHIM

Part Number	Qty.	Specifications	Price
093324224	1	T=1.05MM
093324225	1	T=1.25MM
093324226	1	T=1.45MM
093324227	1	T=1.65MM
093324228	1	T=1.85MM

» 24225A

VALVE,OVER FLOW

Part Number	Qty.	Specifications	Price
PN4013VF3	1		€ 28,62

» 24229A

WASHER

Part Number	Qty.	Specifications	Price
093324229	1

» 24231B

HOLDER FLYWEIGHT

Part Number	Qty.	Specifications	Price
145624231	1

» 24232B

FLYWEIGHT

Part Number	Qty.	Specifications	Price
093324232	1

» 24233A

WASHER

Part Number	Qty.	Specifications	Price
093324233	1

» 24234A

SLEEVE,GOVERNOR

Part Number	Qty.	Specifications	Price
PN4013VL6	1		€ 46,16

» 24235A

CAP,LOCK

Part Number	Qty.	Specifications	Price
PN1113VL7	1

» 24236A

PLUG,CLOSING

Part Number	Qty.	Specifications	Price
PN6413VN1	1	L=2.9MM 920701 - BG673570-
PN6413VN2	1	L=3.0MM 920701 - BG673570-
PN6413VN3	1	L=3.2MM 920701 - BG673570-
PN6413VN4	1	L=3.4MM 920701 - BG673570-
PN6413VN5	1	L=3.6MM 920701 - BG673570-
PN6413VN6	1	L=3.8MM 920701 - BG673570-
PN6413VN7	1	L=4.0MM 920701 - BG673570-
PN6413VN8	1	L=4.2MM 920701 - BG673570-
PN6413VN9	1	L=4.4MM 920701 - BG673570-
S21024236	1	L=8.6MM
S21024237	1	L=8.8MM
S21024238	1	L=9.0MM
S21024239	1	L=9.2MM
S21024241	1	L=9.4MM
S21024242	1	L=9.6MM
S21024243	1	L=9.8MM
S21024244	1	L=10.0MM

» 242692

GASKET,INJECTION

Part Number	Qty.	Specifications	Price
072724269	3	920701 - BG673570-	€ 2,74

» 24270B

VALVE,REGULATING

Part Number	Qty.	Specifications	Price
PN4013VF2	1

» 242712

RING,'O'

Part Number	Qty.	Specifications	Price
093324271	1	920701 - BG673570-	€ 2,02

» 24272C

RING,'O'

Part Number	Qty.	Specifications	Price
093324272	1	920701 - BG673570-	€ 2,02

» 242772

PIN,SPRING

Part Number	Qty.	Specifications	Price
484624277	1	920701 - BG673570-	€ 6,66

» 24282A

EYE

Part Number	Qty.	Specifications	Price
PN4013VH6	1

» 242912

BOLT,EYE

Part Number	Qty.	Specifications	Price
PN1113VH1	1		€ 21,56

» 242932

SPACER

Part Number	Qty.	Specifications	Price
RF0124293	1		€ 4,20

» 242942

EYE

Part Number	Qty.	Specifications	Price
PN5813VH5	1

» 242962

BRACKET

Part Number	Qty.	Specifications	Price
PN5813V03	1		€ 23,67

» 243002

VALVE,MAGNET

Part Number	Qty.	Specifications	Price
093324300B	1		€ 172,18

» 24301A

COVER,GOVERNOR

Part Number	Qty.	Specifications	Price
PN1113VL1A	1		€ 175,43

» 243032

RING,'O'

Part Number	Qty.	Specifications	Price
093324303	1	920701 - BG673570-	€ 5,84

» 243042

NUT

Part Number	Qty.	Specifications	Price
093313VJ4	1

» 243062

WIRE

Part Number	Qty.	Specifications	Price
PN4013T69	1	- 920701 BG -673570

» 243502

PICK UP

Part Number	Qty.	Specifications	Price
PN4613TS0	1		€ 200,70

» 24351A

RING,'O'

Part Number	Qty.	Specifications	Price
PN6413TS2	1	920701 - BG673570-

» 24359B

BOLT

Part Number	Qty.	Specifications	Price
PN1113VV3	2	ILLUST. NO.2 920701 - BG673570-	€ 2,01
PN4113VV6	4	ILLUST. NO.1 - 920701 BG -673570

» 243632

BUSH

Part Number	Qty.	Specifications	Price
SLA113VW4	1

» 243712

GASKET

Part Number	Qty.	Specifications	Price
S21324371	2		€ 1,56

» 246002

REPAIR KIT,F.I.P.

Part Number	Qty.	Specifications	Price
S21024600	1		€ 89,57

» 76962

WASHER,SPRING

Part Number	Qty.	Specifications	Price
836376962	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
998060610	1

Injection Pump(diesel)
