Mazda 323 BG 1991-03 Mazda Starter 01/02 (1800>AT) 02/02 (1300,1600)(1800>MT)

Mazda parts catalog

Parts > Mazda 323 > 1991-03 > Gasoline-engine 4-cylinder Supplement > Starter(gasoline)

Search by part number:

Starter(gasoline)

01/02 (1800>AT)
02/02 (1300,1600)(1800>MT)

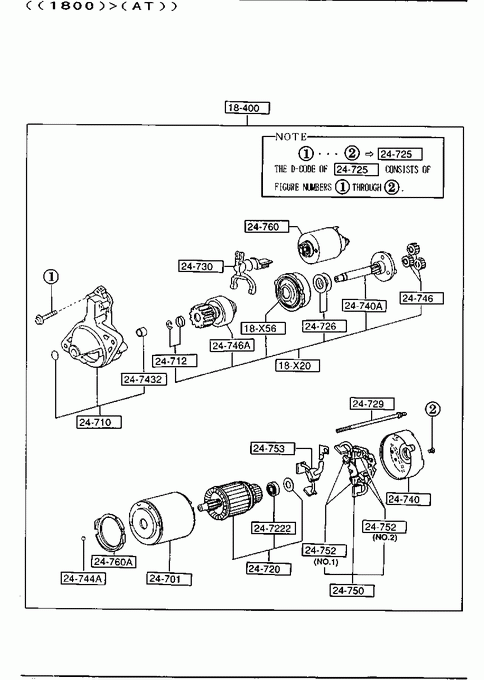

STARTER

Part Number	Qty.	Specifications	Price
B50518400	1	MITSUBISHI (1300>MANUAL TRANSMISSION) (1800>MANUAL TRANSMISSION>W/TURBO	€ 380,31
B59318400	1	(1300>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION>W/O EGI) 930801 - BG788984-	€ 437,25
B6S818400A	1	NON ASBESTOS (1300>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION>W/O EGI) - 930801 BG -788984	€ 385,69
F2D418400A	1	NON ASBESTOS (1800>AUTOMATIC TRANSMISSION)	€ 466,25

» 18X20

SHAFT,PINION

Part Number	Qty.	Specifications	Price
F21418X20	1	(1800>AUTOMATIC TRANSMISSION)

» 18X56

GEAR,INTERNAL-STARTER

Part Number	Qty.	Specifications	Price
F22518X56	1	MITSUBISHI (1800>AUTOMATIC TRANSMISSION) 910601 - BG531424-	€ 30,65
N32618X56	1	(1800>AUTOMATIC TRANSMISSION) - 910601 BG -531424	€ 15,74

» 24701

YOKE

Part Number	Qty.	Specifications	Price
B66018X65	1	(1300>MANUAL TRANSMISSION) (1800>MANUAL TRANSMISSION>W/TURBO)	€ 189,07
F21018X65	1	JAPAN MAKE (1300>AUTOMATIC TRANSMISSION) 1600 (1800>MANUAL TRANSMISSION>W/O TURBO)	€ 135,04
JF0118X65	1	(1800>AUTOMATIC TRANSMISSION)	€ 135,04

» 24710

BRACKET,FRONT

Part Number	Qty.	Specifications	Price
B50518X00	1	MITSUBISHI (1300>MANUAL TRANSMISSION) (1800>MANUAL TRANSMISSION>W/TURBO)	€ 63,85
B59318X00	1	(1300>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION>W/O EGI) 930801 - BG788984-	€ 72,12
B6S818X00	1	(1300>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION>W/O EGI) - 930801 BG -788984	€ 61,23
F2D418X00	1	(1800>AUTOMATIC TRANSMISSION)	€ 59,61

» 24712

STOPPER SET

Part Number	Qty.	Specifications	Price
E35618X30	1	(1800>MANUAL TRANSMISSION) 1300 1600	€ 4,74
N32618X30	1	MITSUBISHI (1800>AUTOMATIC TRANSMISSION)	€ 8,25

» 24720

ARMATURE

Part Number	Qty.	Specifications	Price
B6S818X60	1	NON ASBESTOS (1300>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION>W/O EGI) - 930801 BG -788984	€ 190,90
F21418X60A	1	NON ASBESTOS (1800>AUTOMATIC TRANSMISSION)	€ 223,51
F8B118X60	1	MITSUBISHI (1300>MANUAL TRANSMISSION) (1800>MANUAL TRANSMISSION>W/TURBO)	€ 194,72
HE6618X60A	1	0.9KW (1300>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION>W/O EGI) 930801 - BG788984-	€ 278,08

» 247222

SLEEVE,BEARING-REAR

Part Number	Qty.	Specifications	Price
E35618X81	1	(1800>MANUAL TRANSMISSION) 1300 1600	€ 6,27
N32618X62A	1	MITSUBISHI (1800>AUTOMATIC TRANSMISSION)	€ 10,67

» 24725

SCREW SET

Part Number	Qty.	Specifications	Price
E35618X95	1	MITSUBISHI	€ 2,95

» 24726

WASHER SET

Part Number	Qty.	Specifications	Price
E35618X92	1	(1800>MANUAL TRANSMISSION) 1300 1600	€ 7,33
N32618X92	1	(1800>AUTOMATIC TRANSMISSION)	€ 7,98

» 24729

BOLT

Part Number	Qty.	Specifications	Price
N32618X91	2	(1800>AUTOMATIC TRANSMISSION)	€ 5,57

» 24730

LEVER

Part Number	Qty.	Specifications	Price
E35618X05	1	MITSUBISHI (1800>MANUAL TRANSMISSION) 1300 1600	€ 7,29
N32618X05	1	(1800>AUTOMATIC TRANSMISSION)	€ 9,51

» 24740

BRACKET,REAR

Part Number	Qty.	Specifications	Price
E35618X80	1	MITSUBISHI (1800>MANUAL TRANSMISSION) 1300 1600	€ 19,46
JF0118X80A	1	(1800>AUTOMATIC TRANSMISSION)	€ 28,73

» 24740A

SHAFT,PINION

Part Number	Qty.	Specifications	Price
F21418X40	1	(1800>AUTOMATIC TRANSMISSION)	€ 249,49

» 247432

BEARING,FRONT

Part Number	Qty.	Specifications	Price
E35618X01	1	MITSUBISHI (1300>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION>W/O EGI) 930801 - BG788984-	€ 14,57
F21018X01	1	(1300>AUTOMATIC TRANSMISSION) (1600>MANUAL TRANSMISSION>W/O EGI) - 930801 BG -788984	€ 16,89

» 24744A

BALL,STEEL

Part Number	Qty.	Specifications	Price
N32618X93	1	MITSUBISHI (1800>AUTOMATIC TRANSMISSION)	€ 0,94

» 24746

GEAR

Part Number	Qty.	Specifications	Price
N32618X57	3	MITSUBISHI (1800>AUTOMATIC TRANSMISSION)	€ 15,37

» 24746A

PINION

Part Number	Qty.	Specifications	Price
F21418X25	1	MITSUBISHI (1800>AUTOMATIC TRANSMISSION)	€ 55,87

» 24750

HOLDER,BRUSH

Part Number	Qty.	Specifications	Price
B63018X70	1	(1300>MANUAL TRANSMISSION) (1800>MANUAL TRANSMISSION>W/TURBO)	€ 32,31
F21018X70	1	(1300>AUTOMATIC TRANSMISSION) 1600 (1800>MANUAL TRANSMISSION>W/O TURBO)	€ 31,30
F21418X70	1	(1800>AUTOMATIC TRANSMISSION)	€ 32,31

» 24752

SPRING,BRUSH

Part Number	Qty.	Specifications	Price
022224752A	4	(1300>AUTOMATIC TRANSMISSION) 1600 (1800>MANUAL TRANSMISSION>W/O TURBO)	€ 2,97
N31818X71	2	ILLUST. NO.1 (1800>AUTOMATIC TRANSMISSION)	€ 3,57
N32618X71	2	ILLUST. NO.2 (1800>AUTOMATIC TRANSMISSION)	€ 3,57

» 24753

BRUSH,YOKE

Part Number	Qty.	Specifications	Price
B63018X66	2	(1300>MANUAL TRANSMISSION) (1800>MANUAL TRANSMISSION>W/TURBO)	€ 8,42
E30124753	2	(1300>AUTOMATIC TRANSMISSION) 1600 (1800>MANUAL TRANSMISSION>W/O TURBO)	€ 5,84
F21418X66	1	(1800>AUTOMATIC TRANSMISSION)	€ 6,25

» 24760

SWITCH

Part Number	Qty.	Specifications	Price
E35618X10	1	MITSUBISHI (1300>MANUAL TRANSMISSION) (1800>AUTOMATIC TRANSMISSION) (1800>MANUAL TRANSMISSION>W/TURBO)	€ 74,91
FE1J18X10	1	(1300>AUTOMATIC TRANSMISSION) 1600 (1800>MANUAL TRANSMISSION>W/O TURBO)	€ 78,31

» 24760A

GASKET

Part Number	Qty.	Specifications	Price
N32618X87	1	(1800>AUTOMATIC TRANSMISSION)	€ 3,46
