Mazda 323 BG 1991-03 Mazda Cooling System 01/02 (3DR,4DR) 02/02 (5DR)

Mazda parts catalog

Parts > Mazda 323 > 1991-03 > Gasoline-engine 4-cylinder Supplement > Cooling System(gasoline)(ohc)

Search by part number:

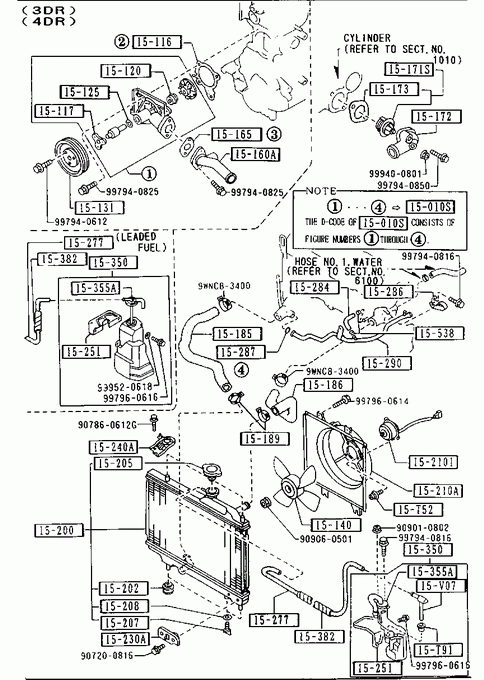

Cooling System(gasoline)(ohc)

01/02 (3DR,4DR)
02/02 (5DR)

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AB715010	1	NON ASBESTOS	€ 91,60

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
B62115116A	1	NON ASBESTOS	€ 4,23

» 15117

BOSS,W.PUMP PULLEY

Part Number	Qty.	Specifications	Price
E30115117	1		€ 16,43

» 15120

SEAL,WATER-PUMP

Part Number	Qty.	Specifications	Price
B63015120	1		€ 17,58

» 15125

PLATE,WATER BAFFLE

Part Number	Qty.	Specifications	Price
F80115125A	1	- 930410 BG -763980	€ 1,27

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
B36615131A	1		€ 18,75

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
B36615140A	1	DENSO STD RADIATOR (3-DOOR>MANUAL TRANSMISSION>2WD) (4-DOOR>MANUAL TRANSMISSION>2WD)	€ 41,32
BP2615140A	1	CALSONIC HEAVY DUTY RADIATOR (3-DOOR>AUTOMATIC TRANSMISSION) (4-DOOR>AUTOMATIC TRANSMISSION) 920401 - BG644538-	€ 39,57
F62215141	1	DENSO (5-DOOR>AUTOMATIC TRANSMISSION)	€ 33,96
FEH515140	1	DENSO (3-DOOR>MANUAL TRANSMISSION>4WD) (4-DOOR>MANUAL TRANSMISSION>4WD) (5-DOOR>MANUAL TRANSMISSION)	€ 36,54

» 15160A

INLET,WATER PUMP

Part Number	Qty.	Specifications	Price
B36615161	1		€ 31,38

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
B36615165	1	A (B621-15-165) 911101 - 930212 BG590283-744267	€ 3,96
B62115165	1	NON ASBESTOS - 911101 BG -590283	€ 2,90

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AB715171	1	NON ASBESTOS - 920210 BG -624717	€ 20,96
8ABC15171	1	920210 - BG624717-	€ 31,84

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
B36615172	1		€ 15,84

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
B36615173	1	AN (B621-15-173) 911101 - 930701 BG590283-781353	€ 4,85
B62115173	1	NON ASBESTOS - 911101 BG -590283	€ 5,10

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
B36615185A	1		€ 18,73

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
B36615186A	1	3-DOOR 4-DOOR	€ 14,94
B54615186	1	5-DOOR	€ 16,12

» 15189

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B36615182	2		€ 3,79

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
B38815200C	1	DENSO HEAVY DUTY RADIATOR (3-DOOR>MANUAL TRANSMISSION>W/EGI>2WD) (4-DOOR>MANUAL TRANSMISSION>W/EGI>1300)	€ 639,12
B54715200D	1	CALSONIC (5-DOOR>AUTOMATIC TRANSMISSION) - 931201 BG -811150	€ 335,26
B54715200E	1	(5-DOOR>AUTOMATIC TRANSMISSION) 931201 - BG811150-	€ 345,38
B55715200C	1	CALSONIC (3-DOOR>AUTOMATIC TRANSMISSION>W/EGI) (4-DOOR>AUTOMATIC TRANSMISSION>W/EGI) - 931201 BG -811150	€ 335,26
B55715200D	1	(3-DOOR>AUTOMATIC TRANSMISSION>W/EGI) (4-DOOR>AUTOMATIC TRANSMISSION>W/EGI) 931201 - BG811150-	€ 260,57
B61L15200E	1	CALSONIC (3-DOOR>AUTOMATIC TRANSMISSION>W/O EGI) (4-DOOR>AUTOMATIC TRANSMISSION>W/O EGI) - 931201 BG -811150
B61L15200F	1	(3-DOOR>AUTOMATIC TRANSMISSION>W/O EGI) (4-DOOR>AUTOMATIC TRANSMISSION>W/O EGI) 931201 - BG811150-
B61S15200D	1	CALSONIC STD RADIATOR (3-DOOR>MANUAL TRANSMISSION>W/O EGI) (3-DOOR>MANUAL TRANSMISSION>W/EGI>2WD) (4-DOOR>MANUAL TRANSMISSION>W/O EGI) (4-DOOR>MANUAL TRANSMISSION>W/EGI>2WD) - 931201	€ 315,49
B61S15200E	1	STD RADIATOR (3-DOOR>MANUAL TRANSMISSION>W/O EGI) (3-DOOR>MANUAL TRANSMISSION>W/EGI>2WD) (4-DOOR>MANUAL TRANSMISSION>W/O EGI) (4-DOOR>MANUAL TRANSMISSION>W/EGI>2WD) 931201 -	€ 325,01
B63F15200C	1	CALSONIC (5-DOOR>MANUAL TRANSMISSION>W/O EGI>UNLEADED FUEL) - 931201 BG -811150
B63F15200D	1	(5-DOOR>MANUAL TRANSMISSION>W/O EGI>UNLEADED FUEL) 931201 - BG811150-	€ 325,01
B68B15200	1	HEAVY DUTY RADIATOR (4-DOOR>MANUAL TRANSMISSION>W/EGI>1600) 960801 - BG862027-
B6S715200E	1	CALSONIC HEAVY DUTY RADIATOR (3-DOOR>MANUAL TRANSMISSION>W/O EGI) (4-DOOR>MANUAL TRANSMISSION>W/O EGI) - 931201 BG -811150	€ 315,49
B6S715200F	1	CALSONIC HEAVY DUTY RADIATOR (3-DOOR>MANUAL TRANSMISSION>W/O EGI) (4-DOOR>MANUAL TRANSMISSION>W/O EGI) 931201 - BG811150-	€ 325,01
BP2815200C	1	CALSONIC (5-DOOR>MANUAL TRANSMISSION>W/O EGI>LEADED FUEL) (5-DOOR>MANUAL TRANSMISSION>W/EGI) - 931201 BG -811150	€ 315,49
BP2815200D	1	(5-DOOR>MANUAL TRANSMISSION>W/O EGI>LEADED FUEL) (5-DOOR>MANUAL TRANSMISSION>W/EGI) 931201 - BG811150-	€ 325,01

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
B36615202B	2	CALSONIC HEAVY DUTY RADIATOR (1600>W/EGI>AUTOMATIC TRANSMISSION)	€ 9,61
B54115202A	2	DENSO HEAVY DUTY RADIATOR (1300>W/EGI)	€ 15,13
B58115202	2	HEAVY DUTY RADIATOR (1300>W/O EGI) (1600>W/EGI>MANUAL TRANSMISSION) 960801 - BG862027-

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
D31615205	1	CALSONIC	€ 14,93
FEG815205	1	DENSO	€ 13,67

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
037015207	1	CALSONIC - 950110 BG -848315	€ 3,18
084215316	1	DENSO	€ 4,99
NF0115203	1	CALSONIC 950110 - BG848315-	€ 8,27

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
071015204	1	DENSO	€ 1,74
222815208	1	CALSONIC - 950110 BG -848315	€ 1,77

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
B36615150B	1	(3-DOOR>MANUAL TRANSMISSION>2WD) (4-DOOR>MANUAL TRANSMISSION>2WD) STD RADIATOR	€ 224,15
B3B715150A	1	HEAVY DUTY RADIATOR (4-DOOR>AUTOMATIC TRANSMISSION) (3-DOOR>AUTOMATIC TRANSMISSION) 920401 - 960801 BG644538-862027
B61H15150A	1	(3-DOOR>MANUAL TRANSMISSION>4WD) (4-DOOR>MANUAL TRANSMISSION>4WD) (5-DOOR>MANUAL TRANSMISSION)	€ 245,74
B61J15150A	1	(5-DOOR>AUTOMATIC TRANSMISSION)	€ 281,07
BP2615150B	1	HEAVY DUTY RADIATOR (4-DOOR>AUTOMATIC TRANSMISSION) 960801 - BG862027-	€ 215,44

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
B36615210B	1	(3-DOOR>MANUAL TRANSMISSION>W/EGI>2WD) (4-DOOR>MANUAL TRANSMISSION>W/EGI>2WD)	€ 68,12
B61H15210B	1	(5-DOOR>MANUAL TRANSMISSION>W/EGI)	€ 70,58
B61J15210B	1	(5-DOOR>AUTOMATIC TRANSMISSION)	€ 75,69
B61K15210A	1	HEAVY DUTY RADIATOR (4-DOOR>MANUAL TRANSMISSION>W/EGI>2WD)	€ 69,51
B61V15210	1	(3-DOOR>MANUAL TRANSMISSION>W/O EGI) (4-DOOR>MANUAL TRANSMISSION>W/O EGI) STD RADIATOR	€ 95,83
B61W15210	1	(3-DOOR>AUTOMATIC TRANSMISSION>W/O EGI) (4-DOOR>AUTOMATIC TRANSMISSION>W/O EGI)	€ 73,02
B63F15210A	1	(5-DOOR>MANUAL TRANSMISSION>W/O EGI)	€ 73,43
BP2615210A	1	HEAVY DUTY RADIATOR (3-DOOR>AUTOMATIC TRANSMISSION>W/EGI) (4-DOOR>AUTOMATIC TRANSMISSION>W/EGI) 920401 - BG644538-	€ 73,02

» 15230A

BRACKET,RADIATOR LWR

Part Number	Qty.	Specifications	Price
B36615230	2		€ 7,86

» 15240A

BRACKET,RADIATOR UP.

Part Number	Qty.	Specifications	Price
B36615240A	2	AN (B366-15-240B) W/O EGI - 960401 BG -859725	€ 31,97
B36615240B	2	W/O EGI 960401 - BG859725-	€ 33,26
B6S715240A	2	AN (B6S7-15-240B) W/EGI - 960401 BG -859725	€ 32,32
B6S715240B	2	W/EGI 960401 - BG859725-	€ 33,63

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
B36615371A	1	4-DOOR 3-DOOR	€ 17,00
B54615371A	1	(5-DOOR>LEADED FUEL)
B61H15370	1	(5-DOOR>UNLEADED FUEL)	€ 19,59

» 15277

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
B36615381	1	A (B366-15-380) 3-DOOR 4-DOOR	€ 6,62
B54615381	1	(5-DOOR>LEADED FUEL)
B61H15380A	1	(5-DOOR>UNLEADED FUEL)	€ 9,14

» 15284

HOSE,WATER

Part Number	Qty.	Specifications	Price
B54115261	1	A (B541-15-261A) 1300 1600 - 930712 BG -783381	€ 7,53
B54115261A	1	A (B541-15-261B) 1300 1600 930712 - 960808 BG783381-862285	€ 7,53
B54115261B	1	1600 960808 - BG862285-	€ 7,83
BP0115261	1	1800	€ 8,24

» 15286

CLIP,BYPASS PIPE

Part Number	Qty.	Specifications	Price
B36615286	1	1300 1600	€ 2,82
B6S715286	1	1800	€ 5,46

» 15287

RING,'O'-WATER BYPASS

Part Number	Qty.	Specifications	Price
E30115287	1		€ 1,97

» 15290

PIPE,BYPASS

Part Number	Qty.	Specifications	Price
B38315290A	1	(1300>W/O EGI) (1600>W/O EGI)	€ 30,76
B66S15290	1	(1300>W/EGI) (1600>W/EGI)	€ 29,02
BP0115290C	1	1800	€ 28,99

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
B36615350C	1	A (B366-15-350D) (4-DOOR>LEADED FUEL) (3-DOOR>LEADED FUEL) - 910701 BG -547705
B36615350D	1	(4-DOOR>UNLEADED FUEL) (3-DOOR>UNLEADED FUEL) 940201 - BG824141-	€ 34,92
B54615350C	1	A (B546-15-350D) (5-DOOR>LEADED FUEL) - 910701 BG -547705
B54615350D	1	(5-DOOR>LEADED FUEL) 910701 - BG547705-	€ 51,90
B61H15350	1	A (B61H-15-350A) (5-DOOR>UNLEADED FUEL) - 910701 BG -547705	€ 33,57
B61H15350A	1	(5-DOOR>UNLEADED FUEL) 910701 - BG547705-	€ 34,92
B6S715350D	1	A (B6S7-15-350E) (4-DOOR>UNLEADED FUEL) (3-DOOR>UNLEADED FUEL) - 910701 BG -547705	€ 33,23
B6S715350E	1	(4-DOOR>UNLEADED FUEL) (3-DOOR>UNLEADED FUEL) 910701 - 940201 BG547705-824141	€ 33,23

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
B36615355	1	(4-DOOR>UNLEADED FUEL) (3-DOOR>UNLEADED FUEL) 940201 - BG824141-	€ 12,86
B54615355A	1	(5-DOOR>LEADED FUEL)
B61H15355	1	(5-DOOR>UNLEADED FUEL)	€ 11,34
B6S715355A	1	(4-DOOR>UNLEADED FUEL) (3-DOOR>UNLEADED FUEL) - 940201 BG -824141	€ 11,34

» 15382

PROTECTOR,HOSE-SUB TANK

Part Number	Qty.	Specifications	Price
F20115382	1	- 930701 BG -781353	€ 2,16
PN4015382	1	930701 - BG781353-	€ 3,07

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B6BF15538	2	960201 - BG857737-	€ 2,10
JF0215538	2	- 960201 BG -857737	€ 2,51

» 15T52

SCREW

Part Number	Qty.	Specifications	Price
B6S815T52	3	HEAVY DUTY RADIATOR (3-DOOR>AUTOMATIC TRANSMISSION) (4-DOOR>AUTOMATIC TRANSMISSION) 920401 - BG644538-	€ 1,26
FE6815T52	3	STD RADIATOR (3-DOOR>AUTOMATIC TRANSMISSION) (4-DOOR>AUTOMATIC TRANSMISSION)	€ 0,66

» 15T91

GASKET

Part Number	Qty.	Specifications	Price
B36615T91	1	3-DOOR 4-DOOR 920601 - BG663001-

» 15V07

PIPE,SUBTANK

Part Number	Qty.	Specifications	Price
B36615V07	1	3-DOOR 4-DOOR 920601 - BG663001-	€ 6,02

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200816	1		€ 1,04

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612G	1		€ 2,68

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909010802	1		€ 2,18

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909060501	1		€ 0,51

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520618	1		€ 0,41

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3400	1		€ 4,02

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940816	1		€ 0,79

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940825	1		€ 1,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940850	1		€ 2,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960614	1		€ 0,48

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

Cooling System(gasoline)(ohc)
