Mazda 323 BG 1991-03 Mazda Air Cleaner 01/02 (1300) 02/02 (1600)

Mazda parts catalog

Parts > Mazda 323 > 1991-03 > Gasoline-engine 4-cylinder Supplement > Air Cleaner(gasoline)(w/o Egi)

Search by part number:

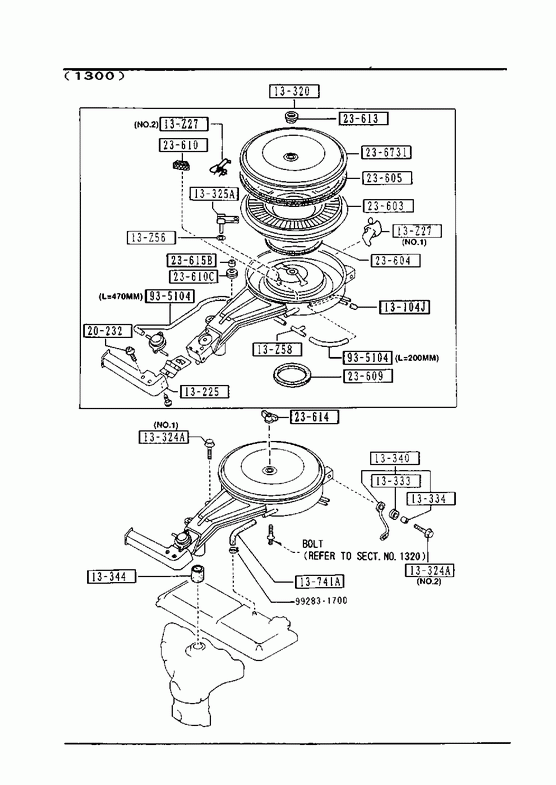

Air Cleaner(gasoline)(w/o Egi)

01/02 (1300)
02/02 (1600)

CAP,BLIND

Part Number	Qty.	Specifications	Price
101013104	1	W/AIR CON.	€ 2,55

» 13225

DUCT,FRESH AIR

Part Number	Qty.	Specifications	Price
B36613201	1	1600	€ 45,86
B3F313201	1	A (B3F3-13-201A) 1300 - 940401 BG -835844
B3F313201A	1	1300 940401 - 940701 BG835844-843019
B3F313201B	1	1300 940701 - BG843019-	€ 43,67

» 13320

CLEANER,AIR

Part Number	Qty.	Specifications	Price
B3F313320	1	1300 WET TYPE	€ 504,62
B3F713320	1	DRY TYPE 1300 930823 - BG792451-
B61V13320	1	1600 WET TYPE	€ 275,52
B6CS13320	1	DRY TYPE 1600 930823 - BG792451-

» 13324A

BOLT

Part Number	Qty.	Specifications	Price
B36613324	1	ILLUST. NO.1	€ 2,93
B54113324	1	ILLUST. NO.2

» 13325A

VALVE,AIR THERMO

Part Number	Qty.	Specifications	Price
B10213325	1	1300	€ 37,87

» 13333

RUBBER,INSULATION

Part Number	Qty.	Specifications	Price
E30113333	1		€ 4,86

» 13334

SPACER

Part Number	Qty.	Specifications	Price
E30113334	1		€ 1,70

» 13340

SUPPORT,AIR CLEANER

Part Number	Qty.	Specifications	Price
B36620260A	1	1600
B38420260	1	1300

» 13344

HOSE,HOT AIR

Part Number	Qty.	Specifications	Price
B36613344A	1		€ 3,75

» 13741A

HOSE,VENTILATION

Part Number	Qty.	Specifications	Price
B36613741	1

» 13Z27

CLIP

Part Number	Qty.	Specifications	Price
B36613Z27	4	ILLUST. NO.1	€ 4,28
B38413Z27	1	ILLUST. NO.2 1300
B61V13Z27	1	ILLUST. NO.3 1600

» 13Z56

GASKET,INTAKE-TEMP COMPEN

Part Number	Qty.	Specifications	Price
B10213Z56	1	NON ASBESTOS 1300	€ 1,72

» 13Z58

CONNECTOR,INTAKE-TEMP COM

Part Number	Qty.	Specifications	Price
B10213Z58	1	1300

» 20232

SCREW,COVER-AIR CLEANER

Part Number	Qty.	Specifications	Price
B36620232	2

» 23603

ELEMENT,AIR CLEANER

Part Number	Qty.	Specifications	Price
B36613Z40	1	WET TYPE	€ 14,24
B3F713Z40	1	DRY TYPE 930823 - BG792451-

» 23604

GASKET,ELEMENT

Part Number	Qty.	Specifications	Price
B36613Z03	1	NON ASBESTOS

» 23605

GASKET,COVER

Part Number	Qty.	Specifications	Price
B36613Z04	1	NON ASBESTOS 1600
B54113Z04	1	1300

» 23609

GASKET

Part Number	Qty.	Specifications	Price
B67H13Z13	1	1300
E35623609	1	1600	€ 4,41

» 23610

ELEMENT,BREATHER

Part Number	Qty.	Specifications	Price
B36613Z07	1	- 930101 BG -728885	€ 1,58
E30123610	1	AN (FE85-13-Z07) 930101 - BG728885-	€ 2,06

» 23610C

INSULATOR

Part Number	Qty.	Specifications	Price
E36713Z08	1	1300	€ 2,16
F60123610	1	A (F801-23-610) 1600	€ 2,75

» 23613

WASHER,SEAL

Part Number	Qty.	Specifications	Price
B36613Z29	1	1300
E35813Z29	1	1600	€ 2,43

» 23614

NUT,WING

Part Number	Qty.	Specifications	Price
E36713Z28	1

» 23615B

COLLAR

Part Number	Qty.	Specifications	Price
E36713Z11	1	1300	€ 8,53

» 236731

COVER,AIR CLEANER

Part Number	Qty.	Specifications	Price
B36613Z01	1	1600
B3F313Z01	1	1300

» 935104

HOSE

Part Number	Qty.	Specifications	Price
9935104999	1	L=1M CUT IT TO USE 1300	€ 11,63

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831700	1		€ 2,52

Air Cleaner(gasoline)(w/o Egi)
