Mazda 323 BG 1991-03 Mazda Torque Converter,oil Pump & Pipings

Mazda parts catalog

Parts > Mazda 323 > 1991-03 > Gasoline-engine 4-cylinder & Transmission > Torque Converter,oil Pump & Pipings(automatic Transmission 3-speed)

Search by part number:

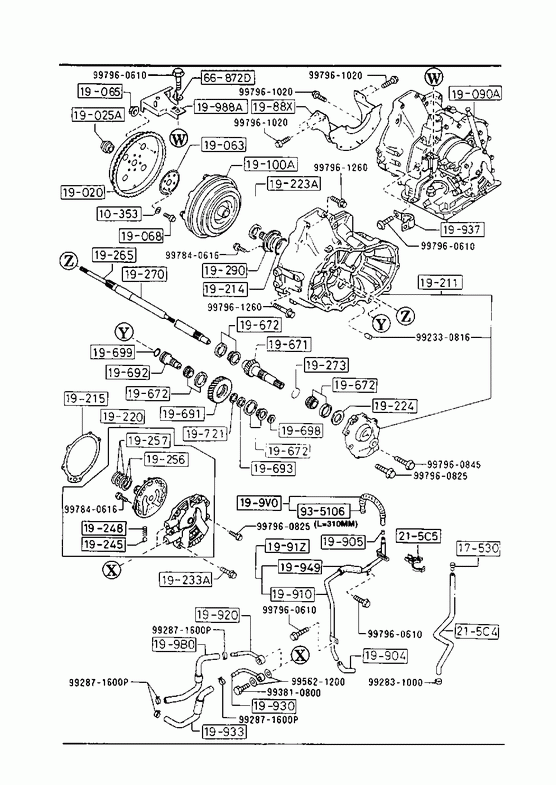

Torque Converter,oil Pump & Pipings(automatic Transmission 3-speed)

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
029010353	6		€ 1,23

» 17530

BREATHER,AIR

Part Number	Qty.	Specifications	Price
088417530	1		€ 3,73

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FT6519020A	1		€ 116,14

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
FU6019025	1		€ 5,65

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
FT3119063	1		€ 2,24

» 19065

NUT

Part Number	Qty.	Specifications	Price
FU5119065	4		€ 1,35

» 19068

BOLT,LOCK

Part Number	Qty.	Specifications	Price
FT3119064	6		€ 1,36

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FT6619090	1	NON ASBESTOS - 910401 BG -502456
FT6619090A	1	A (FT66-19-090B) 910401 - 910819 BG502456-567035
FT6619090B	1	910819 - BG567035-

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FT6219100	1	A (FT62-19-100A) - 910819 BG -567035
FT6219100A	1	910819 - BG567035-	€ 939,86

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FT6219190A	1

» 19214

RING,'O'

Part Number	Qty.	Specifications	Price
FT0119214	1		€ 3,69

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
FT5519221	1	NON ASBESTOS	€ 5,12

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FT0119220A	1	AN (FT96-19-220)	€ 311,21

» 19223A

SEAL,OIL

Part Number	Qty.	Specifications	Price
FT0119223	1		€ 5,64

» 19224

SHIM

Part Number	Qty.	Specifications	Price
FT0119224	3	T=0.1MM	€ 1,36
FT0119225	3	T=0.12MM	€ 1,59
FT0119226	3	T=0.14MM	€ 1,59
FT0119227	3	T=0.16MM	€ 1,08
FT0119228	3	T=0.18MM	€ 1,08
FT0119229	3	T=0.5MM	€ 1,41

» 19233A

BOLT

Part Number	Qty.	Specifications	Price
FT0119233	3		€ 1,59

» 19245

BALL

Part Number	Qty.	Specifications	Price
033819245A	1

» 19248

SPRING

Part Number	Qty.	Specifications	Price
033819248	1

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
BU0119256	2		€ 6,32

» 19257

RING,SEAL

Part Number	Qty.	Specifications	Price
BU0119257	2		€ 6,32

» 19265

SHAFT,OIL PUMP

Part Number	Qty.	Specifications	Price
FT0519265	1		€ 19,82

» 19270

SHAFT,TURBINE

Part Number	Qty.	Specifications	Price
FT0119270B	1		€ 74,69

» 19273

RING,SNAP

Part Number	Qty.	Specifications	Price
FT0119273	1

» 19290

COVER,BEARING

Part Number	Qty.	Specifications	Price
FT0119290A	1		€ 37,72

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FT2319671	1

» 19672

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FT0119672	4		€ 12,95

» 19691

GEAR,IDLE

Part Number	Qty.	Specifications	Price
FT2319691	1

» 19692

SHAFT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0119692	1

» 19693

SPACER,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0119693	1

» 19698

NUT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FT0119698	1

» 19699

RING,'O'

Part Number	Qty.	Specifications	Price
FT0119699	1		€ 1,81

» 19721

SHIM

Part Number	Qty.	Specifications	Price
FT0119721	3	T=0.1MM
FT0119722	3	T=0.12MM	€ 0,25
FT0119723	3	T=0.14MM
FT0119724	3	T=0.16MM
FT0119725	3	T=0.2MM	€ 0,25
FT0119726	3	T=0.5MM

» 1988X

STIFFENER

Part Number	Qty.	Specifications	Price
FT621988XB	1		€ 17,73

» 19904

HOSE,VACUUM

Part Number	Qty.	Specifications	Price
033819904A	1

» 19905

INSERT

Part Number	Qty.	Specifications	Price
FT0119905	1

» 19910

PIPE,VACUUM

Part Number	Qty.	Specifications	Price
FT6219910C	1	A (FT62-19-910D) - 930209 BG -742565
FT6219910D	1	A (FT62-19-91Z) 930209 - BG742565-

» 1991Z

PIPE,VACUUM

Part Number	Qty.	Specifications	Price
FT621991Z	1	930209 - BG742565-

» 19920

PIPE,OIL

Part Number	Qty.	Specifications	Price
FT6219920B	1	A (FT62-19-920C)

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
FT6219930A	1	AN (FT62-19-930B)

» 19933

HOSE,OIL

Part Number	Qty.	Specifications	Price
FT62199E0	1

» 19937

CLIP

Part Number	Qty.	Specifications	Price
FT6219937	1

» 19949

PROTECTOR

Part Number	Qty.	Specifications	Price
FT6219949	1	930209 - BG742565-

» 19988A

BRACKET,COUPLER

Part Number	Qty.	Specifications	Price
FT6219988A	1

» 199B0

HOSE,OIL-OIL PUMP

Part Number	Qty.	Specifications	Price
FT62199B0B	1

» 199V0

HOSE,VACUUM

Part Number	Qty.	Specifications	Price
FT62199V0A	1

» 215C4

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
FT62215C4C	1		€ 12,27

» 215C5

CLIP,HOSE

Part Number	Qty.	Specifications	Price
FU62215C5A	1		€ 1,60

» 66872D

TAB,EARTH

Part Number	Qty.	Specifications	Price
B45666994	1		€ 4,10

» 935106

HOSE

Part Number	Qty.	Specifications	Price
9935106999	1	L=1M CUT IT TO USE	€ 14,42

» 99220

Part Number	Qty.	Specifications	Price
992330816	1		€ 0,73

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992871600P	1		€ 2,93

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993810800	1		€ 2,65

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621200	1		€ 1,21

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960825	1		€ 1,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960845	1		€ 1,53

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961260	1		€ 2,95

Torque Converter,oil Pump & Pipings(automatic Transmission 3-speed)
