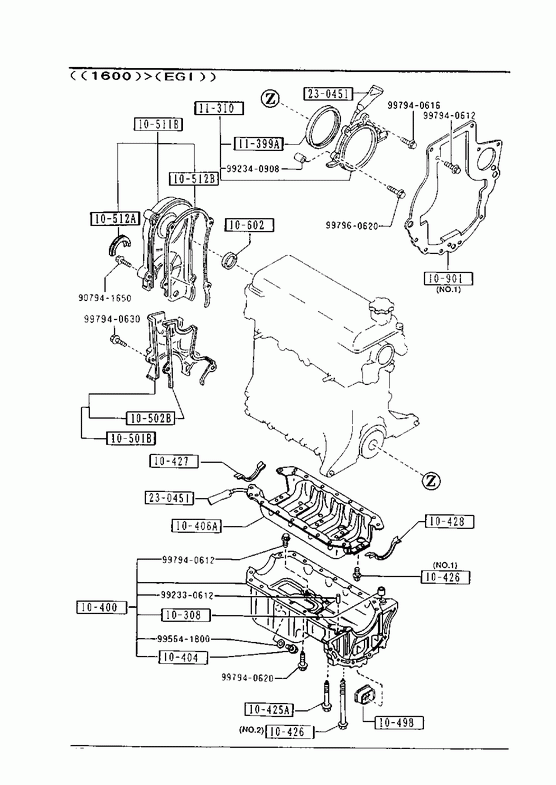

Oil Pan & Timing Cover(gasoline)(1300cc & 1600cc)
-
» 10308 PIN,TUBULAR Part Number Qty. Specifications Price B6F410308 1 (1600>W/EGI) € 2,42 » 10400 PAN,OIL Part Number Qty. Specifications Price B36610400A 1 1300
(1600>W/O EGI)€ 126,81 B67S10400A 1 (1600>W/EGI>MANUAL TRANSMISSION) € 202,04 B67S10400B 1 AN (B67S-10-400C)
(1600>W/EGI>MANUAL TRANSMISSION)» 10404 PLUG,DRAIN Part Number Qty. Specifications Price B6S710404A 1 (1600>W/EGI) € 2,74 HE0310404 1 (1600>W/O EGI)
1300€ 2,18 » 10406A PLATE,OIL BAFFLE Part Number Qty. Specifications Price B5411040YB 1 € 84,37 » 10425A BOLT Part Number Qty. Specifications Price B6S710466 2 (1600>W/EGI) € 2,35 » 10426 BOLT Part Number Qty. Specifications Price B54110426B 8 ILLUST. NO.1 € 2,50 B6S710465 2 ILLUST. NO.2
(1600>W/EGI)€ 2,35 » 10427 GASKET,OIL PAN Part Number Qty. Specifications Price B54110427 1 NON ASBESTOS € 14,05 » 10428 GASKET,OIL PAN Part Number Qty. Specifications Price B54110428 1 NON ASBESTOS € 14,05 » 10498 CAP,BLIND-OIL PAN Part Number Qty. Specifications Price B6S710498 1 (1600>AUTOMATIC TRANSMISSION) € 4,68 » 10501B COVER,TIMING BELT-LWR Part Number Qty. Specifications Price B63010500D 1 € 29,13 » 10502B GASKET Part Number Qty. Specifications Price B63010502B 1 NON ASBESTOS € 16,81 » 10511B COVER,TIMING BELT-UP Part Number Qty. Specifications Price B63010510B 1 € 50,77 » 10512A GASKET,T.BELT COVER-UP Part Number Qty. Specifications Price B63010513 1 € 14,51 » 10512B GASKET,T.B.COVER UP. Part Number Qty. Specifications Price B63010512A 1 NON ASBESTOS € 17,43 » 10602 SEAL,OIL-CAMSHAFT Part Number Qty. Specifications Price B63010602 1 921101 -
BG****703902-€ 7,35 RF0112602 1 A (BP01-10-602)
- 921101
BG**** -703902€ 7,35 » 10901 PLATE,END Part Number Qty. Specifications Price B54110903 1 ILLUST. NO.2
(1600>W/O EGI)€ 4,25 B6S710901A 1 ILLUST. NO.1 € 30,28 » 11310 COVER,REAR Part Number Qty. Specifications Price B36611310C 1 RYOBI € 98,83 » 11399A SEAL,OIL-CRANKSHAFT Part Number Qty. Specifications Price BP0511312 1 € 24,47 » 230451 TUBE,SILICON Part Number Qty. Specifications Price 852777739 1 € 39,13 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907941650 1 € 1,89 » 99201 WASHER Part Number Qty. Specifications Price 995641800 1 € 1,18 » 99220 PIN Part Number Qty. Specifications Price 992330612 1 € 0,71 » 99234 PIN,TUBULAR Part Number Qty. Specifications Price 992340908 1 € 2,06 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612 1 € 0,87 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616 1 € 1,28 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940620 1 € 3,14 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940630 1 € 1,18 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960620 1 € 1,18
