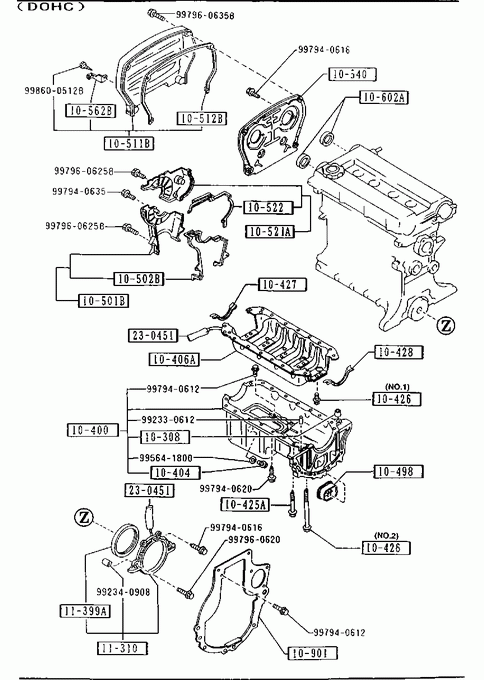

Oil Pan & Timing Cover(gasoline)(1800cc)
-
» 10308 PIN,TUBULAR Part Number Qty. Specifications Price B6F410308 1 € 2,42 » 10400 PAN,OIL Part Number Qty. Specifications Price BP0110400F 1 A (BP01-10-400G)
(W/O TURBO>MANUAL TRANSMISSION)
- 910801
BG**** -563131€ 194,20 BP0110400G 1 A (BP01-10-400H)
(W/O TURBO>MANUAL TRANSMISSION)
910801 - 920818
BG****563131-687122€ 194,20 BP0110400H 1 A (BP01-10-400J)
(W/O TURBO>MANUAL TRANSMISSION)
920818 - 920819
BG****687122-687575BP0110400J 1 A (BP01-10-400K)
(W/O TURBO>MANUAL TRANSMISSION)
920819 - 931001
BG****687575-799442€ 194,20 BP0110400K 1 (W/O TURBO>MANUAL TRANSMISSION)
931001 -
BG****799442-€ 279,41 BP0210400F 1 A (BP02-10-400H)
(W/O TURBO>AUTOMATIC TRANSMISSION)
- 930101
BG**** -728885BP0210400H 1 (W/O TURBO>AUTOMATIC TRANSMISSION)
930101 -
BG****728885-€ 202,04 BP2610400F 1 A (BP26-10-400G)
W/TURBO
- 910801
BG**** -563131BP2610400G 1 W/TURBO
910801 - 920518
BG****563131-658528€ 194,20 BPC810400 1 W/TURBO
920518 -
BG****658528-€ 202,04 » 10404 PLUG,DRAIN Part Number Qty. Specifications Price B6S710404A 1 € 2,74 » 10406A PLATE,OIL BAFFLE Part Number Qty. Specifications Price BP011040YA 1 € 84,37 » 10425A BOLT Part Number Qty. Specifications Price B6S710466 2 € 2,35 » 10426 BOLT Part Number Qty. Specifications Price B54110426B 8 ILLUST. NO.1 € 2,50 B6S710465 2 ILLUST. NO.2 € 2,35 » 10427 GASKET,OIL PAN Part Number Qty. Specifications Price B54110427 1 NON ASBESTOS € 14,05 » 10428 GASKET,OIL PAN Part Number Qty. Specifications Price B54110428 1 NON ASBESTOS € 14,05 » 10498 CAP,BLIND-OIL PAN Part Number Qty. Specifications Price B6S710498 1 AUTOMATIC TRANSMISSION € 4,68 » 10501B COVER,TIMING BELT-LWR Part Number Qty. Specifications Price B63010500D 1 OHC € 29,13 B66010500E 1 A (B660-10-501E)
DOHC
- 930601
BG**** -773461€ 39,71 B66010501E 1 DAIKYOH
DOHC
930601 -
BG****773461-€ 41,71 » 10502B GASKET Part Number Qty. Specifications Price B63010502B 1 NON ASBESTOS
OHC€ 16,81 B66010502B 1 NON ASBESTOS
DOHC
- 930601
BG**** -773461€ 16,81 » 10511B COVER,TIMING BELT-UP Part Number Qty. Specifications Price B63010510B 1 OHC € 50,77 BJ0110510C 1 DOHC € 107,23 » 10512B GASKET,T.B.COVER UP. Part Number Qty. Specifications Price B63010512A 1 NON ASBESTOS
OHC€ 17,43 B66010512A 1 DOHC € 15,66 » 10521A COVER,TIMING BELT-C. Part Number Qty. Specifications Price B66010520B 1 A (B660-10-521B)
DOHC
- 940901
BG**** -845591€ 33,80 B66010521B 1 DOHC
940901 -
BG****845591-€ 35,50 » 10522 GASKET,T.BELT COVER-C. Part Number Qty. Specifications Price B66010522 1 NON ASBESTOS
DOHC
- 940901
BG**** -845591€ 13,62 » 10540 PLATE,SEAL-T.BELT COVER U Part Number Qty. Specifications Price BJ0110540B 1 AN (BJ01-10-540C)
DOHC
- 910701
BG**** -547705BJ0110540C 1 DOHC
910701 -
BG****547705-€ 30,44 » 10562B CLIP Part Number Qty. Specifications Price B69510562A 1 DOHC € 9,84 » 10602A SEAL,OIL Part Number Qty. Specifications Price F28510602 2 DOHC
- 921104
BG**** -705061€ 8,37 FS0510602A 2 DOHC
921104 -
BG****705061-€ 8,81 » 10901 PLATE,END Part Number Qty. Specifications Price B6S710901A 1 € 30,28 » 11310 COVER,REAR Part Number Qty. Specifications Price B36611310C 1 RYOBI
W/O TURBO
(W/TURBO>NOR-POWER>W/A. LOCK BRAKE)
(W/TURBO>HI-POWER)€ 98,83 B57311310 1 (W/TURBO>NOR-POWER>W/O A. LOCK BRAKE) € 87,47 » 11399A SEAL,OIL-CRANKSHAFT Part Number Qty. Specifications Price B63011312 1 A (BP05-11-312)
(W/TURBO>NOR-POWER>W/O A. LOCK BRAKE)€ 20,46 BP0511312 1 W/O TURBO
(W/TURBO>NOR-POWER>W/A. LOCK BRAKE)
(W/TURBO>HI-POWER)€ 24,47 » 230451 TUBE,SILICON Part Number Qty. Specifications Price 852777739 1 € 39,13 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998600512B 1 € 0,69 » 99201 WASHER Part Number Qty. Specifications Price 995641800 1 € 1,18 » 99220 PIN Part Number Qty. Specifications Price 992330612 1 € 0,71 » 99234 PIN,TUBULAR Part Number Qty. Specifications Price 992340908 1 € 2,06 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612 1 € 0,87 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616 1 € 1,28 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940620 1 € 3,14 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940635 1 € 2,24 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960620 1 € 1,18 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960625B 1 € 0,43 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960635B 1 € 1,90
