Mazda 323 BG 1989-06 Mazda Quarter Window & Trims

Mazda parts catalog

Parts > Mazda 323 > 1989-06 > Body Interior Trim > Quarter Window & Trims(3-door)

Search by part number:

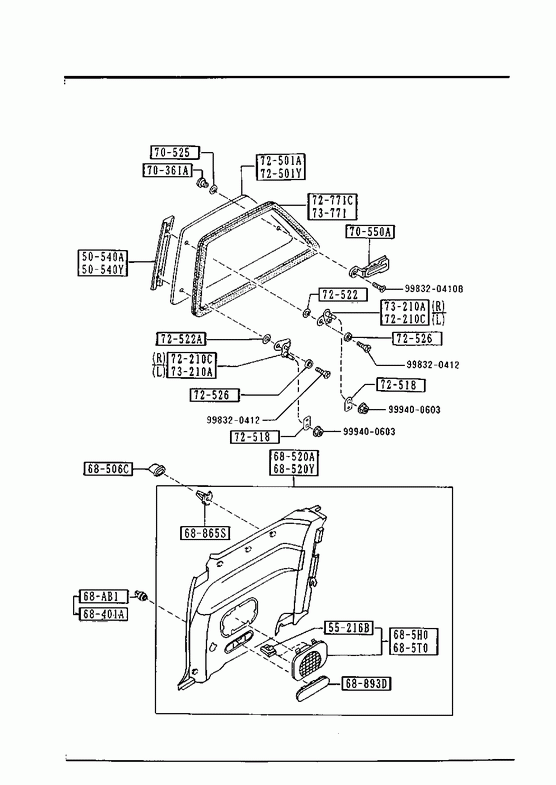

Quarter Window & Trims(3-door)

MOULD(R),C.PILLAR

Part Number	Qty.	Specifications	Price
B46750F10	1		€ 28,01

» 50540Y

MOULD(L),C.PILLAR

Part Number	Qty.	Specifications	Price
B46750F20	1		€ 28,01

» 55216B

SPRING,CENTER PANEL

Part Number	Qty.	Specifications	Price
B09255257	4	- 900511 BG -229223	€ 1,02

» 68401A

FASTENER,DOOR TRIM

Part Number	Qty.	Specifications	Price
G03168401	6	AN (B455-68-AB1A) 890710 - BG105885-	€ 0,46

» 68506C

GROMMET,QUARTER TRIM

Part Number	Qty.	Specifications	Price
E00168506	8	- 901001 BG -296422	€ 1,95

» 68520A

TRIM(R),QUARTER

Part Number	Qty.	Specifications	Price
B46768520B	1	AN (B467-68-520C) FULL TRIM-VINYL 2WD - 890703 BG -103556
B46768520C	1	A (B467-68-520D) FULL TRIM-VINYL 2WD 890703 - 890801 BG103556-114004
B46768520D	1	FULL TRIM-VINYL 2WD 890801 - BG114004-
B46868520B	1	AN (B468-68-520C) FULL TRIM-CLOTH"A" 2WD - 890703 BG -103556
B46868520C	1	A (B468-68-520D) FULL TRIM-CLOTH"A" 2WD 890703 - 890801 BG103556-114004
B46868520D	1	FULL TRIM-CLOTH"A" 2WD 890801 - BG114004-
B47168520D	1	2WD FULL TRIM-CLOTH"C" 900701 - BG261522-
B47268520B	1	AN (B472-68-520C) MOULD TRIM-CLOTH"C" 2WD - 890703 BG -103556
B47268520C	1	A (B472-68-520D) MOULD TRIM-CLOTH"C" 2WD 890703 - 890801 BG103556-114004
B47268520D	1	MOULD TRIM-CLOTH"C" 2WD 890801 - BG114004-
B53468520C	1	FULL TRIM-VINYL (4WD>W/O TURBO)
B53568520C	1	FULL TRIM-CLOTH"A" (4WD>W/O TURBO)
B53768520C	1	(4WD>W/TURBO)
BA2W68520C	1	MOULD TRIM-CLOTH"E" (4WD>W/O TURBO)
BS0368520B	1	AN (BS03-68-520C) MOULD TRIM-CLOTH"E" 2WD - 890703 BG -103556
BS0368520C	1	A (BS03-68-520D) MOULD TRIM-CLOTH"E" 2WD 890703 - 890801 BG103556-114004
BS0368520D	1	MOULD TRIM-CLOTH"E" 2WD 890801 - BG114004-

» 68520Y

TRIM(L),QUARTER

Part Number	Qty.	Specifications	Price
B46768550B	1	A (B467-68-550C) FULL TRIM-VINYL 2WD - 890703 BG -103556
B46768550C	1	A (B467-68-550D) FULL TRIM-VINYL 2WD 890703 - 890801 BG103556-114004
B46768550D	1	FULL TRIM-VINYL 2WD 890801 - BG114004-
B46868550B	1	A (B468-68-550C) FULL TRIM-CLOTH"A" 2WD - 890703 BG -103556
B46868550C	1	A (B468-68-550D) FULL TRIM-CLOTH"A" 2WD 890703 - 890801 BG103556-114004
B46868550D	1	FULL TRIM-CLOTH"A" 2WD 890801 - BG114004-
B47168550D	1	2WD FULL TRIM-CLOTH"C" 900701 - BG261522-
B47268550B	1	A (B472-68-550C) MOULD TRIM-CLOTH"C" 2WD - 890703 BG -103556
B47268550C	1	A (B472-68-550D) MOULD TRIM-CLOTH"C" 2WD 890703 - 890801 BG103556-114004
B47268550D	1	MOULD TRIM-CLOTH"C" 2WD 890801 - BG114004-
B53468550C	1	FULL TRIM-VINYL (4WD>W/O TURBO)
B53568550C	1	FULL TRIM-CLOTH"A" (4WD>W/O TURBO)
B53768550C	1	(4WD>W/TURBO)
BA2W68550C	1	MOULD TRIM-CLOTH"E" (4WD>W/O TURBO)
BS0368550B	1	AN (BS03-68-550C) MOULD TRIM-CLOTH"E" 2WD - 890703 BG -103556
BS0368550C	1	A (BS03-68-550D) MOULD TRIM-CLOTH"E" 2WD 890703 - 890801 BG103556-114004
BS0368550D	1	MOULD TRIM-CLOTH"E" 2WD 890801 - BG114004-

» 685H0

GRILLE(R),SPEAKER

Part Number	Qty.	Specifications	Price
B467685H0A	1	AN (B467-68-5H0B) - 900511 BG -229223
B467685H0B	1	900511 - BG229223-

» 685T0

GRILLE(L),SPEAKER

Part Number	Qty.	Specifications	Price
B467685T0A	1	AN (B467-68-5T0B) - 900511 BG -229223
B467685T0B	1	900511 - BG229223-

» 68865S

CLIP,TRIM

Part Number	Qty.	Specifications	Price
GJ1268865	8		€ 1,88

» 68893D

COVER,HOLE

Part Number	Qty.	Specifications	Price
B49968893	2

» 68AB1

FASTENER

Part Number	Qty.	Specifications	Price
B45568AB1A	6	AN (G350-68-AB1) - 890710 BG -105885	€ 0,46

» 70361A

NUT,GLASS CLAMP

Part Number	Qty.	Specifications	Price
041972525	2		€ 5,41

» 70525

WASHER

Part Number	Qty.	Specifications	Price
041972522	2	A (S232-51-906)	€ 1,85

» 70550A

LOCK,QTR.WINDOW

Part Number	Qty.	Specifications	Price
D00172310	2	AN (D001-72-310A)	€ 15,20

» 72210C

HINGE'A',GLASS-QTR WINDOW

Part Number	Qty.	Specifications	Price
B49972210B	2		€ 20,06

» 72501A

GLASS(R),QTR.WINDOW

Part Number	Qty.	Specifications	Price
B46772511	1	CLEAR
B46972511	1	BLUE	€ 72,15
B47072511	1	BRONZE	€ 75,70

» 72501Y

GLASS(L),QTR.WINDOW

Part Number	Qty.	Specifications	Price
B46773511	1	CLEAR
B46973511	1	BLUE	€ 72,15
B47073511	1	BRONZE	€ 75,70

» 72518

GASKET,QUARTER HINGE

Part Number	Qty.	Specifications	Price
B49972518	4	A (B499-72-518A)	€ 2,13

» 72522

WASHER,QUARTER HINGE-UP.

Part Number	Qty.	Specifications	Price
B46772522A	2	AN (B467-72-522B) - 891102 BG -156776	€ 0,70
B46772522B	2	891102 - BG156776-	€ 1,17

» 72522A

WASHER,QUARTER HINGE-LOWER

Part Number	Qty.	Specifications	Price
B46872522A	2	AN (B468-72-522B) - 891102 BG -156776	€ 0,92
B46872522B	2	891102 - BG156776-	€ 1,26

» 72526

WASHER,GLASS SET

Part Number	Qty.	Specifications	Price
B00172526	4		€ 1,81

» 72771C

WTHSTP(R),QUARTER-OUT.

Part Number	Qty.	Specifications	Price
B46772761B	1		€ 79,28

» 73210A

HINGE'B',GLASS-QTR WINDOW

Part Number	Qty.	Specifications	Price
B49973210B	2		€ 20,06

» 73771

WTHSTP(L),QUARTER-OUT.

Part Number	Qty.	Specifications	Price
B46773761B	1		€ 79,28

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998320410B	1		€ 0,40

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998320412	1		€ 0,40

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

Quarter Window & Trims(3-door)
