Air Conditioner 01/02 02/02 (5DR)(W/O AIR CON)

Air Conditioner |

Mazda parts catalog

Parts > Mazda 323 > 1989-06 > Body Interior Trim > Air Conditioner

Search by part number:

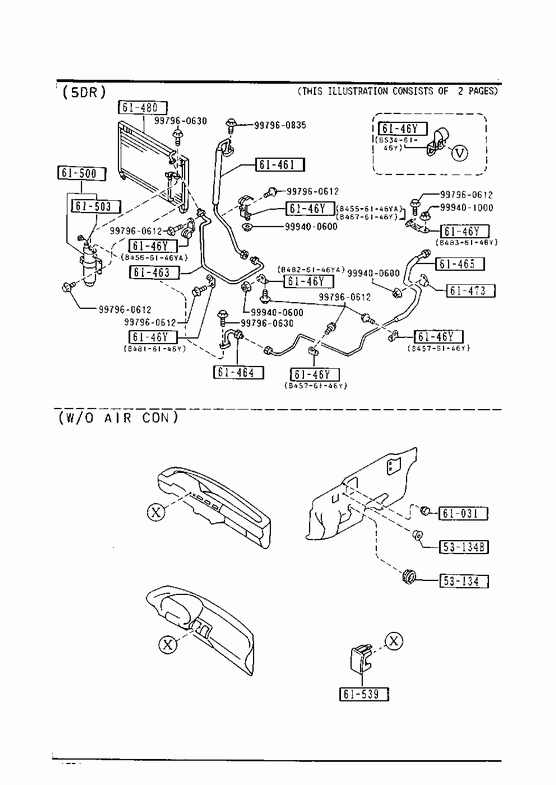

Air Conditioner(gasoline)

01/02
02/02 (5DR)(W/O AIR CON)

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
G03061041	1	W/O AIR CON.	€ 1,72

» 53134B

RUBBER,DUST SEAL

Part Number	Qty.	Specifications	Price
018753134	1	W/O AIR CON.	€ 1,42

» 61031

PLUG,HOLE

Part Number	Qty.	Specifications	Price
170861031	1	W/O AIR CON.	€ 3,59

» 61461

HOSE,FLEXIBLE-HIGH

Part Number	Qty.	Specifications	Price
B45561461A	1	AN (B455-61-461B) (3-DOOR>1300) (3-DOOR>1600) (4-DOOR>1300) (4-DOOR>1600) - 900301 BG -202458
B45561461B	1	A (B455-61-461C) (3-DOOR>1300) (3-DOOR>1600) (4-DOOR>1300) (4-DOOR>1600) 900301 - BG202458-	€ 144,46
B48161461	1	(5-DOOR>1600) - 900301 BG -202458
B48761461	1	A (B487-61-461A) (5-DOOR>1600) 900301 - BG202458-
BS4661461	1	AN (BS46-61-461A) (3-DOOR>1800) (4-DOOR>1800) - 900301 BG -202458
BS4661461A	1	A (BS46-61-461B) (3-DOOR>1800) (4-DOOR>1800) 900301 - BG202458-
BS6061461	1	AN (BS60-61-461A) (5-DOOR>1800) - 900301 BG -202458
BS6061461A	1	A (BS60-61-461B) (5-DOOR>1800) 900301 - BG202458-	€ 144,25

» 61463

PIPE NO.1,COOLER

Part Number	Qty.	Specifications	Price
B45561464B	1	A (B455-61-464C) 3-DOOR 4-DOOR	€ 56,44
B48161464	1	A (B481-61-464A) 5-DOOR	€ 48,77

» 61464

PIPE NO.2,COOLER

Part Number	Qty.	Specifications	Price
B48161465	1	AN (B481-61-465A) 5-DOOR - 891001 BG -143058
B48161465A	1	5-DOOR 891001 - BG143058-	€ 40,75

» 61465

PIPE NO.3,COOLER

Part Number	Qty.	Specifications	Price
BS0661466	1	AN (BS06-61-466A) 3-DOOR 4-DOOR - 891001 BG -143058
BS0661466A	1	3-DOOR 4-DOOR 891001 - BG143058-	€ 107,54
BS3461466A	1	5-DOOR	€ 107,54

» 6146Y

CLIP,PIPE

Part Number	Qty.	Specifications	Price
B4556146YA	1	- 900301 BG -202458	€ 152,43
B4566146YA	1		€ 7,07
B4576146Y	4		€ 5,43
B4596146YA	1	3-DOOR 4-DOOR
B4616146Y	1		€ 6,02
B4636146YA	1		€ 5,69
B4676146Y	1	900301 - BG202458-	€ 14,68
B4816146Y	1	5-DOOR	€ 14,99
B4826146YA	1	5-DOOR	€ 15,96
B4836146YA	1	5-DOOR	€ 17,46
BS346146Y	1	5-DOOR	€ 14,96

» 61473

CLIP,PIPE

Part Number	Qty.	Specifications	Price
B45861473	1	- 900401 BG -213147

» 61480

CONDENSER

Part Number	Qty.	Specifications	Price
B48161480	1		€ 351,58

» 61500

TANK,LIQUID

Part Number	Qty.	Specifications	Price
B45561501	1	AN (B455-61-501A) - 891001 BG -143058
B45561501A	1	AN (B455-61-501B) 891001 - 900201 BG143058-193041
B45561501B	1	A (B455-61-501C) 900201 - 901001 BG193041-296422
B45561501C	1	901001 - 901023 BG296422-306690
B45661500	1	A (B456-61-500A) 901023 - BG306690-	€ 133,86

» 61503

SWITCH,PRESSURE

Part Number	Qty.	Specifications	Price
A00161503	1	901023 - BG306690-	€ 90,76

» 61539

COVER,AIRCON. SWITCH

Part Number	Qty.	Specifications	Price
B45561539	1	AN (B455-61-539A) W/O AIR CON. - 901114 BG -316530	€ 7,03
B45561539A	1	W/O AIR CON. 901114 - BG316530-	€ 7,25

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401000	1		€ 0,88

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960630	1		€ 1,39

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960835	1		€ 1,54

Air Conditioner(gasoline)
