Mazda 323 BG 1989-06 Mazda Air Cleaner 01/02 (1300) 02/02 (1600)

Mazda parts catalog

Parts > Mazda 323 > 1989-06 > Gasoline-engine Supplement > Air Cleaner(gasoline)(ohc>w/o Egi)

Search by part number:

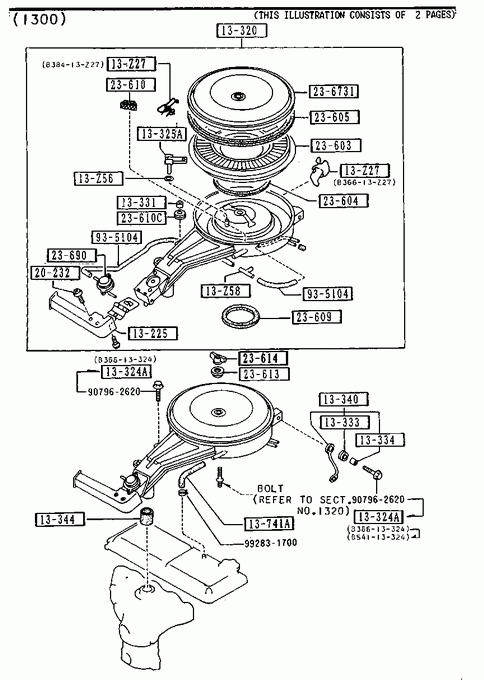

Air Cleaner(gasoline)(ohc>w/o Egi)
01/02 (1300)
02/02 (1600)

» 13225 DUCT,FRESH AIR

Part Number Qty. Specifications Price
B36613201 1 1600
€ 45,86
B38413201 1 1300
€ 43,32

» 13320 CLEANER,AIR

Part Number Qty. Specifications Price
B38413320 1 1300

B61V13320 1 1600
€ 275,52

» 13324A BOLT

Part Number Qty. Specifications Price
B36613324 2 900301 - 900501
BG****202458-226742 € 2,93
B54113324 1 900501 -
BG****226742-

» 13325A VALVE,AIR THERMO

Part Number Qty. Specifications Price
B10213325 1 1300
€ 37,87

» 13331 SPACER,AIR CLEANER

Part Number Qty. Specifications Price
285013331 1 A (0727-65-052A)
€ 2,62

» 13333 RUBBER,INSULATION

Part Number Qty. Specifications Price
E30113333 1
€ 4,86

» 13334 SPACER

Part Number Qty. Specifications Price
E30113334 1
€ 1,70

» 13340 SUPPORT,AIR CLEANER

Part Number Qty. Specifications Price
B36620260A 1 1600

B38420260 1 1300

» 13344 HOSE,HOT AIR

Part Number Qty. Specifications Price
B36613344 1 A (B366-13-344A)
- 900101
BG**** -184423
B36613344A 1 900101 -
BG****184423- € 3,75

» 13741A HOSE,VENTILATION

Part Number Qty. Specifications Price
B36613741 1

» 13Z27 CLIP

Part Number Qty. Specifications Price
B36613Z27 4
€ 4,28
B38413Z27 1 1300
890701 -
BG****103362-
B61V13Z27 1 1600
890701 -
BG****103362-

» 13Z56 GASKET,INTAKE-TEMP COMPEN

Part Number Qty. Specifications Price
B10213Z56 1 NON ASBESTOS
1300
€ 1,72

» 13Z58 CONNECTOR,INTAKE-TEMP COM

Part Number Qty. Specifications Price
B10213Z58 1 1300

» 20232 SCREW,COVER-AIR CLEANER

Part Number Qty. Specifications Price
B36620232 4 1300

» 23603 ELEMENT,AIR CLEANER

Part Number Qty. Specifications Price
B36613Z40 1
€ 14,24

» 23604 GASKET,ELEMENT

Part Number Qty. Specifications Price
B36613Z03 1 NON ASBESTOS

» 23605 GASKET,COVER

Part Number Qty. Specifications Price
B36613Z04 1 NON ASBESTOS

» 23609 GASKET

Part Number Qty. Specifications Price
E35623609 1
€ 4,41

» 23610 ELEMENT,BREATHER

Part Number Qty. Specifications Price
B36613Z07 1
€ 1,58

» 23610C INSULATOR

Part Number Qty. Specifications Price
F60123610 1 A (F801-23-610)
€ 2,75

» 23613 WASHER,SEAL

Part Number Qty. Specifications Price
E35813Z29 1
€ 2,43

» 23614 NUT,WING

Part Number Qty. Specifications Price
E36713Z28 1

» 236731 COVER,AIR CLEANER

Part Number Qty. Specifications Price
B36613Z01 1 1600

B38413Z01 1 1300

» 23690 DIAPHRAGM,VACUUM

Part Number Qty. Specifications Price
B38413Z17 1 1300
890701 -
BG****103362- € 40,22

» 90794 BOLT & WASHER,FLANGE

Part Number Qty. Specifications Price
907962620 1

» 935104 HOSE

Part Number Qty. Specifications Price
9935104999 1 L=1M CUT IT TO USE
1300
€ 11,63

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992831700 1
€ 2,52

Part Number	Qty.	Specifications	Price
B36613201	1	1600	€ 45,86
B38413201	1	1300	€ 43,32

Part Number	Qty.	Specifications	Price
B36613324	2	900301 - 900501 BG202458-226742	€ 2,93
B54113324	1	900501 - BG226742-

Part Number	Qty.	Specifications	Price
B36613344	1	A (B366-13-344A) - 900101 BG -184423
B36613344A	1	900101 - BG184423-	€ 3,75

Part Number	Qty.	Specifications	Price
B36613Z27	4		€ 4,28
B38413Z27	1	1300 890701 - BG103362-
B61V13Z27	1	1600 890701 - BG103362-

Air Cleaner(gasoline)(ohc>w/o Egi)
