Mazda 323 BG 1989-06 Mazda Piston, Crankshaft & Flywheel

Mazda parts catalog

Parts > Mazda 323 > 1989-06 > Gasoline-engine & Transmission > Piston, Crankshaft & Flywheel(gasoline)(ohc)

Search by part number:

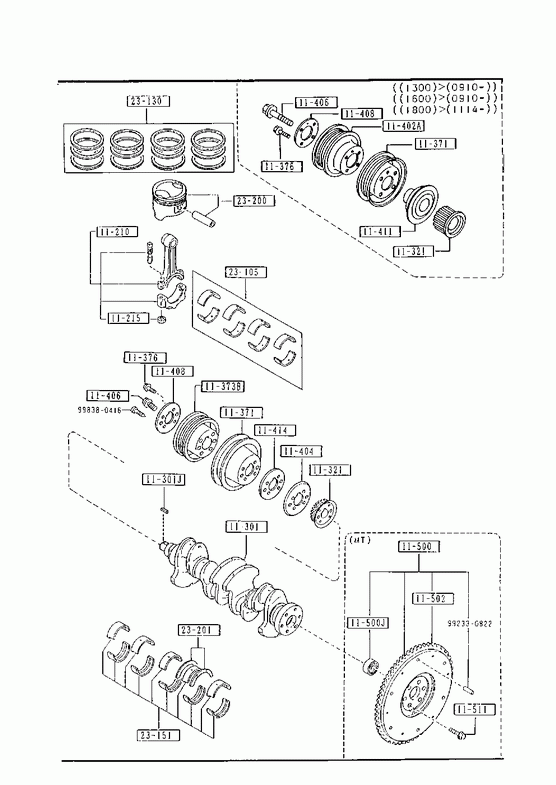

Piston, Crankshaft & Flywheel(gasoline)(ohc)

ROD,CONNECTING

Part Number	Qty.	Specifications	Price
803411210A	4	A (8034-11-210B) 1300	€ 96,95
B61K11210D	4	1600 1800	€ 100,87

» 11215

NUT,CONNECTING ROD

Part Number	Qty.	Specifications	Price
803411215	8	1300	€ 2,63
B6S711215A	8	1600 1800	€ 2,07

» 11301

CRANKSHAFT

Part Number	Qty.	Specifications	Price
B30111300B	1	1300 - 900910 BG -286953	€ 753,94
B3C711300	1	A (B3C7-11-300A) 1300 900910 - BG286953-	€ 761,48
B61611300B	1	(1600>16-VALVE) - 900910 BG -286953	€ 815,66
B61K11300	1	AN (B61K-11-300A) (1600>8-VALVE) 900910 - BG286953-	€ 815,66
B63011300B	1	AN (B631-11-300) (1600>8-VALVE) - 900910 BG -286953	€ 829,88
B6S711300	1	A (B6S7-11-300A) (1600>16-VALVE) 900910 - BG286953-
BP0111300	1	1800 - 910114 BG -341248
BP0211300	1	A (BP02-11-300A) 1800 910114 - BG341248-

» 11301J

KEY,WOODRUFF-PULLEY

Part Number	Qty.	Specifications	Price
B3C711317	1	1800 910114 - BG341248-	€ 3,94
B63011317	1	A (B630-11-317A) - 900101 BG -184423	€ 3,61
B63011317A	1	1800 900101 - 910114 BG184423-341248	€ 3,75

» 11321

PULLEY,TIMING BELT

Part Number	Qty.	Specifications	Price
B36611321A	1	1800 - 910114 BG -341248	€ 31,89
B3C711321	1	1800 910114 - BG341248-	€ 29,52

» 11371

PULLEY,CRANKSHAFT

Part Number	Qty.	Specifications	Price
B36611401	1	AN (B366-11-401A) (1300>8-VALVE) - 890901 BG -126581
B36611401A	1	(1300>8-VALVE) 890901 - 900910 BG126581-286953	€ 21,31
B36711401A	1	(1300>8-VALVE) 900910 - BG286953-	€ 24,12
B38411401	1	(1300>16-VALVE) - 900910 BG -286953
B38511401	1	(1300>16-VALVE) 900910 - BG286953-
B3E711401	1	(1600>16-VALVE) 910305 - BG362610-	€ 91,60
B6S711401A	1	1600 - 900910 BG -286953	€ 114,47
B6S811401	1	(1600>16-VALVE 900910 - 910305 BG286953-362610	€ 91,60

» 11373B

PULLEY,CRANKSHAFT-AIR CON.

Part Number	Qty.	Specifications	Price
B36611403	1	(1300>8-VALVE) 891201 - 900910 BG170634-286953	€ 41,73

» 11376

BOLT,PULLEY

Part Number	Qty.	Specifications	Price
B3C711405	4	1300 1600 900910 - 901201 BG286953-325204	€ 3,07
B63111405	4	1800 - 910114 BG -341248	€ 3,06
JF0111405	4	NOK 1800 900114 - BG186586-	€ 3,07

» 11402A

PULLEY

Part Number	Qty.	Specifications	Price
B3C811403	1	G (B3C9-11-403) (1300>8-VALVE) 900910 - BG286953-	€ 46,46

» 11404

PLATE,TIMING BELT GUIDE

Part Number	Qty.	Specifications	Price
B54111404	1	A (B541-11-404A) (1300>16-VALVE) 1600 1800 - 900901 BG -283453	€ 4,75
B54111404A	1	1800 900901 - 910114 BG283453-341248	€ 4,95
B63211404	1	A (B632-11-404A) (1300>8-VALVE) - 900910 BG -286953	€ 2,64

» 11406

BOLT,LOCK-C.SHAFT PULLEY

Part Number	Qty.	Specifications	Price
B3C711406	1	1800 910114 - BG341248-	€ 9,33
B63011406C	1	1800 - 910114 BG -341248	€ 8,28

» 11408

PLATE,CRANKSHAFT PULLEY

Part Number	Qty.	Specifications	Price
B3C711408	1	1800 910114 - BG341248-	€ 4,85
B63011408B	1	1800 - 910114 BG -341248	€ 5,54

» 11411

BOSS,PULLEY

Part Number	Qty.	Specifications	Price
B3C711400	1	1800 910114 - BG341248-	€ 65,06

» 11414

PLATE(OUT),TIMING BELT

Part Number	Qty.	Specifications	Price
B63111414	1	1800 - 910114 BG -341248	€ 3,03

» 11500

WHEEL,FLY

Part Number	Qty.	Specifications	Price
B36611500	1	(1300>MANUAL TRANSMISSION)	€ 277,25
B54111500	1	AN (B541-11-500A) (1600>MANUAL TRANSMISSION)	€ 266,48
BP0111500	1	(1800>MANUAL TRANSMISSION>2WD)	€ 277,25
BP0511500	1	AN (BP05-11-500A) (1800>MANUAL TRANSMISSION>4WD)	€ 266,48

» 11500J

BEARING,BALL-FLY WHEEL

Part Number	Qty.	Specifications	Price
F80111303	1	MANUAL TRANSMISSION	€ 14,62

» 11502

GEAR,RING-FLY WHEEL

Part Number	Qty.	Specifications	Price
B36711502	1	YOSHIWA MANUAL TRANSMISSION	€ 71,59

» 11511

BOLT,LOCK-FLYWHEEL

Part Number	Qty.	Specifications	Price
F20111511	6	A (F201-11-511A) MANUAL TRANSMISSION	€ 3,21

» 23105

METAL SET,CONN.ROD

Part Number	Qty.	Specifications	Price
B3Y011SE0	1	STD. 1300	€ 80,04
B3Y011SF0	1	O.S. 0.25 1300	€ 80,04
B3Y011SFX	1	O.S. 0.50 1300	€ 80,04
B3Y011SFY	1	O.S. 0.75 1300	€ 76,17
B6Y011SE0	1	STD. 1600 1800	€ 80,04
B6Y011SF0	1	O.S. 0.25 1600 1800	€ 80,04
B6Y011SFX	1	O.S. 0.50 1600 1800	€ 80,04
B6Y011SFY	1	O.S. 0.75 1600 1800 - 890701 BG -103362	€ 76,17

» 23130

RING SET,PISTON

Part Number	Qty.	Specifications	Price
B3Y111SC0A	1	STD. 1300	€ 205,41
B3Y111SD0A	1	O.S. 0.25 1300	€ 205,41
B3Y111SDXA	1	O.S. 0.50 1300	€ 205,41
B3Y111SDYA	1	O.S. 0.75 1300	€ 201,38
B3Y111SDZA	1	O.S. 1.00 1300	€ 207,43
B6Y011SC0A	1	STD. (1600>8-VALVE)	€ 205,41
B6Y011SD0A	1	O.S. 0.25 (1600>8-VALVE)	€ 205,41
B6Y011SDXA	1	O.S. 0.50 (1600>8-VALVE)	€ 205,41
B6Y311SC0	1	STD. (1600>16-VALVE) - 900101 BG -184423
B6Y311SD0	1	O.S. 0.25 (1600>16-VALVE) - 900101 BG -184423
B6Y311SDX	1	O.S. 0.50 (1600>16-VALVE) - 900101 BG -184423
B6Y611SC0	1	STD. (1600>16-VALVE) 900101 - BG184423-
B6Y611SD0	1	O.S. 0.25 (1600>16-VALVE) 900101 - BG184423-
B6Y611SDX	1	O.S. 0.50 (1600>16-VALVE) 900101 - BG184423-
BPY111SC0	1	STD. 1800	€ 205,41
BPY111SD0	1	O.S. 0.25 1800	€ 205,41
BPY111SDX	1	O.S. 0.50 1800	€ 205,41

» 23151

METAL SET,MAIN BRG.

Part Number	Qty.	Specifications	Price
B6Y111SG0	1	STD. (1300>8-VALVE)	€ 123,26
B6Y111SH0	1	O.S. 0.25	€ 96,61
B6Y111SHX	1	O.S. 0.50	€ 96,61
B6Y111SHY	1	O.S. 0.75 1300 (1600>8-VALVE) 1800	€ 120,82
B6Y211SG0	1	STD. (1300>16-VALVE) 1600 1800	€ 115,59

» 23200

PISTON SET

Part Number	Qty.	Specifications	Price
B3Y011SA0	4	STD. (1300>8-VALVE)	€ 65,04
B3Y011SB0	4	O.S. 0.25 (1300>8-VALVE)	€ 62,51
B3Y011SBX	4	O.S. 0.50 (1300>8-VALVE)	€ 63,76
B3Y011SBY	4	O.S. 0.75 (1300>8-VALVE)
B3Y011SBZ	4	O.S. 1.00 (1300>8-VALVE)	€ 61,88
B3Y411SA0A	4	STD. (1300>16-VALVE)	€ 65,36
B3Y411SB0A	4	O.S. 0.25 (1300>16-VALVE)
B3Y411SBXA	4	O.S. 0.50 (1300>16-VALVE)	€ 62,74
B3Y411SBYA	4	O.S. 0.75 (1300>16-VALVE)
B3Y411SBZA	4	O.S. 1.00 (1300>16-VALVE)
B6Y011SA0A	4	STD. (1600>8-VALVE)	€ 68,86
B6Y011SB0A	4	O.S. 0.25 (1600>8-VALVE)	€ 68,86
B6Y011SBXA	4	O.S. 0.50 (1600>8-VALVE)	€ 64,86
B6Y211SA0	4	STD. (1600>16-VALVE)	€ 64,79
B6Y211SB0	4	O.S. 0.25 (1600>16-VALVE)	€ 63,52
B6Y211SBX	4	O.S. 0.50 (1600>16-VALVE)	€ 70,96
BPY011SA0	4	STD. 1800	€ 69,00
BPY011SB0	4	O.S. 0.25 1800	€ 69,00
BPY011SBX	4	O.S. 0.50 1800

» 23201

METAL SET,THRUST

Part Number	Qty.	Specifications	Price
B6Y011SJ0	1	STD. - 900409 BG -216683	€ 36,48
B6Y011SK0	1	O.S. 0.25 - 900409 BG -216683	€ 36,48
B6Y011SKX	1	O.S. 0.50 - 900409 BG -216683	€ 36,48
B6Y011SKY	1	O.S. 0.75 - 900409 BG -216683	€ 36,48
B6Y111SJ0	1	STD. 900409 - BG216683-	€ 36,82
B6Y111SK0	1	O.S. 0.25 900409 - BG216683-	€ 36,82
B6Y111SKX	1	O.S. 0.50 900409 - BG216683-	€ 37,56
B6Y111SKY	1	O.S. 0.75 900409 - BG216683-	€ 38,31

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998380416	1		€ 0,46

» 99220

Part Number	Qty.	Specifications	Price
992330822	1		€ 1,17

Piston, Crankshaft & Flywheel(gasoline)(ohc)
