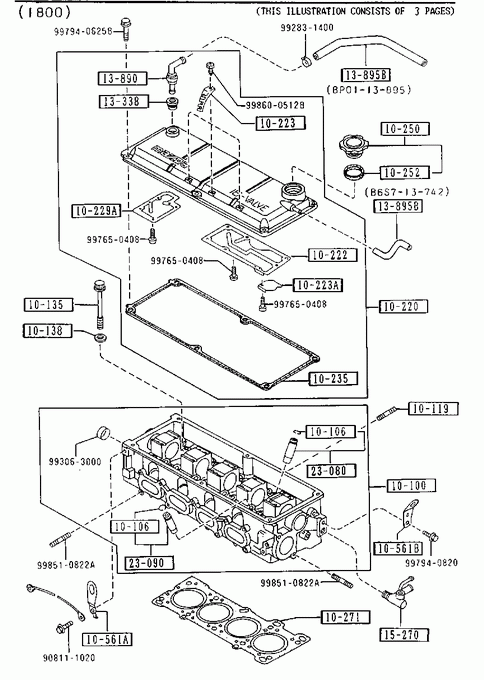

Cylinder Head & Cover(gasoline)(ohc)

01/03 (1300,1600>8-VALVE)
02/03 (1300,1600>16-VALVE)
03/03 (1800)

HEAD,CYLINDER

Part Number	Qty.	Specifications	Price
B38310100	1	AN (B383-10-100A) (1300>8-VALVE) - 890901 BG -126581
B38310100A	1	A (B383-10-100B) (1300>8-VALVE) 890901 - 900501 BG126581-226742
B38310100E	1	A (B383-10-100F) (1300>8-VALVE) 900501 - 900801 BG226742-275240	€ 686,90
B38310100F	1	A (B383-10-100G) (1300>8-VALVE) 900801 - 910120 BG275240-343976	€ 686,90
B38310100G	1	(1300>8-VALVE) 910120 - BG343976-	€ 686,90
B38410100B	1	AN (B384-10-100C) (1300>16-VALVE) - 890901 BG -126581
B38410100C	1	A (B384-10-100D) (1300>16-VALVE) 890901 - 900301 BG126581-202458	€ 850,69
B38410100D	1	(1300>16-VALVE) 900301 - BG202458-	€ 885,05
B61S10100	1	AN (B61S-10-100A) (1600>8-VALVE) - 890901 BG -126581
B61S10100A	1	A (B61S-10-100B) (1600>8-VALVE) 890901 - 900501 BG126581-226742	€ 751,13
B61S10100E	1	A (B61S-10-100F) (1600>8-VALVE) 900501 - 900801 BG226742-275240
B61S10100F	1	A (B61S-10-100G) (1600>8-VALVE) 900801 - 910120 BG275240-343976	€ 751,13
B61S10100G	1	(1600>8-VALVE) 910120 - BG343976-	€ 781,47
B62A10100B	1	AN (B62A-10-100C) (1600>16-VALVE) - 890901 BG -126581
B62A10100C	1	A (B62A-10-100D) (1600>16-VALVE) 890901 - 900301 BG126581-202458
B62A10100D	1	A (B62A-10-100E) (1600>16-VALVE) 900301 - BG202458-	€ 743,67
BP1910100	1	AN (BP19-10-100A) 1800 - 890901 BG -126581
BP1910100A	1	A (BP19-10-100B) 1800 890901 - 900301 BG126581-202458	€ 883,18
BP1910100B	1	1800 900301 - BG202458-	€ 918,86

» 10106

CLIP,VALVE GUIDE

Part Number	Qty.	Specifications	Price
024910106	8	8-VALVE	€ 0,40
B66010106	16	16-VALVE	€ 0,56

» 10119

STUD

Part Number	Qty.	Specifications	Price
FE4J13146	9	A (99851-0822A) 1800	€ 1,33

» 10135

BOLT,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
B63010135A	10		€ 6,28

» 10138

WASHER,PLAIN CYL. HEAD

Part Number	Qty.	Specifications	Price
B63010138A	10		€ 1,67

» 10220

COVER,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
B36610210B	1	A (B366-10-210C) (1300>16-VALVE) (1600>16-VALVE)
B38310210	1	A (B383-10-210A) (1300>8-VALVE) (1600>8-VALVE)
BP0110210A	1	A (BP01-10-210B) 1800

» 10222

PLATE,OIL BAFFLE

Part Number	Qty.	Specifications	Price
BP0110222	1	1800	€ 10,17

» 10223

PROTECTOR,CORD

Part Number	Qty.	Specifications	Price
FE5010224	3	NIFCO	€ 2,79

» 10223A

PLATE 'B',OIL BAFFLE-CYL.

Part Number	Qty.	Specifications	Price
B36610223	1	HIROSHIMA ALUMINIUM	€ 10,37

» 10229A

PLATE,OIL BAFFLE

Part Number	Qty.	Specifications	Price
B36610225	1		€ 4,74

» 10235

GASKET,HEAD COVER

Part Number	Qty.	Specifications	Price
B36610235	1	NON ASBESTOS 1300 1600	€ 6,59
BP0110235	1	NON ASBESTOS 1800	€ 8,27

» 10250

CAP,OIL FILLER

Part Number	Qty.	Specifications	Price
045310250A	1		€ 10,63

» 10252

GASKET

Part Number	Qty.	Specifications	Price
032410252	1		€ 2,33

» 10271

GASKET,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
B36610271	1	ASBESTOS (1300>16-VALVE) - 900120 BG -188805	€ 53,18
B38310271	1	ASBESTOS (1300>8-VALVE) - 900220 BG -199246
B3E210271	1	NON ASBESTOS (1300>8-VALVE) 900220 - BG199246-	€ 43,35
B3F210271	1	NON ASBESTOS (1300>16-VALVE) 900120 - BG188805-	€ 53,18
B54110271	1	ASBESTOS (1600>16-VALVE) - 900120 BG -188805
B61L10271	1	ASBESTOS (1600>8-VALVE) - 900220 BG -199246	€ 48,00
B61S10271	1	NON ASBESTOS (1600>8-VALVE) 900220 - BG199246-	€ 46,59
B64D10271	1	NON ASBESTOS (1600>16-VALVE) 900120 - BG188805-	€ 46,59
BP0110271	1	NON ASBESTOS 1800	€ 46,59

» 10561A

HANGER,ENGINE-FRONT

Part Number	Qty.	Specifications	Price
B63010561A	1		€ 4,41

» 10561B

HANGER,ENGINE-REAR

Part Number	Qty.	Specifications	Price
B63010566	1	A (B631-10-566) 1800 (1300>8-VALVE) (1600>8-VALVE)	€ 4,41

» 13338

SEAL,RUBBER

Part Number	Qty.	Specifications	Price
E30113338A	1		€ 2,63

» 13890

VALVE,P.C.V.

Part Number	Qty.	Specifications	Price
B54113890	1	A (B541-13-890A)	€ 17,23

» 13895B

HOSE,P.C.V.

Part Number	Qty.	Specifications	Price
B36613742	1	(1600>16-VALVE)
B38413742	1	AN (B366-13-742) (1300>16-VALVE)
B61K13741A	1	(1300>8-VALVE) (1600>8-VALVE)	€ 8,86
B61K13742	1	(1300>8-VALVE) (1600>8-VALVE)	€ 14,62
B6S713742	1	1800	€ 4,85
BP0113895A	1	1800	€ 8,83

» 15270

PIPE,WATER BY PASS

Part Number	Qty.	Specifications	Price
BP0115270	1	1800	€ 25,33

» 23080

GUIDE,VALVE

Part Number	Qty.	Specifications	Price
B6Y110281	4	8-VALVE	€ 11,39
B6Z010280	8	16-VALVE	€ 11,85

» 23090

GUIDE,VALVE

Part Number	Qty.	Specifications	Price
B6Y010290	8	(1300>8-VALVE)	€ 12,51
B6Z010290	8	(1300>16-VALVE) (1600>16-VALVE) 1800	€ 11,85

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997940625B	1		€ 1,53

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
908111020	1

» 90857

STUD

Part Number	Qty.	Specifications	Price
998510822A	1		€ 1,44

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997650408	1		€ 0,58

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998600512B	1		€ 0,69

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831400	1		€ 1,16

» 99306

CAP,SEALING

Part Number	Qty.	Specifications	Price
993063000	1		€ 1,90

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

Cylinder Head & Cover(gasoline)(ohc)
