Steering Gear 01/02 02/02

Steering Gear |

Mazda parts catalog

Parts > Mazda 323 > 1987-04 > Chassis Axle Suspension & Brake & Steering > Steering Gear

Search by part number:

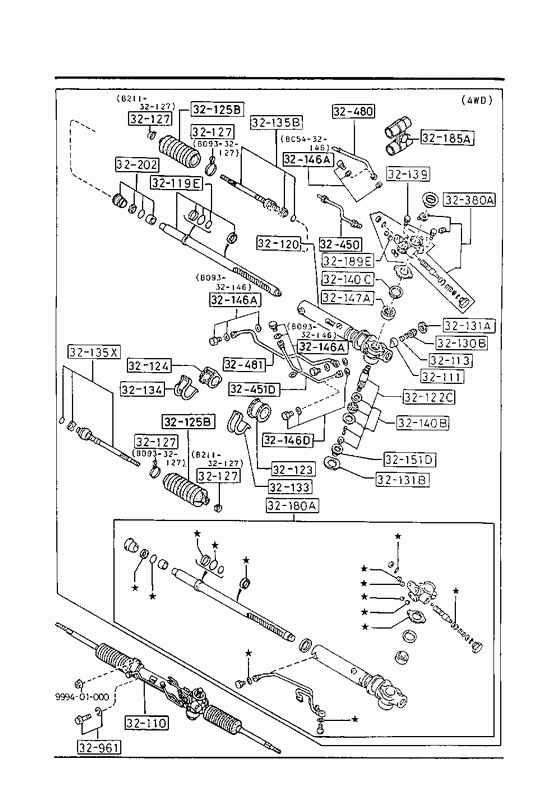

Steering Gear(w/ Power Steering)

01/02
02/02

GEAR,STEERING

Part Number	Qty.	Specifications	Price
BF6932110C	1	AN (BF69-32-110D) 2WD	€ 1268,65
BK9632110C	1	AN (BK96-32-110D) 4WD - 870901 BF -436244	€ 1268,65
BK9632110D	1	A (BK96-32-110E) 4WD 870901 - 890301 BF 436244-569577
BK9632110E	1	AN (BK96-32-110F) 4WD 890301 - BF 569577-	€ 1319,90

» 32111

YOKE,SUPPORT

Part Number	Qty.	Specifications	Price
B03832111	1

» 32113

SPRING,YOKE

Part Number	Qty.	Specifications	Price
B03832113	1		€ 3,51

» 32119E

RACK,STEERING GEAR

Part Number	Qty.	Specifications	Price
BF6932119	1	2WD	€ 150,22
BK9632119	1	4WD

» 32120

HOUSING,GEAR

Part Number	Qty.	Specifications	Price
BF6932120	1	2WD	€ 218,72
BK9632120	1	AN (BK96-32-120A) 4WD - 870901 BF -436244
BK9632120A	1	4WD 870901 - BF 436244-

» 32122C

PINION,STEERING GEAR

Part Number	Qty.	Specifications	Price
BF6932122	1	2WD
BK9632122	1	4WD

» 32123

RUBBER,MOUNTING

Part Number	Qty.	Specifications	Price
B03832123	1	2WD	€ 8,51
B21132123	1	4WD	€ 9,51

» 32124

RUBBER,MOUNTING

Part Number	Qty.	Specifications	Price
B09332124	1	2WD	€ 8,41
B21132124	1	4WD - 870901 BF -436244	€ 9,18
BK9632124	1	4WD 870901 - BF 436244-	€ 11,07

» 32125B

BOOT,RACK

Part Number	Qty.	Specifications	Price
B21132125	2	4WD	€ 20,91

» 32127

CLIP,WIRE

Part Number	Qty.	Specifications	Price
B09332127	2		€ 1,83
B21132127	2	4WD	€ 1,59

» 32130B

NUT,LOCK

Part Number	Qty.	Specifications	Price
B03832130	1		€ 9,62

» 32131A

NUT,LOCK-RACK

Part Number	Qty.	Specifications	Price
B03832131	1

» 32131B

NUT,LOCK-PINION

Part Number	Qty.	Specifications	Price
BC5232131	1		€ 8,08

» 32133

PLATE,CLAMP

Part Number	Qty.	Specifications	Price
B03832133	1	2WD	€ 7,02
B21132133	1	4WD	€ 7,16

» 32134

PLATE,CLAMP

Part Number	Qty.	Specifications	Price
B09332134	1	2WD	€ 7,02
B21132134	1	4WD - 870901 BF -436244
BK9632134	1	4WD 870901 - BF 436244-

» 32135B

JOINT(R),RACK

Part Number	Qty.	Specifications	Price
B09332240	1	2WD	€ 70,70
B21132240	1	4WD	€ 75,94

» 32135X

JOINT(L),RACK

Part Number	Qty.	Specifications	Price
B09332250	1	2WD	€ 70,70
B21132250	1	4WD	€ 75,94

» 32139

BOLT

Part Number	Qty.	Specifications	Price
B03832139	2		€ 2,72

» 32140B

SPACER

Part Number	Qty.	Specifications	Price
B03832140	1

» 32140C

SPACER

Part Number	Qty.	Specifications	Price
BC5232140	1

» 32146A

BOLT SET,CONNECTOR

Part Number	Qty.	Specifications	Price
B09332146	2	4WD	€ 13,31
BC5432146	1	4WD	€ 7,46

» 32146D

BOLT SET,CONN.-PRESSURE P

Part Number	Qty.	Specifications	Price
BC5232146	1		€ 10,70

» 32147A

BEARING,PINION

Part Number	Qty.	Specifications	Price
B03832147	1		€ 25,72

» 32151D

COVER,HOUSING

Part Number	Qty.	Specifications	Price
S09132151	1		€ 21,72

» 32180A

SEAL KIT,ST. GEAR

Part Number	Qty.	Specifications	Price
BF6932180	1	2WD	€ 57,33
BK9632180	1	4WD	€ 48,80

» 32185A

CLAMP

Part Number	Qty.	Specifications	Price
BK9632185	1	A (EA98-32-18X) 4WD

» 32189E

SEAL,PORT-RETURN

Part Number	Qty.	Specifications	Price
BC5332189	2	2WD	€ 2,60

» 32202

BOX,OUTER-POWER STEERING

Part Number	Qty.	Specifications	Price
B09332202	1	2WD	€ 80,52
B21132202	1	4WD

» 32380A

VALVE,ST. GEAR

Part Number	Qty.	Specifications	Price
BF6932380	1	2WD	€ 404,10
BK9632380	1	4WD

» 32450

PIPE,PRESSURE

Part Number	Qty.	Specifications	Price
BF7032450	1	2WD	€ 22,32
BK9732450	1	4WD	€ 22,11

» 32451D

PIPE,PRESSURE

Part Number	Qty.	Specifications	Price
BK9632451	1	4WD	€ 23,77

» 32480

PIPE,RETURN

Part Number	Qty.	Specifications	Price
BK9732480	1	4WD	€ 19,83

» 32481

PIPE,RETURN

Part Number	Qty.	Specifications	Price
BK9632481	1	AN (BK96-32-481A) 4WD - 870901 BF -436244
BK9632481A	1	4WD 870901 - BF 436244-

» 32961

BOLT

Part Number	Qty.	Specifications	Price
G03032961	4	2WD	€ 3,49

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401000	1		€ 0,88

Steering Gear(w/ Power Steering)
