Mazda 323 BF 1987-04 Mazda Front Differentials 01/02 (1300)(1500) 02/02 (1600)

|

Mazda parts catalog

Parts > Mazda 323 > 1987-04 > Gasoline-engine & Transmission > Front Differentials(at)

Search by part number:

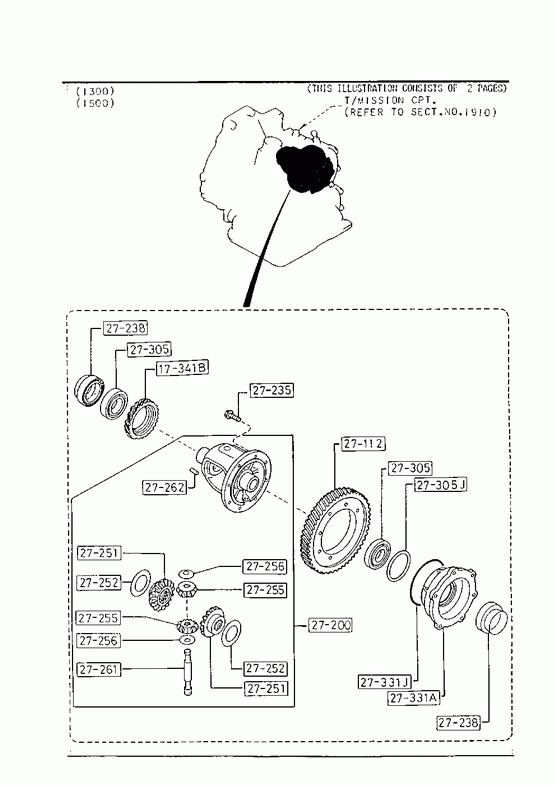

Front Differentials(at)

01/02 (1300)(1500)
02/02 (1600)

GEAR,SPEED DRIVE

Part Number	Qty.	Specifications	Price
F40117341	1	A (F401-17-341A)

GEAR,RING

Part Number	Qty.	Specifications	Price
F01527112	1	1500	€ 109,73
F01727112	1	1300
F02327112	1	1600 - 880801 BF -520391

DIFFERENTIAL

Part Number	Qty.	Specifications	Price
F00127200A	1	A (F001-27-200B) 1300 1500 - 890401 BF -578324	€ 271,62
F00227200	1	A (F002-27-200A) 1300 1500 890401 - BF 578324-

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
F00127235B	8	D=10.2MM	€ 2,17
F00127236B	8	D=10MM	€ 2,04

SEAL,OIL

Part Number	Qty.	Specifications	Price
F00327238	2	A (F003-27-238A)	€ 6,33

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
066227251A	2	AN (F035-27-251) 1300 1500 - 890126 BF -558483	€ 28,90
F02127251	2	1600	€ 32,34
F03527251	2	1300 1500 890126 - BF 558483-	€ 36,09

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F00127252	2	T=2.0MM 1300 1500	€ 2,14
F00127253	2	T=2.1MM 1300 1500	€ 2,12
F00127254	2	T=2.2MM 1300 1500	€ 2,16
F02127252	2	1600	€ 4,54

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
F00127255	2	A (F001-27-255A) - 880501 BF -498193	€ 23,10
F00127255A	2	AN (T020-27-255) 880501 - BF 498193-	€ 23,10

WASHER,THRUST

Part Number	Qty.	Specifications	Price
F00127256	2		€ 2,62

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
F00127261A	1	1300 1500	€ 7,47
F02127261	1	A (F021-27-261A) 1600	€ 10,55

PIN

Part Number	Qty.	Specifications	Price
011427262	1	1300 1500	€ 1,96
G00127262	1	1600 890401 - BF 578324-	€ 1,41

BEARING

Part Number	Qty.	Specifications	Price
F00127350	2		€ 24,02

SHIM

Part Number	Qty.	Specifications	Price
999635110	1	T=0.1MM	€ 1,68
999635112	2	T=0.12MM	€ 2,05
999635114	2	T=0.14MM	€ 2,05
999635116	2	T=0.16MM	€ 2,05
999635118	1	T=0.18MM
999635120	1	T=0.2MM	€ 2,22
999635130	1	T=0.3MM	€ 2,22
999635140	1	T=0.4MM	€ 2,07
999635150	1	T=0.5MM	€ 2,07
999635160	1	T=0.6MM	€ 2,07
999635170	1	T=0.7MM	€ 2,07
999635180	1	T=0.8MM	€ 1,83
999635190	1	T=0.9MM	€ 2,20

HOUSING,SIDE

Part Number	Qty.	Specifications	Price
F01127331	1	AN (F011-27-331A) 1300 1500

RING,'O'

Part Number	Qty.	Specifications	Price
9954209501	1	1300 1500	€ 7,51
