- Parts > Mazda 121 > 1990-12 > Body Interior Trim > Air Conditioner
- Search by part number:
-

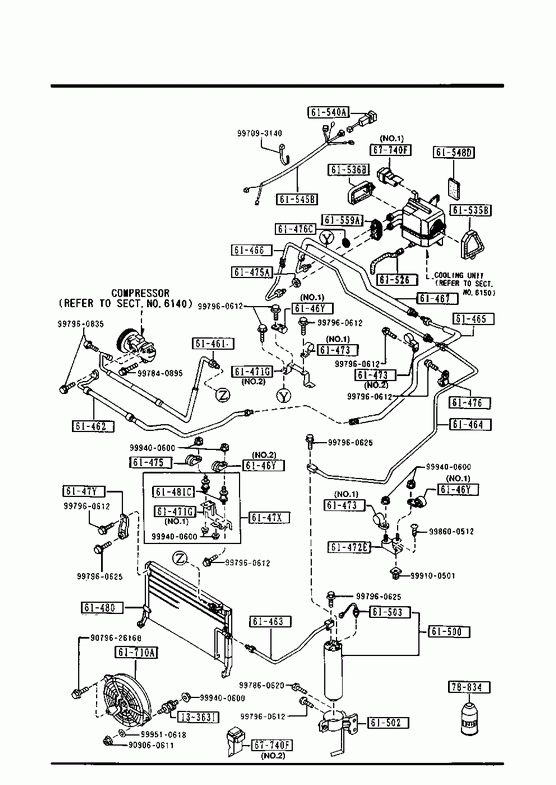

Air Conditioner
-
» 13363I RUBBER,INSULATION Part Number Qty. Specifications Price F22013363 1 € 3,92 » 61461 HOSE,FLEXIBLE-HIGH Part Number Qty. Specifications Price D06161461B 1 - 911201
DB10*1 -109248D06161461C 1 A (D061-61-461D)
911201 - 930301
DB10*1109248-118719D06161461D 1 930301 -
DB10*1118719-» 61462 HOSE,FLEXIBLE-LOW Part Number Qty. Specifications Price D06161462 1 - 911201
DB10*1 -109248D06161462A 1 911201 -
DB10*1109248-» 61463 PIPE NO.1,COOLER Part Number Qty. Specifications Price D06161464 1 » 61464 PIPE NO.2,COOLER Part Number Qty. Specifications Price DB0961465 1 » 61465 PIPE NO.3,COOLER Part Number Qty. Specifications Price DB0961466 1 » 61466 PIPE NO.4,COOLER Part Number Qty. Specifications Price DB0961467 1 » 61467 PIPE NO.5,COOLER Part Number Qty. Specifications Price DB0961468 1 » 6146Y CLIP,PIPE Part Number Qty. Specifications Price B4576146Y 2 ILLUST. NO.1 € 5,43 B4616146Y 1 ILLUST. NO.2 € 6,02 » 61471G BRACKET,PIPE Part Number Qty. Specifications Price D06161471 1 ILLUST. NO.1 DB0961472 1 A (DB09-61-472A)
ILLUST. NO.2€ 7,31 » 61472E BRACKET,CLAMP Part Number Qty. Specifications Price D06161472 1 A (D061-61-472A)
- 920901
DB10*1 -114977D06161472A 1 920901 -
DB10*1114977-€ 5,38 » 61473 CLIP,PIPE Part Number Qty. Specifications Price B46061473 2 ILLUST. NO.1 € 4,28 D06161473 1 ILLUST. NO.2 » 61475 CLIP,PIPE Part Number Qty. Specifications Price D06161475 1 € 5,66 » 61475A GROMMET Part Number Qty. Specifications Price B09261475 1 € 4,01 » 61476 CLIP Part Number Qty. Specifications Price D06161476 1 € 5,38 » 61476C GROMMET Part Number Qty. Specifications Price B09261476 1 A (B092-61-476A) € 3,81 » 6147X BRACKET Part Number Qty. Specifications Price D0616147X 1 » 6147Y BRACKET Part Number Qty. Specifications Price D0616147Y 2 » 61480 CONDENSER Part Number Qty. Specifications Price D06161480 1 € 452,71 » 61481C RUBBER,INSULATOR Part Number Qty. Specifications Price B09261481 2 € 8,95 » 61500 TANK,LIQUID Part Number Qty. Specifications Price D06161500 1 A (D061-61-500A)
- 930301
DB10*1 -118719€ 122,96 D06161500A 1 930301 -
DB10*1118719-€ 124,19 » 61502 BRACKET,TANK Part Number Qty. Specifications Price D06161502 1 » 61503 SWITCH,PRESSURE Part Number Qty. Specifications Price D06161503 1 2 TERMINALS € 73,64 » 61526 HOSE,DRAIN Part Number Qty. Specifications Price DB0961526 1 » 61535B PLATE NO.1,SEAL Part Number Qty. Specifications Price D0616152Y 1 € 20,93 » 61536B PLATE NO.2,SEAL Part Number Qty. Specifications Price D0616152Z 1 € 20,93 » 61540A SWITCH,AIR CON. Part Number Qty. Specifications Price D06161530 1 € 52,12 » 61545B HARNESS,WIRE Part Number Qty. Specifications Price D06161545A 1 € 36,07 » 61548D GASKET Part Number Qty. Specifications Price D06161548 1 » 61559A GROMMET Part Number Qty. Specifications Price D06161559 1 € 4,29 » 61710A FAN,CONDENSER Part Number Qty. Specifications Price D06161710 1 € 336,83 » 67740F RELAY,COOLANT FAN Part Number Qty. Specifications Price B46267740 1 20A TR
ILLUST. NO.1€ 22,34 H45067740 1 30A
ILLUST. NO.2€ 27,47 » 78834 REFRIGERANT DRUM Part Number Qty. Specifications Price A00161556 1 300CC B45578834A 1 400CC » 90780 BOLT Part Number Qty. Specifications Price 997950612 1 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907962616B 1 € 1,94 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 909060611 1 € 1,73 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400600 1 € 1,24 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860620 1 € 0,80 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998600512 1 € 0,70 » 99203 WASHER,PLAIN Part Number Qty. Specifications Price 999510618 1 € 0,41 » 99709 BAND Part Number Qty. Specifications Price 997093140 1 € 3,57 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940895 1 € 2,59 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960612 1 € 0,69 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960625 1 € 1,17 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960835 1 € 1,54 » 99910 GROMMET,SCREW Part Number Qty. Specifications Price 999100501 1 € 1,33
