Parts > Mazda 121 > 1993-11 > Body Interior Trim > Rear Seats

Search by part number:

Rear Seats

01/03 (MATERIAL)

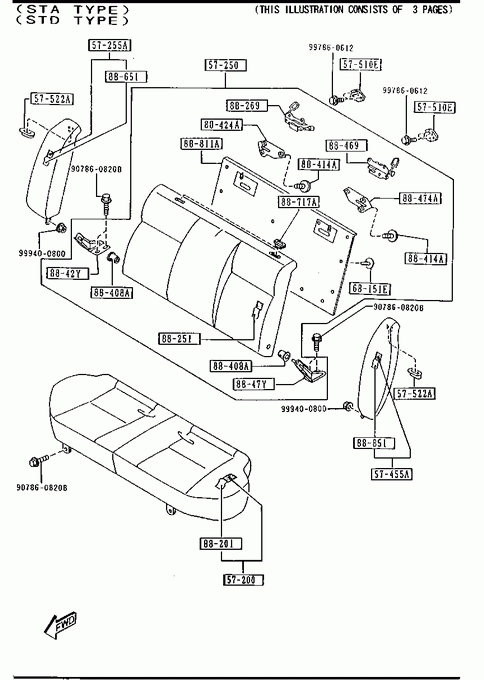

02/03 (STA,STD TYPE)
03/03 (STB,STE TYPE)

CUSHION,REAR SEAT

Part Number	Qty.	Specifications	Price
D12057200A	1	STB TYPE STE TYPE - 951109 DB1* -324166**
D15057200	1	STA TYPE STD TYPE 951109 - 960501 DB1324166-325119*
D15057200B	1	STA TYPE STD TYPE 960501 - 960701 DB1325119-325134*
D15057200C	1	STA TYPE STD TYPE 960701 - DB1325134-*
DB0657200C	1	STA TYPE STD TYPE - 951109 DB1* -324166**
DB5257200	1	STB TYPE STE TYPE 951109 - 960501 DB1324166-325119*
DB5257200B	1	STB TYPE STE TYPE 960501 - 960701 DB1325119-325134*
DB5257200C	1	STB TYPE STE TYPE 960701 - DB1325134-*

» 57250

BACK,REAR SEAT

Part Number	Qty.	Specifications	Price
DB0657350C	1	STA TYPE STD TYPE - 950501 DB1* -320886**
DB0657350D	1	STA TYPE STD TYPE 950501 - DB1320886-*

» 57255A

SIDE SEAT(R),RR.BACK

Part Number	Qty.	Specifications	Price
DB0657500G	1	- 951001 DB1* -323387**
DB0657500H	1	951001 - 951109 DB1323387-324166*
DB9757500	1	951109 - DB1324166-*

» 57455A

SIDE SEAT(L),RR.BACK

Part Number	Qty.	Specifications	Price
DB0657550G	1	- 951001 DB1* -323387**
DB0657550H	1	951001 - 951109 DB1323387-324166*
DB9757550	1	951109 - DB1324166-*

» 57510E

STRIKER,RR BACK

Part Number	Qty.	Specifications	Price
D06157510	2		€ 8,32

» 57522A

BUSH,RR SEAT BACK

Part Number	Qty.	Specifications	Price
G21157522	2		€ 2,33

» 68151E

CLIP

Part Number	Qty.	Specifications	Price
B10268865	20	STB TYPE STE TYPE

» 88201

TRIM,RR SEAT CUSHION

Part Number	Qty.	Specifications	Price
D12088201	1	STB TYPE STE TYPE - 951109 DB1* -324166**
D15088201	1	STA TYPE STD TYPE 951109 - DB1324166-*
DB0688201	1	STA TYPE STD TYPE - 951109 DB1* -324166**
DB5288201	1	STB TYPE STE TYPE 951109 - DB1324166-*

» 88251

TRIM,REAR SEAT BACK

Part Number	Qty.	Specifications	Price
DB0688351A	1	STA TYPE STD TYPE

» 88269

CATCH(R),RR SEAT BACK

Part Number	Qty.	Specifications	Price
DB0688366	1	STA TYPE STD TYPE
DB0788426	1	STB TYPE STE TYPE

» 88408A

BUSHING,HINGE

Part Number	Qty.	Specifications	Price
B45888408	2		€ 1,72

» 88414A

SCREW,REAR SEAT BACK

Part Number	Qty.	Specifications	Price
D06188414	6

» 88424A

PLATE,NUT-REAR SEAT BACK

Part Number	Qty.	Specifications	Price
DB0688424	1		€ 6,07

» 8842Y

PLATE(R),HINGE-R.SEATBACK

Part Number	Qty.	Specifications	Price
D0618840Y	1		€ 14,20

» 88469

CATCH(L),RR SEAT BACK

Part Number	Qty.	Specifications	Price
DB0688376	1	STA TYPE STD TYPE
DB0788476	1	STB TYPE STE TYPE

» 88474A

PLATE,NUT-REAR SEAT BACK

Part Number	Qty.	Specifications	Price
DB0688474	1		€ 9,96

» 8847Y

PLATE(L),HINGE-R.SEATBACK

Part Number	Qty.	Specifications	Price
D0618845Y	1		€ 14,20

» 88651

TRIM(R),RR SEAT SIDE

Part Number	Qty.	Specifications	Price
DB0688501	1	- 951001 DB1* -323387**
DB0688501A	1	951001 - 951109 DB1323387-324166*
DB9788501	1	951109 - DB1324166-*

» 88717A

BEZEL,REAR SEAT BACK

Part Number	Qty.	Specifications	Price
D06188427	2	STA TYPE STD TYPE - 951201 DB1* -324237**
D06288427	2	STB TYPE STE TYPE - 951201 DB1* -324237**

» 88811A

MAT,RR SEAT BACK

Part Number	Qty.	Specifications	Price
DB0688354	1	STA TYPE STD TYPE - 950501 DB1* -320886**
DB0688354A	1	STA TYPE STD TYPE 950501 - DB1320886-*

» 88851

TRIM(L),RR SEAT SIDE

Part Number	Qty.	Specifications	Price
DB0688551	1	- 951001 DB1* -323387**
DB0688551A	1	951001 - 951109 DB1323387-324166*
DB9788551	1	951109 - DB1324166-*

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860820B	1		€ 2,33

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58
