Mazda 121 DB 1993-11 Mazda Front & Rear Wiring Harnesses

Mazda parts catalog

Parts > Mazda 121 > 1993-11 > Body Electronics > Front & Rear Wiring Harnesses

Search by part number:

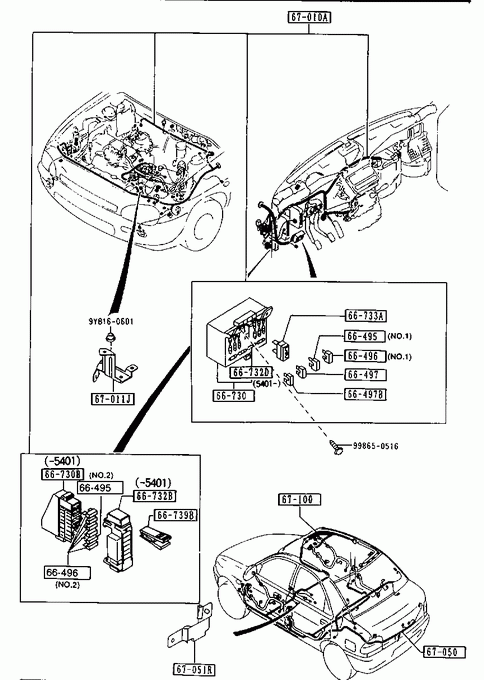

Front & Rear Wiring Harnesses

FUSE (10A)

Part Number	Qty.	Specifications	Price
997051110	4	ILLUST. NO.1 - 950401 DB1* -320524**	€ 1,13
997051210	3	10A ILLUST. NO.1 950401 - DB1320524-*	€ 1,13

» 66496

FUSE (15A)

Part Number	Qty.	Specifications	Price
997051115	7	ILLUST. NO.1 - 950401 DB1* -320524**	€ 1,15
997051215	6	15A ILLUST. NO.2 (WIRING HARNESS-GERMANY>W/O FUEL EMPTY LAMP) - 950401 DB1* -320524**	€ 1,13

» 66497

FUSE (20A)

Part Number	Qty.	Specifications	Price
997051120	6	- 950401 DB1* -320524**	€ 1,13
997051220	7	20A 950401 - DB1320524-*	€ 1,13

» 66497B

FUSE (30A)

Part Number	Qty.	Specifications	Price
997051130	1	- 950401 DB1* -320524**	€ 1,08
997051230	1	30A 950401 - DB1320524-*	€ 1,13

» 66730

BLOCK,FUSE

Part Number	Qty.	Specifications	Price
DB5066730A	1	WIRING HARNESS-GENERAL - 950401 DB1* -320524**
DB5166730A	1	(WIRING HARNESS-GERMANY>W/O FUEL EMPTY LAMP) - 950401 DB1* -320524**
DB5266730	1	950401 - DB1320524-*

» 66730B

BLOCK,FUSE

Part Number	Qty.	Specifications	Price
DB5167FBX	1	(WIRING HARNESS-GERMANY>W/O FUEL EMPTY LAMP) - 950401 DB1* -320524**

» 66732B

COVER,FUSE BLOCK

Part Number	Qty.	Specifications	Price
KB4267FB2A	1	(WIRING HARNESS-GERMANY>W/O FUEL EMPTY LAMP) - 950401 DB1* -320524**	€ 2,95

» 66732D

COVER,FUSE BLOCK

Part Number	Qty.	Specifications	Price
DB5266731	1	950401 - DB1320524-*

» 66733A

BREAKER

Part Number	Qty.	Specifications	Price
H00166733	1	- 950401 DB1* -320524**	€ 14,48
T00167S93	1	950401 - DB1320524-*	€ 2,38

» 66739B

PULLER,FUSE

Part Number	Qty.	Specifications	Price
KB4266739A	1	(WIRING HARNESS-GERMANY>W/O FUEL EMPTY LAMP) - 950401 DB1* -320524**	€ 2,03

» 67010A

HARNESS,FRONT

Part Number	Qty.	Specifications	Price
DB5067010C	1	(W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) (W/O ANTI LOCK BRAKE>EXC.TORRID CLIMATES) - 940501 DB1* -313585**
DB5067010D	1	AN (DB50-67-010E) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) (W/O ANTI LOCK BRAKE>EXC.TORRID CLIMATES) 940501 - 940510 DB1313585-313617*
DB5067010E	1	A (DB50-67-010F) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) (W/O ANTI LOCK BRAKE>EXC.TORRID CLIMATES) 940510 - 941201 DB1313617-318144*
DB5067010F	1	A (DB50-67-010G) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) (W/O ANTI LOCK BRAKE>EXC.TORRID CLIMATES) 941201 - 950401 DB1318144-320524*
DB5067010G	1	A (DB50-67-010H) W/O FUEL EMPTY LAMP (W/O ANTI LOCK BRAKE>EXC.TORRID CLIMATES) (W/O ANTI LOCK BRAKE>TORRID CLIMATES>CED STEP-1) 950401 - 960708
DB5067010H	1	W/O FUEL EMPTY LAMP (W/O ANTI LOCK BRAKE>EXC.TORRID CLIMATES) (W/O ANTI LOCK BRAKE>TORRID CLIMATES>CED STEP-1) 960708 - DB1325134-*	€ 817,92
DB5167010B	1	(W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/O ANTI LOCK BRAKE - 940501 DB1* -313585**	€ 930,63
DB5167010C	1	AN (DB51-67-010D) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/O ANTI LOCK BRAKE 940501 - 940510 DB1313585-313617*
DB5167010D	1	A (DB51-67-010E) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/O ANTI LOCK BRAKE 940510 - 941201 DB1313617-318144*
DB5167010E	1	(W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/O ANTI LOCK BRAKE 941201 - 950401 DB1318144-320524*
DB5267010B	1	(W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) W/ANTI LOCK BRAKE - 940501 DB1* -313585**
DB5267010C	1	AN (DB52-67-010D) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) W/ANTI LOCK BRAKE 940501 - 940510 DB1313585-313617*
DB5267010D	1	AN (DB52-67-010E) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) W/ANTI LOCK BRAKE 940510 - 940901 DB1313617-316463*
DB5267010E	1	A (DB52-67-010F) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) W/ANTI LOCK BRAKE 940901 - 941201 DB1316463-318144*
DB5267010F	1	A (DB52-67-010G) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) W/ANTI LOCK BRAKE 941201 - 950401 DB1318144-320524*
DB5267010G	1	W/O FUEL EMPTY LAMP W/ANTI LOCK BRAKE 950401 - DB1320524-*
DB5467010B	1	(W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/ANTI LOCK BRAKE - 940501 DB1* -313585**
DB5467010C	1	AN (DB54-67-010D) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/ANTI LOCK BRAKE 940501 - 940510 DB1313585-313617*
DB5467010D	1	AN (DB54-67-010E) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/ANTI LOCK BRAKE 940510 - 940901 DB1313617-316463*
DB5467010E	1	A (DB54-67-010F) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/ANTI LOCK BRAKE 940901 - 941201 DB1316463-318144*
DB5467010F	1	(W/O FUEL EMPTY LAMP>WIRING HARNESS-GERMANY) W/ANTI LOCK BRAKE 941201 - 950401 DB1318144-320524*	€ 881,97
DB5567010A	1	W/FUEL EMPTY LAMP - 940501 DB1* -313585**
DB5567010B	1	AN (DB55-67-010C) W/FUEL EMPTY LAMP 940501 - 940510 DB1313585-313617*
DB5567010C	1	A (DB55-67-010D) W/FUEL EMPTY LAMP 940510 - 941201 DB1313617-318144*
DB5567010D	1	A (DB55-67-010E) W/FUEL EMPTY LAMP 941201 - 950401 DB1318144-320524*
DB5567010E	1	W/FUEL EMPTY LAMP 950401 - DB1320524-*
DB5867010D	1	A (DB58-67-010E) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) (W/O ANTI LOCK BRAKE>TORRID CLIMATES>ECE15-05>MANUAL TRANSMISSION) - 941201
DB5867010E	1	A (DB58-67-010F) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) (W/O ANTI LOCK BRAKE>TORRID CLIMATES>ECE15-05>MANUAL TRANSMISSION) 941201 - 950401
DB5867010F	1	W/O FUEL EMPTY LAMP (W/O ANTI LOCK BRAKE>TORRID CLIMATES>ECE15-05>MANUAL TRANSMISSION) 950401 - DB1320524-*
DB9667010E	1	A (DB96-67-010F) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) (W/O ANTI LOCK BRAKE>TORRID CLIMATES>ECE15-05>AUTOMATIC TRANSMISSION) - 941201
DB9667010F	1	A (DB96-67-010G) (W/O FUEL EMPTY LAMP>WIRING HARNESS-GENERAL) (W/O ANTI LOCK BRAKE>TORRID CLIMATES>ECE15-05>AUTOMATIC TRANSMISSION) 941201 - 950401
DB9667010H	1	W/O FUEL EMPTY LAMP (W/O ANTI LOCK BRAKE>TORRID CLIMATES>ECE15-05>AUTOMATIC TRANSMISSION) 950401 - DB1320524-*

» 67011J

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
D10167B11	1		€ 10,83

» 67050

HARNESS,REAR

Part Number	Qty.	Specifications	Price
DB5067050C	1	W/O ANTI LOCK BRAKE (W/O FUEL EMPTY LAMP>W/O POWER DR LOCK) - 940501 DB1* -313585**
DB5067050D	1	A (DB50-67-050E) W/O ANTI LOCK BRAKE (W/O FUEL EMPTY LAMP>W/O POWER DR LOCK) 940501 - 950401 DB1313585-320524*
DB5067050E	1	(W/O FUEL EMPTY LAMP>W/O POWER DR LOCK) W/O ANTI LOCK BRAKE 950401 - DB1320524-*
DB5267050B	1	W/ANTI LOCK BRAKE W/O FUEL EMPTY LAMP - 940501 DB1* -313585**
DB5267050C	1	AN (DB52-67-050D) W/ANTI LOCK BRAKE W/O FUEL EMPTY LAMP 940501 - 940901 DB1313585-316463*
DB5267050D	1	A (DB52-67-050E) W/O FUEL EMPTY LAMP W/ANTI LOCK BRAKE 940901 - 950401 DB1316463-320524*
DB5267050E	1	W/O FUEL EMPTY LAMP W/ANTI LOCK BRAKE 950401 - DB1320524-*
DB5367050C	1	W/O ANTI LOCK BRAKE (W/O FUEL EMPTY LAMP>W/POWER DR LOCK>W/O POWER WIND.) - 940501 DB1* -313585**	€ 270,23
DB5367050D	1	A (DB53-67-050E) W/O ANTI LOCK BRAKE (W/O FUEL EMPTY LAMP>W/POWER DR LOCK>W/O POWER WIND.) 940501 - 950401 DB1313585-320524*
DB5367050E	1	(W/O FUEL EMPTY LAMP>W/POWER DR LOCK>W/O POWER WIND.) W/O ANTI LOCK BRAKE 950401 - DB1320524-*
DB5467050C	1	W/O ANTI LOCK BRAKE (W/O FUEL EMPTY LAMP>W/POWER DR LOCK>W/POWER WIND.) - 940501 DB1* -313585**
DB5467050D	1	A (DB54-67-050E) W/O ANTI LOCK BRAKE (W/O FUEL EMPTY LAMP>W/POWER DR LOCK>W/POWER WIND.) 940501 - 950401 DB1313585-320524*
DB5467050E	1	(W/O FUEL EMPTY LAMP>W/POWER DR LOCK>W/POWER WIND.) W/O ANTI LOCK BRAKE 950401 - DB1320524-*
DB5567050A	1	W/FUEL EMPTY LAMP - 940501 DB1* -313585**
DB5567050B	1	A (DB55-67-050C) W/FUEL EMPTY LAMP 940501 - 950401 DB1313585-320524*

» 67051R

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
D06467BK1	1		€ 8,87

» 67100

HARNESS,ROOM LAMP

Part Number	Qty.	Specifications	Price
D06167100D	1	NORMAL ROOF	€ 15,05
DB0267SH0B	1	CANVAS TOP	€ 48,15

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB160601	1		€ 3,37

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516	1		€ 0,51
