Mazda 121 DB 1993-11 Mazda Automatic Transmission Case & Main Control System

Mazda parts catalog

Parts > Mazda 121 > 1993-11 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Case & Main Control System

Search by part number:

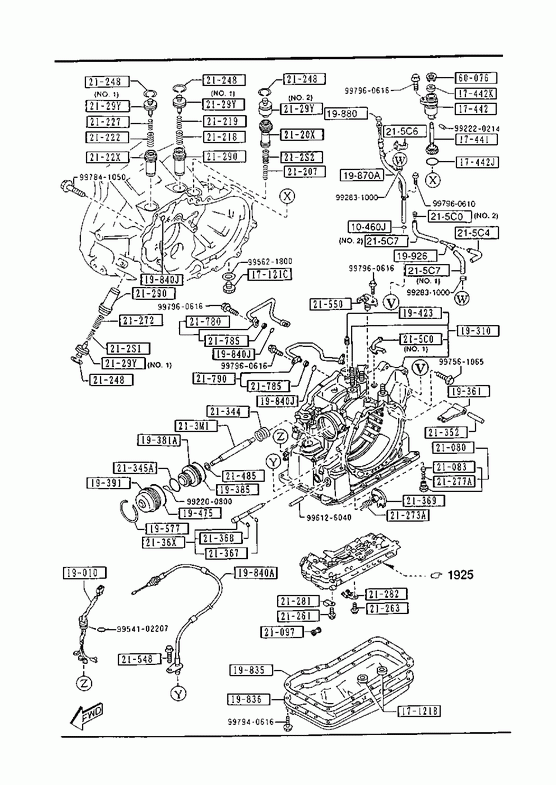

Automatic Transmission Case & Main Control System

RING,'O'

Part Number	Qty.	Specifications	Price
9954101201	1	- 950401 DB1* -320524**	€ 2,06
9954101207	1	950401 - 950405 DB1320524-320616*	€ 2,76

» 17121B

MAGNET

Part Number	Qty.	Specifications	Price
F40117121	2		€ 7,17

» 17121C

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
FU2B17121	1		€ 3,63

» 17441

GEAR,DRIVEN

Part Number	Qty.	Specifications	Price
F52917441	1		€ 22,17

» 17442

SLEEVE,SPEEDOMETER

Part Number	Qty.	Specifications	Price
F40117442A	1		€ 16,88

» 17442J

RING,'O'

Part Number	Qty.	Specifications	Price
101117443	1		€ 3,00

» 17442K

SEAL,OIL

Part Number	Qty.	Specifications	Price
9958608166	1		€ 2,78

» 19010

HARNNESS,SOLENOID

Part Number	Qty.	Specifications	Price
FU6119010D	1

» 19201

RING,'O'

Part Number	Qty.	Specifications	Price
9954102207	1		€ 2,27

» 19310

CASE,T/MISSION

Part Number	Qty.	Specifications	Price
FW0119420E	1	A (FW01-19-420F) - 941101 DB1* -317669**
FW0119420F	1	A (FW01-19-420G) 941101 - DB1317669-*

» 19361

STRUT,BAND

Part Number	Qty.	Specifications	Price
FU6021351A	1		€ 3,50

» 19381A

PISTON,BAND SERVO

Part Number	Qty.	Specifications	Price
FU6821321A	1		€ 25,48

» 19385

SEAL,PISTON

Part Number	Qty.	Specifications	Price
FU6021341A	1		€ 3,58

» 19391

RETAINER,SERVO

Part Number	Qty.	Specifications	Price
FU6821331A	1		€ 23,50

» 19423

PLUG

Part Number	Qty.	Specifications	Price
FU6019423A	10		€ 1,16

» 19475

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU6021342A	1		€ 5,92

» 19577

RING,SNAP

Part Number	Qty.	Specifications	Price
FU6021322A	1		€ 1,50

» 19835

GASKET,OIL PAN

Part Number	Qty.	Specifications	Price
FU6021512B	1		€ 21,97

» 19836

PAN,OIL

Part Number	Qty.	Specifications	Price
FW0121511	1		€ 22,68

» 19840A

CABLE,THROTTLE-A/T

Part Number	Qty.	Specifications	Price
FW0121600A	1	C (FW01-21-600B) - 950301 DB1* -320325**
FW0121600B	1	950301 - DB1320325-*

» 19840J

RING,'O'

Part Number	Qty.	Specifications	Price
9954100807	12		€ 2,14

» 19870A

TUBE,FILLER

Part Number	Qty.	Specifications	Price
FW0519870A	1	A (FW05-19-870B) - 941101 DB1* -317669**
FW0519870B	1	A (FW05-19-870C) 941101 - DB1317669-*

» 19880

GAUGE,OIL LEVEL

Part Number	Qty.	Specifications	Price
FU6719880A	1	941101 - DB1317669-*	€ 6,89
FW0519880	1	- 941101 DB1* -317669**

» 19926

CONNECTOR

Part Number	Qty.	Specifications	Price
FW1219926	1	- 941101 DB1* -317669**	€ 4,91

» 21080

ORIFICE

Part Number	Qty.	Specifications	Price
FU6121080A	1		€ 21,75

» 21083

VALVE,ORIFICE

Part Number	Qty.	Specifications	Price
FU6121083B	1		€ 2,45

» 21097

PROTECTOR

Part Number	Qty.	Specifications	Price
FU0121097	1		€ 0,97

» 21207

SPRING,ACCUM FRONT

Part Number	Qty.	Specifications	Price
FU6921207	1

» 2120X

PISTON,ACCUM N-R

Part Number	Qty.	Specifications	Price
FU612120X	1		€ 16,16

» 21218

SPRING,ACCUM REAR

Part Number	Qty.	Specifications	Price
FU6921218	1		€ 2,40

» 21219

SPRING,ACCUM

Part Number	Qty.	Specifications	Price
FU6921219	1		€ 1,92

» 21222

SPRING,ACCUM 1-2

Part Number	Qty.	Specifications	Price
FW0221222	1

» 21227

SPRING,ACCUM 1/2

Part Number	Qty.	Specifications	Price
FW0221227	1

» 2122X

PISTON,ACCUM 1-2

Part Number	Qty.	Specifications	Price
FU602122X	1		€ 16,16

» 21248

RING,SNAP

Part Number	Qty.	Specifications	Price
FU6021248	4		€ 1,16

» 21261

BOLT

Part Number	Qty.	Specifications	Price
FU6121261	3		€ 0,27

» 21263

BOLT

Part Number	Qty.	Specifications	Price
FU6121263	6		€ 0,35

» 21272

SPRING,ACCUMULATOR

Part Number	Qty.	Specifications	Price
FU6221292B	1		€ 1,87

» 21273A

SPRING,RETURN

Part Number	Qty.	Specifications	Price
FU6121273C	1		€ 0,41

» 21277A

SPRING,ORIFICE CHECK

Part Number	Qty.	Specifications	Price
FU6121277D	1		€ 0,55

» 21281

CLIP

Part Number	Qty.	Specifications	Price
FU6021281C	1		€ 0,47

» 21282

CLIP

Part Number	Qty.	Specifications	Price
FU6121282B	1		€ 0,91

» 21290

PISTON,ACCUM. 2 & 3

Part Number	Qty.	Specifications	Price
FU602129X	2		€ 16,16

» 2129Y

STOPPER

Part Number	Qty.	Specifications	Price
FU602129YA	3	ILLUST. NO.1	€ 5,39
FU612129YB	1	ILLUST. NO.2	€ 2,90

» 212S1

SPRING,ACCUM 2-3

Part Number	Qty.	Specifications	Price
FU62212S1B	1		€ 1,94

» 212S2

SPRING,ACCUM

Part Number	Qty.	Specifications	Price
FU69212S2	1

» 21344

SPRING,RETURN-SERVO

Part Number	Qty.	Specifications	Price
FU0121344D	1		€ 1,30

» 21345A

SEAL,RING

Part Number	Qty.	Specifications	Price
FU6821345A	1		€ 2,94

» 21352

SHAFT,BAND STRUT

Part Number	Qty.	Specifications	Price
FU6021352A	1		€ 1,41

» 21367

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU6121367	1		€ 2,99

» 21368

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU6121368	1		€ 2,99

» 21369

CAM,THROTTLE

Part Number	Qty.	Specifications	Price
FU6121369C	1		€ 3,90

» 2136X

PIN,ADJUSTER

Part Number	Qty.	Specifications	Price
FU612136XA	1		€ 5,12

» 213M1

STEM,PISTON

Part Number	Qty.	Specifications	Price
FU60213M1B	1	L=95.0MM	€ 4,04
FU60213M2B	1	L=95.5MM	€ 7,35
FU60213M3B	1	L=96.0MM	€ 6,61
FU60213M4B	1	L=96.5MM	€ 7,21
FU60213M5B	1	L=97.0MM	€ 10,17
FU60213M6B	1	L=97.5MM	€ 9,58
FU60213M7B	1	L=98.0MM	€ 3,96
FU60213M8B	1	L=98.5MM	€ 3,96
FU60213M9B	1	L=99.0MM	€ 3,96

» 21485

WASHER

Part Number	Qty.	Specifications	Price
FU6021485A	1		€ 0,46

» 21548

BOLT,THROTTLE CABLE BRKT

Part Number	Qty.	Specifications	Price
FU0121548B	1	- 950301 DB1* -320325**	€ 0,94
FW0121548	1	950301 - DB1320325-*	€ 2,00

» 21550

GENERATOR,PULSE

Part Number	Qty.	Specifications	Price
FW0121550	1		€ 34,40

» 215C0

BREATHER

Part Number	Qty.	Specifications	Price
FW01215C0	1	ILLUST. NO.1 - 941101 DB1* -317669**
FW12215C0	1	ILLUST. NO.2 - 941101 DB1* -317669**	€ 6,21

» 215C4

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
FW05215C4	1	- 941101 DB1* -317669**	€ 3,60

» 215C6

CLIP,HOSE

Part Number	Qty.	Specifications	Price
FW17215C5	1	- 941101 DB1* -317669**	€ 0,58

» 215C7

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
FW12215C7	1	ILLUST. NO.1 - 941101 DB1* -317669**	€ 2,17
FW13215C7	1	ILLUST. NO.2	€ 2,40

» 21780

PIPE,GOVERNOR IN.

Part Number	Qty.	Specifications	Price
FU6021780A	1		€ 11,19

» 21785

SPACER

Part Number	Qty.	Specifications	Price
FU6021785	4		€ 0,52

» 21790

PIPE,GOVERNOR IN.

Part Number	Qty.	Specifications	Price
FU6021790B	1		€ 10,81

» 60076

GASKET,GUIDE SEAL-SPEEDO.

Part Number	Qty.	Specifications	Price
B09260076A	1		€ 1,33

» 99220A

PIN,SNAP

Part Number	Qty.	Specifications	Price
992200800	1		€ 2,21

» 99222

PIN,SPRING

Part Number	Qty.	Specifications	Price
992220214	1		€ 0,72

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621800	1		€ 0,19

» 99612

PIN,ROLLER

Part Number	Qty.	Specifications	Price
996126040	1		€ 2,06

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997561065	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997841050	1		€ 2,68

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81
