Mazda 121 DB 1993-11 Mazda Automatic Transmission Torque Converter, Oil Pump & Pipings

Mazda parts catalog

Parts > Mazda 121 > 1993-11 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Torque Converter, Oil Pump & Pipings

Search by part number:

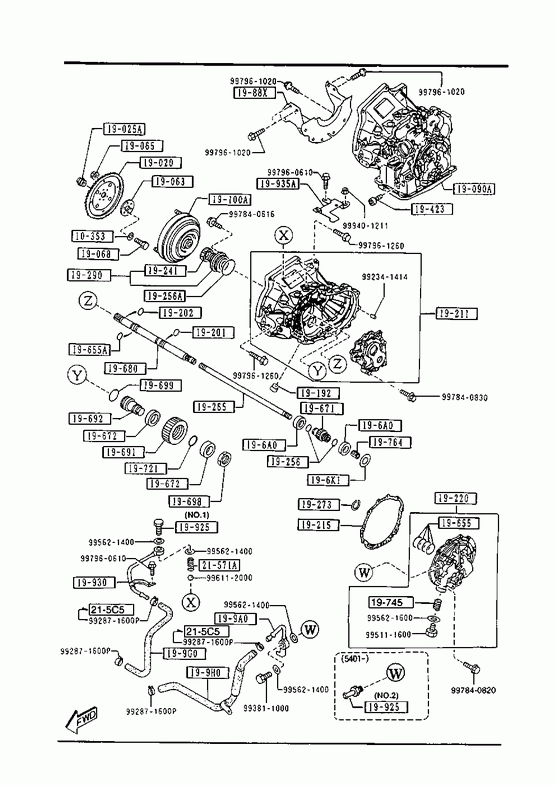

Automatic Transmission Torque Converter, Oil Pump & Pipings

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
029010353	6		€ 1,23

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FW0119020	1	KANDA

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
FU6019025	1		€ 5,65

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
FT3119063	1		€ 2,24

» 19065

NUT

Part Number	Qty.	Specifications	Price
FU5119065	4		€ 1,35

» 19068

BOLT,LOCK

Part Number	Qty.	Specifications	Price
FT3119064	6		€ 1,36

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FW0319090B	1	A (FW03-19-090C) - 940301 DB1* -310498**
FW0319090D	1	A (FW03-19-090E) 940301 - 941101 DB1310498-317669*
FW0319090E	1	A (FW03-19-090G) 941101 - 950201 DB1317669-319607*
FW0319090G	1	950201 - 950401 DB1319607-320524*
FW0319090H	1	AN (FW03-19-090J) 950401 - 950501 DB1320524-320886*
FW0319090J	1	A (FW03-19-090K) 950501 - DB1320886-*

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FU6219100F	1

» 19192

PLUG,CONV.HOUSING

Part Number	Qty.	Specifications	Price
FU6019192A	6		€ 1,23

» 19201

RING,'O'

Part Number	Qty.	Specifications	Price
FU6019201A	1		€ 2,35

» 19202

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU5019202A	1		€ 2,21

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FWY419190A	1	A (FWY4-19-190B)

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
FU6019705B	1	A (FU60-19-705C)	€ 9,22

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FU6119700G	1	- 950501 DB1* -320886**	€ 595,35
FU6119700J	1	A (FU61-19-700K) 950501 - 951121 DB1320886-324230*	€ 595,35
FU6119700K	1	AN (FU61-19-700L) 951121 - DB1324230-*	€ 595,35

» 19241

SEAL,OIL

Part Number	Qty.	Specifications	Price
FU0119241A	1		€ 9,84

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
FU6019212	2		€ 3,14

» 19256A

RING,SEAL

Part Number	Qty.	Specifications	Price
FU6019242A	1		€ 5,92

» 19265

SHAFT,OIL PUMP

Part Number	Qty.	Specifications	Price
FU6019761C	1		€ 17,04

» 19273

RING,SNAP

Part Number	Qty.	Specifications	Price
FU6019755B	1		€ 0,95

» 19290

COVER,BEARING

Part Number	Qty.	Specifications	Price
FWY5192A0	1	A (FWY5-19-2A0A) - 950201 DB1* -319607**	€ 32,98
FWY5192A0A	1	AN (FWY5-19-2A0B) 950201 - DB1319607-*	€ 32,98

» 19423

PLUG

Part Number	Qty.	Specifications	Price
FU6119423	1		€ 0,81

» 19655

RING,SEAL

Part Number	Qty.	Specifications	Price
FU6019701	4	AN (FU60-19-701A)	€ 3,64

» 19655A

RING,SEAL

Part Number	Qty.	Specifications	Price
FU5019762A	1		€ 3,37

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FU6019671B	1		€ 67,66

» 19672

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FU5019672A	2	A (FU50-19-672B) - 950201 DB1* -319607**	€ 15,84
FU5019672C	2	A (FU50-19-672D) 950201 - 950601 DB1319607-321195*	€ 15,84
FU5019672D	2	950601 - DB1321195-*	€ 16,48

» 19680

SHAFT,TURBINE

Part Number	Qty.	Specifications	Price
FU6019270C	1	AN (FU60-19-270D)	€ 115,33

» 19691

GEAR,IDLE

Part Number	Qty.	Specifications	Price
FU6019261D	1		€ 61,44

» 19692

SHAFT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FU6019262B	1		€ 12,70

» 19698

NUT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FU0119264A	1	AN (GF01-19-264)	€ 5,26

» 19699

RING,'O'

Part Number	Qty.	Specifications	Price
FU0119266A	1		€ 1,83

» 196A0

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FU60196A0	2	NSK	€ 19,79

» 196K1

SHIM,OUTPUT GEAR

Part Number	Qty.	Specifications	Price
FU60196J8B	1	T=1.4MM	€ 4,51
FU60196J9B	1	T=1.45MM	€ 3,64
FU60196K1B	1	T=0.5MM	€ 4,51
FU60196K2B	1	T=0.55MM	€ 4,51
FU60196K3B	1	T=0.6MM	€ 3,34
FU60196K4B	1	T=0.65MM	€ 3,27
FU60196K5B	1	T=0.7MM	€ 3,27
FU60196K6B	1	T=0.75MM	€ 3,21
FU60196K7B	1	T=0.8MM	€ 3,67
FU60196K8B	1	T=0.85MM	€ 3,21
FU60196K9B	1	T=0.9MM	€ 4,33
FU60196L1B	1	T=0.95MM	€ 4,33
FU60196L2B	1	T=1.0MM	€ 4,51
FU60196L3B	1	T=1.05MM	€ 3,67
FU60196L4B	1	T=1.1MM	€ 3,67
FU60196L5B	1	T=1.15MM	€ 4,42
FU60196L6B	1	T=1.2MM	€ 3,67
FU60196L7B	1	T=1.25MM	€ 4,51
FU60196L8B	1	T=1.3MM	€ 4,51
FU60196L9B	1	T=1.35MM	€ 4,51
FU60196M1	1	T=0.525MM	€ 8,47
FU60196M2	1	T=0.575MM	€ 8,47
FU60196M3	1	T=0.625MM	€ 10,06
FU60196M4	1	T=0.675MM	€ 8,47
FU60196M5	1	T=0.725MM	€ 8,47
FU60196M6	1	T=0.775MM	€ 8,47
FU60196M7	1	T=0.825MM	€ 8,55
FU60196M8	1	T=0.875MM	€ 8,47
FU60196M9	1	T=0.925MM	€ 8,47
FU60196N1	1	T=0.975MM	€ 8,47
FU60196N2	1	T=1.025MM	€ 8,47
FU60196N3	1	T=1.075MM	€ 8,47
FU60196N4	1	T=1.125MM	€ 8,47
FU60196N5	1	T=1.175MM	€ 8,47
FU60196N6	1	T=1.225MM	€ 8,47
FU60196N7	1	T=1.275MM	€ 8,47
FU60196N8	1	T=1.325MM	€ 10,06
FU60196N9	1	T=1.375MM	€ 8,47
FU60196P1	1	T=1.425MM	€ 8,47

» 19721

SHIM

Part Number	Qty.	Specifications	Price
FU60192F8A	1	T=3.8MM	€ 2,20
FU60192F9A	1	T=3.85MM	€ 2,20
FU60192G1A	1	T=3.9MM	€ 2,20
FU60192G2A	1	T=3.95MM	€ 2,20
FU60192G3A	1	T=4.0MM	€ 2,20
FU60192G4A	1	T=4.05MM	€ 2,20
FU60192G5A	1	T=4.1MM	€ 2,20
FU60192G6A	1	T=4.15MM	€ 2,20
FU60192G7A	1	T=4.2MM	€ 2,20
FU60192G8A	1	T=4.25MM	€ 2,75
FU60192G9A	1	T=4.3MM	€ 2,75
FU60192H1A	1	T=4.35MM	€ 2,20
FU60192H2A	1	T=4.4MM	€ 2,20
FU60192H3A	1	T=4.45MM	€ 2,20
FU60192H4A	1	T=4.5MM	€ 2,20
FU60192H5A	1	T=4.55MM	€ 2,20
FU60192H6A	1	T=4.6MM	€ 2,20
FU60192H7A	1	T=4.65MM	€ 2,20
FU60192H8A	1	T=4.7MM	€ 2,20
FU60192H9A	1	T=4.75MM	€ 2,20

» 19745

SPRING

Part Number	Qty.	Specifications	Price
FU6119736A	1		€ 1,48

» 19764

SUPPORTER,BEARING-OUTPUT

Part Number	Qty.	Specifications	Price
FU6019764B	1		€ 5,44

» 1988X

STIFFENER

Part Number	Qty.	Specifications	Price
FW021988X	1

» 19925

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
FU3119925A	1	ILLUST. NO.1	€ 2,49
FX0119925	1	ILLUST. NO.2 950401 - DB1320524-*	€ 6,11

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
FW0119930	1	AN (FW01-19-930A)

» 19935A

CLIP

Part Number	Qty.	Specifications	Price
FW0119935A	1

» 199A0

PIPE,OIL-OILPUMP

Part Number	Qty.	Specifications	Price
FU60199A0C	1	AN (FU60-19-9A0D) - 950401 DB1* -320524**	€ 18,57

» 199G0

HOSE,OIL

Part Number	Qty.	Specifications	Price
FW01199G0	1

» 199H0

HOSE,OIL

Part Number	Qty.	Specifications	Price
FW05199H0	1	- 950401 DB1* -320524**
FW05199H0A	1	950401 - DB1320524-*

» 21571A

SPRING,PRESSURE HOLD

Part Number	Qty.	Specifications	Price
FU3121571A	1		€ 1,02

» 215C5

CLIP,HOSE

Part Number	Qty.	Specifications	Price
FT96215C5	2	950401 - DB1320524-*	€ 2,10

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401211	1		€ 2,17

» 99234

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
992341414	1		€ 1,92

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992871600P	1		€ 2,93

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111600	1		€ 0,86

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993811000	1		€ 2,97

» 99520

BALL

Part Number	Qty.	Specifications	Price
996112000	1		€ 1,85

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621400	1		€ 3,08

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621600	1		€ 1,65

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840620	1		€ 2,13

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840830	1		€ 2,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961260	1		€ 2,95
