Mazda 121 DB 1990-11 Mazda Meter Components

|

Mazda parts catalog

Parts > Mazda 121 > 1990-11 > Body Dashboard > Meter Components(w/o Tachometer)

Search by part number:

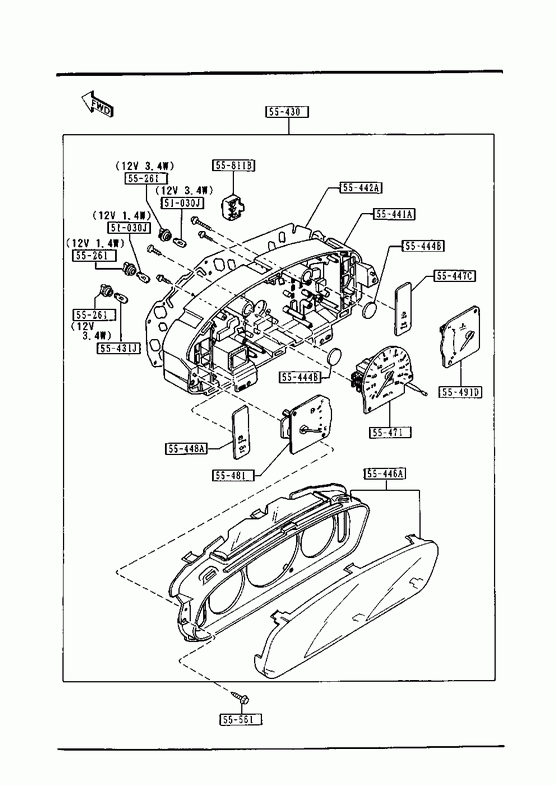

Meter Components(w/o Tachometer)

BULB

Part Number	Qty.	Specifications	Price
362575139	2	12V 1.4W	€ 2,67
997016030	9	12V 3.4W	€ 1,72

SOCKET

Part Number	Qty.	Specifications	Price
131655261	11	12V 3.4W	€ 3,15
854855261	2	12V 1.4W	€ 3,15

METER SET

Part Number	Qty.	Specifications	Price
DB0255430	1	A (DB02-55-430A) W/O TACHO.INDEPENDENT BRAKE L. - 911201 DB12 -137941**
DB0255430A	1	W/O TACHO.INDEPENDENT BRAKE L. 911201 - DB12137941-**
DB0355430	1	A (DB03-55-430A) (W/O TACHO.,COMBINED BRAKE LAMP>W/O FUEL WARN.LAMP) - 911201 DB12 -137941**
DB0355430A	1	(W/O TACHO.,COMBINED BRAKE LAMP>W/O FUEL WARN.LAMP) 911201 - DB12137941-**	€ 530,73
DB0655430	1	(W/O TACHO.,COMBINED BRAKE LAMP>W/FUEL WARN.LAMP) 930301 - DB12165712-**

BULB'A',METER SET

Part Number	Qty.	Specifications	Price
D06155431	2	12V 3.4W	€ 5,73

CASE,METER

Part Number	Qty.	Specifications	Price
D06155441	1		€ 24,89

PLATE,PRINT

Part Number	Qty.	Specifications	Price
DB0255442	1	W/O TACHO.INDEPENDENT BRAKE L.
DB0355442	1	W/O TACHO.,COMBINED BRAKE LAMP	€ 41,24

LENS,WARNING

Part Number	Qty.	Specifications	Price
B49155444	2		€ 1,16

PLATE,WINDOW

Part Number	Qty.	Specifications	Price
D06155446	1		€ 41,53

LENS,WARNING

Part Number	Qty.	Specifications	Price
DB0255445	1	W/O TACHO.INDEPENDENT BRAKE L.
DB0455445	1	(W/O TACHO.,COMBINED BRAKE LAMP>W/O FUEL WARN.LAMP)
DB0655445	1	(W/O TACHO.,COMBINED BRAKE LAMP>W/FUEL WARN.LAMP) 930301 - DB12165712-**

LENS,FRONT

Part Number	Qty.	Specifications	Price
DB0255447	1		€ 5,62

SPEEDOMETER

Part Number	Qty.	Specifications	Price
DB0255471	1		€ 405,64

METER,FUEL

Part Number	Qty.	Specifications	Price
D06155481	1		€ 69,82

METER,THERMO

Part Number	Qty.	Specifications	Price
D06155491	1	W/O TACHO.INDEPENDENT BRAKE L.
DB0355491	1	W/O TACHO.,COMBINED BRAKE LAMP	€ 68,45

BOLT,INST. PANEL

Part Number	Qty.	Specifications	Price
B45555561	4		€ 0,88

BUZZER

Part Number	Qty.	Specifications	Price
D06355811	1		€ 40,35
