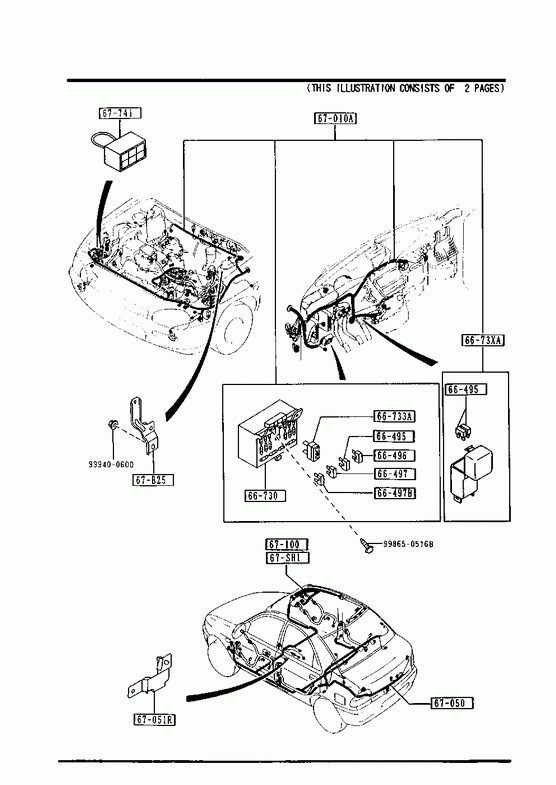

Front & Rear Wiring Harnesses

01/02
02/02

FUSE (10A)

Part Number	Qty.	Specifications	Price
997051110	2	TORRID CLIMATES	€ 1,13

» 66496

FUSE (15A)

Part Number	Qty.	Specifications	Price
997051115	7		€ 1,15

» 66497

FUSE (20A)

Part Number	Qty.	Specifications	Price
997051120	7		€ 1,13

» 66497B

FUSE (30A)

Part Number	Qty.	Specifications	Price
997051130	1	1300	€ 1,08

» 66730

BLOCK,FUSE

Part Number	Qty.	Specifications	Price
DB0266730A	1	AN (DB02-66-730B) WIRING HARNESS-EXC.GERMANY EXC.TORRID CLIMATES - 930802 DB12 -173184**
DB0266730B	1	WIRING HARNESS-EXC.GERMANY EXC.TORRID CLIMATES 930802 - DB12173184-**
DB0366730	1	WIRING HARNESS-GERMANY EXC.TORRID CLIMATES	€ 101,65
DB4866730A	1	AN (DB48-66-730B) TORRID CLIMATES - 930701 DB12 -171515**
DB4866730B	1	TORRID CLIMATES 930701 - DB12171515-**

» 66733A

BREAKER

Part Number	Qty.	Specifications	Price
H00166733	1		€ 14,48

» 6673XA

COVER,FUSE-FRONT HARNESS

Part Number	Qty.	Specifications	Price
DB026673X	1	WIRING HARNESS-GERMANY EXC.TORRID CLIMATES	€ 9,05

» 67010A

HARNESS,FRONT

Part Number	Qty.	Specifications	Price
DB0267010C	1	AN (DB02-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 910501 DB12 -122833**
DB0267010F	1	A (DB02-67-010H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910501 - 911101 DB12122833-136290**
DB0267010H	1	A (DB02-67-010J) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 921101 DB12136290-157939**
DB0267010L	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - DB12157939-**
DB0367010B	1	AN (DB03-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 910501 DB12 -122833**	€ 708,33
DB0367010E	1	A (DB03-67-010G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910501 - 911101 DB12122833-136290**	€ 708,33
DB0367010G	1	A (DB03-67-010H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 921101 DB12136290-157939**	€ 708,33
DB0367010H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - DB12157939-**	€ 736,95
DB0567010C	1	AN (DB05-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 910501 DB12 -122833**
DB0567010F	1	A (DB05-67-010H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910501 - 911101 DB12122833-136290**
DB0567010J	1	A (DB05-67-010K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 920501 DB12136290-149913**
DB0567010K	1	A (DB05-67-010L) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 920501 - 921101 DB12149913-157939**
DB0567010L	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - DB12157939-**
DB0667010B	1	AN (DB06-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 910501 DB12 -122833**
DB0667010E	1	A (DB06-67-010G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910501 - 911101 DB12122833-136290**
DB0667010H	1	A (DB06-67-010J) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 920501 DB12136290-149913**
DB0667010J	1	A (DB06-67-010K) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 920501 - 921101 DB12149913-157939**
DB0667010K	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - DB12157939-**
DB0867010C	1	AN (DB08-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 910501 DB12 -122833**
DB0867010F	1	A (DB08-67-010H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910501 - 911101 DB12122833-136290**
DB0867010H	1	A (DB08-67-010J) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 921101 DB12136290-157939**
DB0867010J	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - DB12157939-**
DB0967010B	1	AN (DB09-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 910501 DB12 -122833**
DB0967010E	1	A (DB09-67-010G) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910501 - 911101 DB12122833-136290**
DB0967010G	1	A (DB09-67-010H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 921101 DB12136290-157939**
DB0967010H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - DB12157939-**
DB4467010	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930301 - DB12165712-**
DB4567010	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930301 - DB12165712-**
DB4867010B	1	AN (DB48-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 930701 DB12 -171515**
DB4867010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930701 - DB12171515-**

» 67050

HARNESS,REAR

Part Number	Qty.	Specifications	Price
DB0567050B	1	AN (DB05-67-050C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 901201 DB12 -100759**	€ 219,88
DB0567050C	1	AN (DB05-67-050D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 901201 - 910601 DB12100759-126494**
DB0567050D	1	A (DB05-67-050E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910601 - 911101 DB12126494-136290**
DB0567050E	1	A (DB05-67-050F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 921101 DB12136290-157939**
DB0567050G	1	A (DB05-67-050H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - DB12157939-**
DB0667050B	1	AN (DB06-67-050C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 901201 DB12 -100759**
DB0667050C	1	AN (DB06-67-050D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 901201 - 910601 DB12100759-126494**
DB0667050D	1	A (DB06-67-050E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910601 - 911101 DB12126494-136290**
DB0667050E	1	A (DB06-67-050F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 921101 DB12136290-157939**
DB0667050G	1	AN (DB06-67-050H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - 930701 DB12157939-171515**
DB0667050H	1	A (DB06-67-050J) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930701 - DB12171515-**
DB0767050B	1	AN (DB07-67-050C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 910501 DB12 -122833**
DB0767050D	1	A (DB07-67-050E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910501 - 911101 DB12122833-136290**
DB0767050E	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - DB12136290-**
DB1867050B	1	AN (DB18-67-050C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL - 901201 DB12 -100759**	€ 389,66
DB1867050C	1	AN (DB18-67-050D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 901201 - 910601 DB12100759-126494**
DB1867050D	1	A (DB18-67-050E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 910601 - 911101 DB12126494-136290**
DB1867050E	1	A (DB18-67-050F) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 911101 - 921101 DB12136290-157939**	€ 389,66
DB1867050G	1	AN (DB18-67-050H) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 921101 - 930701 DB12157939-171515**
DB1867050H	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930701 - DB12171515-**	€ 389,66
DB4467050	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930301 - DB12165712-**
DB4567050	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930301 - DB12165712-**
DB4667050	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930301 - DB12165712-**	€ 424,14
DB4767050	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL 930301 - DB12165712-**

» 67051R

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
D06467BK1	1		€ 8,87

» 67100

HARNESS,ROOM LAMP

Part Number	Qty.	Specifications	Price
D06167100B	1	AN (D061-67-100C) NORMAL ROOF - 910601 DB12 -126494**	€ 15,05
D06167100C	1	AN (D061-67-100D) NORMAL ROOF 910601 - 930802 DB12126494-173184**	€ 15,05
D06167100D	1	NORMAL ROOF 930802 - DB12173184-**	€ 15,05

» 67741

CONNECTOR,SHORT

Part Number	Qty.	Specifications	Price
WB2267741	2	(1100>MANUAL TRANSMISSION) (1300>MANUAL TRANSMISSION) (1300>AUTOMATIC TRANSMISSION)	€ 4,40

» 67B25

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
D06367BK1	1	- 901201 DB12 -100759**	€ 7,42
DB1767BK1	1	901201 - DB12100759-**

» 67SH1

CORD,SHORT

Part Number	Qty.	Specifications	Price
DB0267SH0A	1	AN (DB02-67-SH0B) CANVAS TOP - 910601 DB12 -126494**
DB0267SH0B	1	CANVAS TOP 910601 - DB12126494-**	€ 48,15

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516B	1		€ 0,52
