Air Cleaner 01/02 (ECE) 02/02 (SWEDEN)(SWITZERLAND)

Air Cleaner |

Mazda parts catalog

Parts > Mazda 121 > 1987-11 > Gasoline-engine Supplement > Air Cleaner

Search by part number:

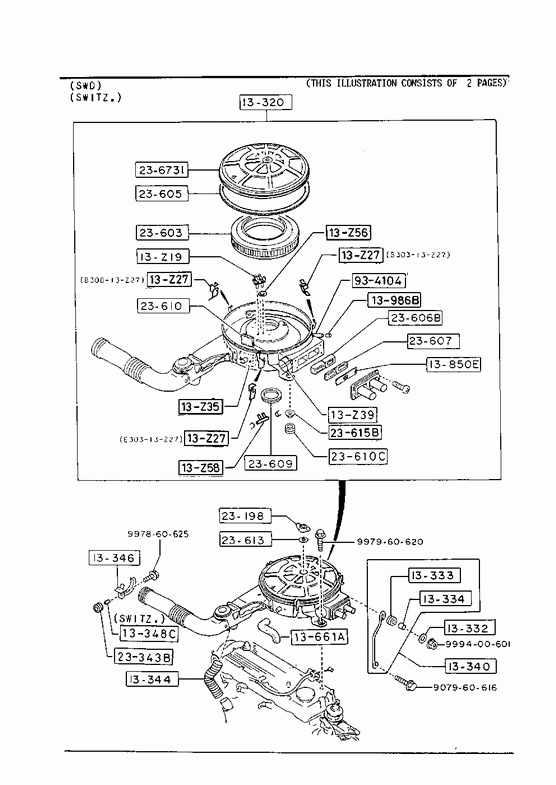

Air Cleaner
01/02 (ECE)
02/02 (SWEDEN)(SWITZERLAND)

» 13320 CLEANER,AIR

Part Number Qty. Specifications Price
B10213320B 1 C (B102-13-320C)
ECE

B34613320 1 C (B346-13-320A)
SWD
SWITZ.
€ 386,88

» 13332 WASHER

Part Number Qty. Specifications Price
285013332 1
€ 2,19

» 13333 RUBBER,INSULATION

Part Number Qty. Specifications Price
E30113333 1
€ 4,86

» 13334 SPACER

Part Number Qty. Specifications Price
E30113334 1
€ 1,70

» 13340 SUPPORT,AIR CLEANER

Part Number Qty. Specifications Price
B30120260 1 ECE

B30320260A 1 SWD
SWITZ.

» 13344 HOSE,HOT AIR

Part Number Qty. Specifications Price
B60313344 1 A (B603-13-344A)
€ 6,00

» 13346 BRACKET,FRESH AIR DUCT

Part Number Qty. Specifications Price
B30120241D 1 W/WASHER TANK 1.5L
1100
(1300>UNLEADED FUEL-ANNEX)
(1300>LEADED FUEL)
€ 4,37
B30320241 1 W/WASHER TANK 1.5L
(1300>UNLEADED FUEL-US-83)

» 13348C SPACER

Part Number Qty. Specifications Price
B63013348 1 W/WASHER TANK 1.5L
SWITZ.
€ 1,38

» 13661A HOSE,VENTILATION

Part Number Qty. Specifications Price
B60313741 1
€ 9,37

» 13850E VALVE,REED

Part Number Qty. Specifications Price
B60113850 2 SWD
SWITZ.
€ 28,48

» 13986B ORIFICE

Part Number Qty. Specifications Price
893113986 1 D=0.5 BLACK
ECE
€ 2,24
D51913986 1 D=1.2 PINK
SWD
SWITZ.
€ 3,99

» 13Z19 VALVE,INTAKE-TEMP COMPENS

Part Number Qty. Specifications Price
B30113Z19 1 SWD
SWITZ.
€ 42,84

» 13Z27 CLIP

Part Number Qty. Specifications Price
B30313Z27 1 SWD
SWITZ.

B30813Z27 3 ECE
€ 1,78
E30313Z27 1 SWD
SWITZ.

» 13Z35 CASE,BREATHER-AIR CLEANER

Part Number Qty. Specifications Price
B30113Z35 1
€ 3,55

» 13Z39 PLATE,REED VALVE-AIR CLNR

Part Number Qty. Specifications Price
B30313Z39 2 SWD
SWITZ.
€ 49,46

» 13Z56 GASKET,INTAKE-TEMP COMPEN

Part Number Qty. Specifications Price
B10213Z56 1 NON ASBESTOS
ECE
€ 1,72
B30113Z56 1 NON ASBESTOS
SWD
SWITZ.

» 13Z58 CONNECTOR,INTAKE-TEMP COM

Part Number Qty. Specifications Price
B10213Z58 1 ECE

B30113Z58 1 SWD
SWITZ.

» 23198 NUT,WING

Part Number Qty. Specifications Price
E35813Z28 1
€ 2,52

» 23343B RUBBER,MOUNTING

Part Number Qty. Specifications Price
B63013363A 1 W/WASHER TANK 1.5L
€ 4,86

» 23603 ELEMENT,AIR CLEANER

Part Number Qty. Specifications Price
B30113Z40 1
€ 9,31

» 23605 GASKET,COVER

Part Number Qty. Specifications Price
B30113Z04 1 NON ASBESTOS

» 23606B FILTER,REED VALVE

Part Number Qty. Specifications Price
E35813Z24 2 SWD
SWITZ.
€ 13,63

» 23607 GASKET,REED VALVE

Part Number Qty. Specifications Price
B60123607 2 A (E358-23-607)
SWD
SWITZ.
€ 5,38

» 23609 GASKET

Part Number Qty. Specifications Price
B30113Z13 1 NON ASBESTOS

» 23610 ELEMENT,BREATHER

Part Number Qty. Specifications Price
E30123610 1 AN (FE85-13-Z07)
€ 2,06

» 23610C INSULATOR

Part Number Qty. Specifications Price
F60123610 1 A (F801-23-610)
€ 2,75

» 23613 WASHER,SEAL

Part Number Qty. Specifications Price
E35813Z29 1
€ 2,43

» 23615B COLLAR

Part Number Qty. Specifications Price
F89013Z11 1
€ 2,21

» 236731 COVER,AIR CLEANER

Part Number Qty. Specifications Price
B30113Z01 1
€ 22,89

» 90794 BOLT & WASHER,FLANGE

Part Number Qty. Specifications Price
907960616 1
€ 2,37

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601 1
€ 1,28

» 934104 HOSE

Part Number Qty. Specifications Price
9934104750 1 L=1.75 CUT IT TO USE
€ 11,45

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860525 1

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960520 1
€ 1,33

Part Number	Qty.	Specifications	Price
B10213320B	1	C (B102-13-320C) ECE
B34613320	1	C (B346-13-320A) SWD SWITZ.	€ 386,88

Part Number	Qty.	Specifications	Price
B30120241D	1	W/WASHER TANK 1.5L 1100 (1300>UNLEADED FUEL-ANNEX) (1300>LEADED FUEL)	€ 4,37
B30320241	1	W/WASHER TANK 1.5L (1300>UNLEADED FUEL-US-83)
